Introduction

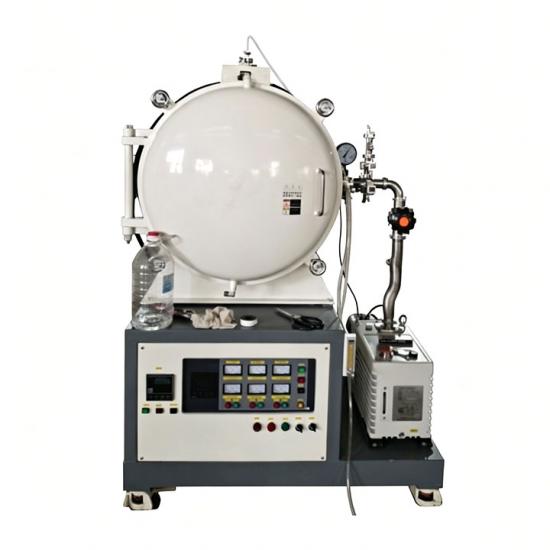

The VF series vacuum furnace is widely used for heat treatment of metal materials under vacuum, reducing and protective atmospheres. It is also suitable for high-temperature sintering and vacuum heat treatment of special materials, such as sintering of silicon carbide products. The furnace chamber is lined with alumina ceramic fiber blanket, which provides excellent energy-saving and thermal insulation performance. It features a fully enclosed vacuum tank with a water-cooling system, boasting an innovative overall structure and easy operation.
Specification
|
Model & Maximum Temperature |
Main Furnace Chamber Dimensions (Width × Height × Depth) |
|
VF-1200 Series Max. Temperature: 1200℃Operating Temperature: ≤1100℃ |
100×100×100, 120×120×130, 150×150×150, 150×150×200, 200×200×200, 200×200×300, 250×250×300, 300×300×400, 300×300×450, 400×400×600, 450×450×600, 500×500×700, 600×600×900, 800×800×1200, 900×900×1600 |
|
VF-1400 Series Max. Temperature: 1400℃Operating Temperature: ≤1300℃ |
|
|
VF-1700M Series Max. Temperature: 1700℃Operating Temperature: ≤1600℃ |
Note: Custom specifications are available. Please contact our sales team for details.
