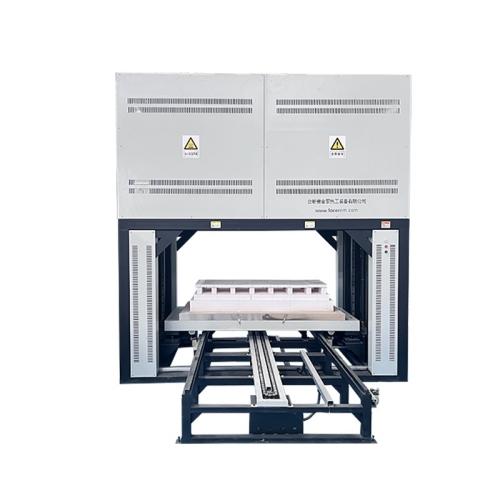

Bell Type Sintering Furnace for Batch Processing at High Temperatures

Introduction

It is a batch-type high-temperature sintering furnace with a screw lifting system for the firing platform. It is suitable for batch production sintering processes of ceramic products such as zirconia, alumina, and dielectric ceramics.

Features

Working temperatures: 1350℃ and 1550℃

Optional upgrades: Exhaust gas purification furnace, industrial control computer

Specification

Equipment Model	Chamber Size (L×W×H)	Volume	Thermocouple	Heating Element	Voltage	Power
FZL-72/16	400×400×450 mm	72 L	Type B	Molybdenum Disilicide Heating Elements	380V	40 kW
FZL-200/16	600×600×550 mm	200 L	Type B	Molybdenum Disilicide Heating Elements	380V	60 kW
FZL-320/16	1200×480×550 mm	320 L	Type B	Molybdenum Disilicide Heating Elements	380V	100 kW
FZL-430/16	1200×600×600 mm	430 L	Type B	Molybdenum Disilicide Heating Elements	380V	110 kW

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
