Electrode Slitting Machine for Cylindrical Cell Making

Features

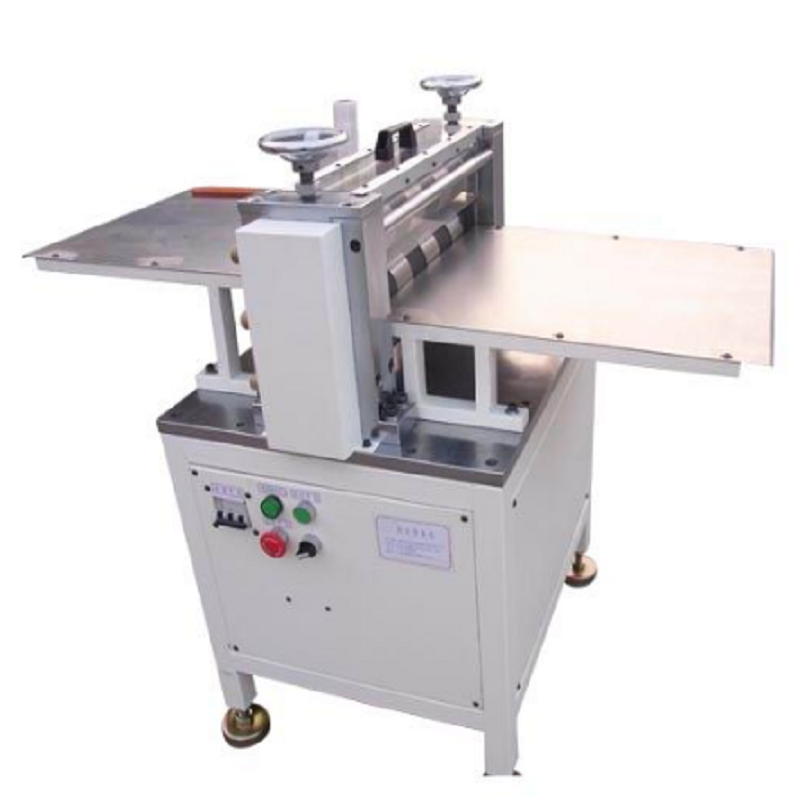

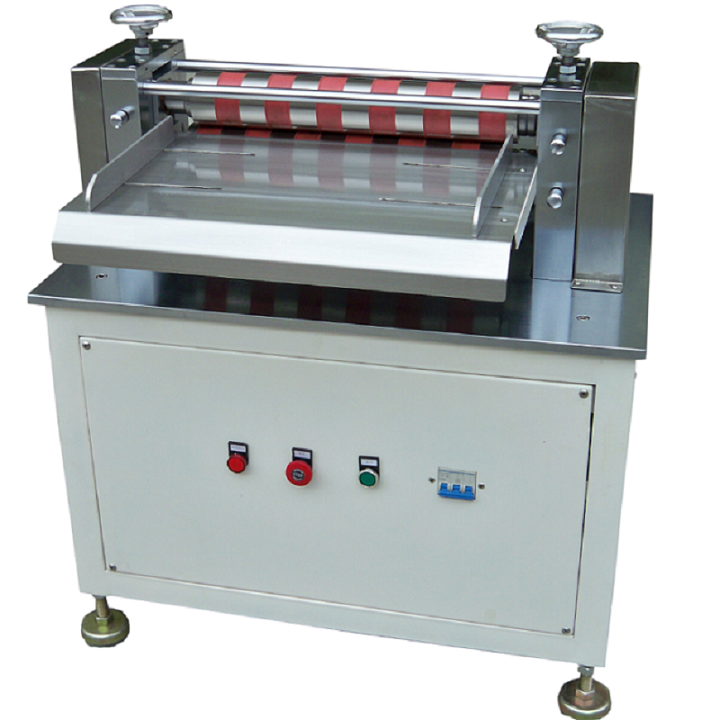

1.TMAX-MQ350A model Battery Electrode Slitting machine  is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.

2 .The slitting machine can slit electrode with width up to 400mm, and with finished slitting width from 20mm to 400mm with different model cutter blade.

3 .This equipment is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.

Specification

Model	Battery Electrode Slitting Machine
Source voltage	AC 110V-220V, Customized, 50HZ
Power	800W
Warranty	Two years limited warranty and lifetime support
Slitting mode	Single knife hobbing

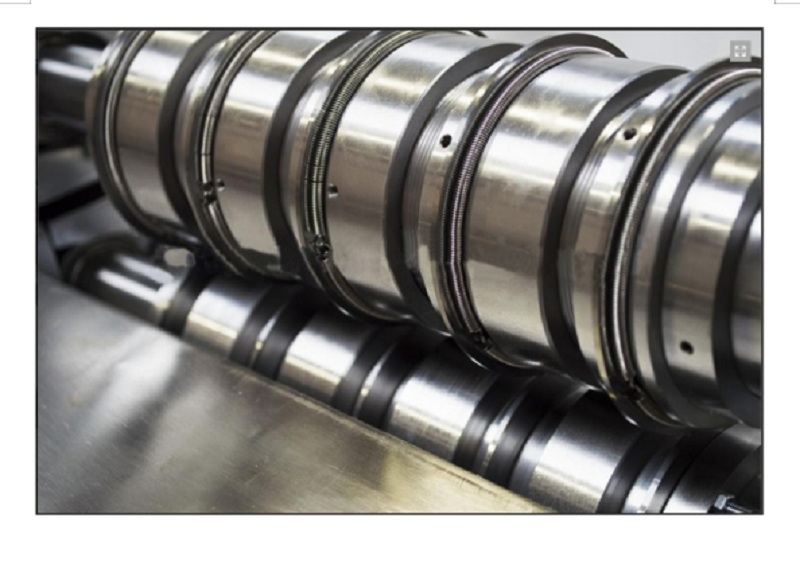

Knife type	Upper and lower round knife
Slitting width	20-500mm
Slitting thickness	100-300um
Hob diameter	Φ80 mm
Slitting speed	10m/min, Adjustable
Dimension(L*W*H)	610*610*1100mm
Weight	200kg

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
