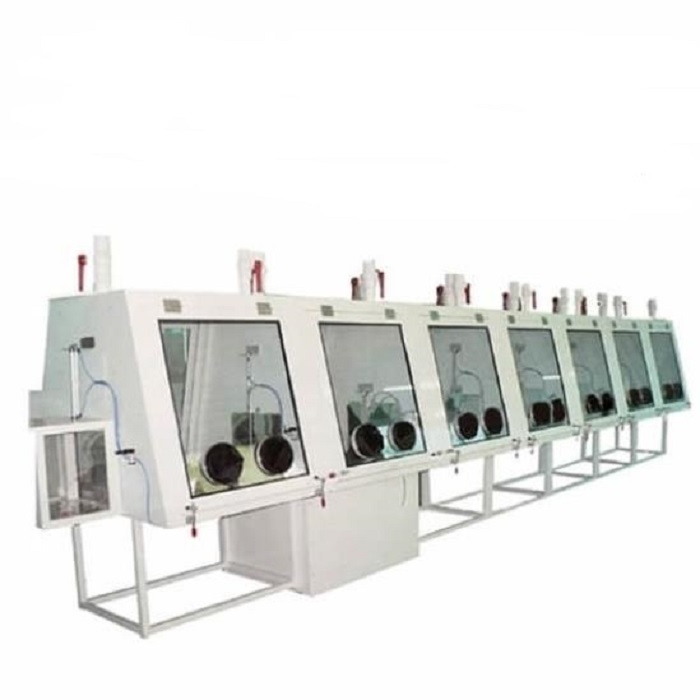

Fission Modular Design Glove Box

Functions

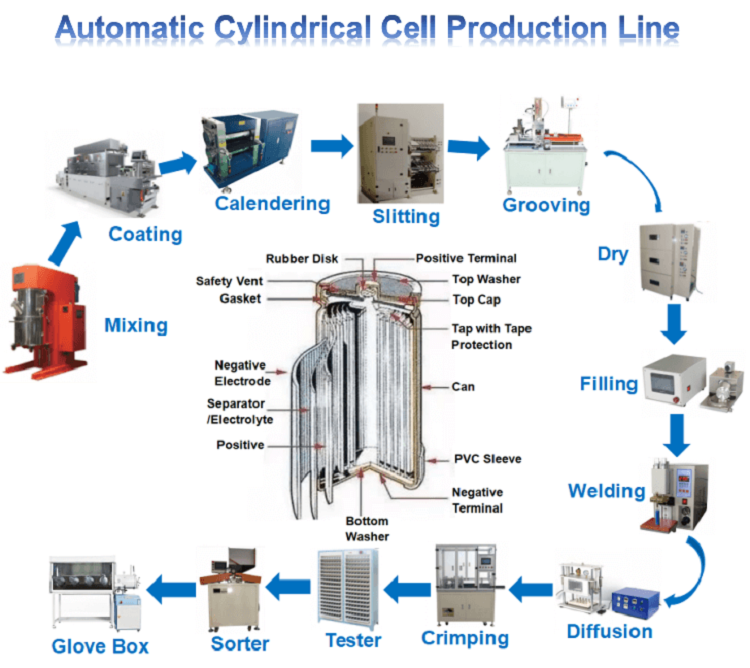

● This equipment is mainly used for drying room after the working process of the glove box production line, generally for multiple box combination form a relatively closed space, through operating the glove box to make the internal and external isolation. By connecting into the wind duct to the box body internal ventilation with low humidity wind, so as to maintaining product processing such as (inject electrolyte, standing, pre-seal) technical requirements: such as temperature and humidity, cleanliness and working environment

Features
● Glove box is modular design, can be combined freely as required.
● Feeding the material box connected to the drying room not mixing plant and support.
● Work station of stainless steel 304, anti-corrosion.
● The barrel type transition warehouse, ensure internal vacuum - 90 Mpa.
● Gas spring switch on both sides of the door, convenient maintenance and cleaning.
● Automatic electrolyte-mixing system, remove air bubbles, prevent note liquid drops.

Technical Parameters(for reference)：

ITEM	MAIN PARAMETERS
Measure	L*W*H:2000*1600*1900mm
Weight	1T
Power	AC220V ±10% 50HZ/60HZ, 1.0KW
Air source	≧0.6Mpa,30L/S
Applicable range	W≤300KG,H≤900mm

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
