Auto Crimping Machine for Sealing Cylindrical Battery Cases

Auto Crimping Machine for Sealing Cylindrical Battery Cases

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    Tmax-crimper003
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

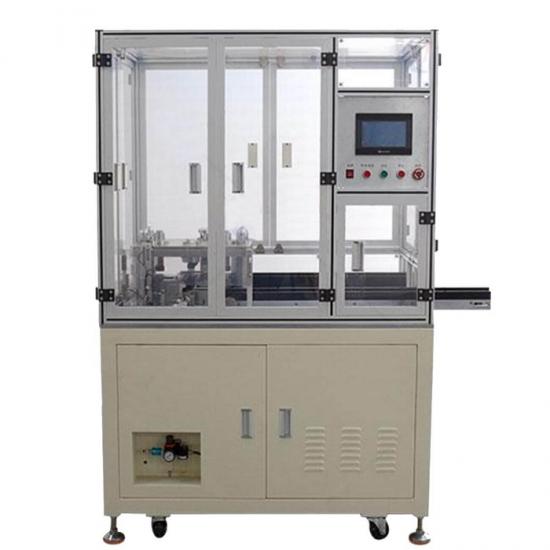

Auto Crimping Machine for Sealing Cylindrical Battery Cases



It is an auto crimper designed for sealing the cylindrical battery cases. It provides a continues workflow for case batch loading - crimping - case unloading without dedicated labor.



Advanced Features:

·        Efficient batch loading/unloading mechanism with case feeding conveyor

·        Dedicated Four-step crimping process (1st & 2nd trials for pre-deformation, 3rd trial for complete sealing and 4th trial for case consolidation) ensures the most stable & consistent sealing quality

·        Crimping speed and pressure is adjustable

·        User-friendly human-machine interface with PLC touch screen control

·        Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment



Specifications:

Working Voltage

110/220V AC, 50/60Hz, three Phase

Max. Power Consumption

4KW

Driving Force

Penumatic, 0.5 - 0.8 MPa compression gas is required

Compatibility



Standard crimping capability for 18650 case
Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.

Control



User-friendly HMI with PLC touch screen control ensures easy program setup

Crimping Force

Upto 6kgf/cm²

Productivity



·         30 pieces per minute

·         Material feeding conveyor is able to load upto 22 pcs per batch

Warranty



·         One year limited with lifetime support

·         Parts rusted without regular cleaning and maintenance are not covered

Product Dimensions

W1200mm*D690mm*H1765mm

Net Weight

800 lbs


auto crimper


cylindrical battery cases sealer


cylindrical battery cases crimper



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
