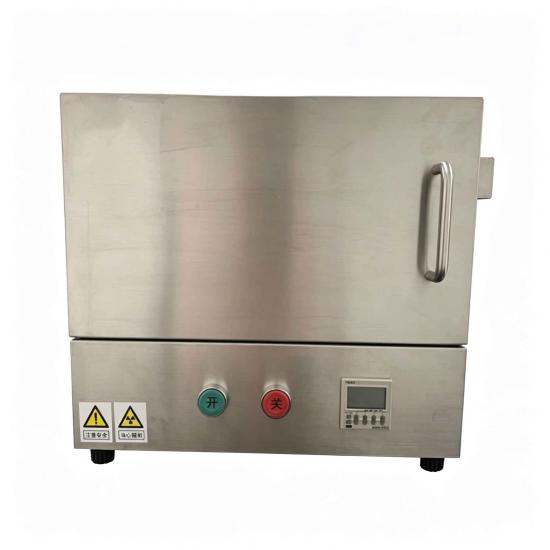

Drawer Type UV Cleaning Machine with 185 and 254nm Dual Wavelength

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-UOCM
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Drawer Type UV Cleaning Machine with 185 and 254nm Dual Wavelength

Product Introduction

Structure: With a drawer-style design, multi-level distance adjustment to meet various cleaning requirements;

2) Material: Made of stainless steel, resistant to acid and alkali, corrosion-resistant, and elegant and stylish;

3) It has an exhaust system inside, quickly discharging ozone and reducing harm to the human body;

4) Widely applied in cleaning and surface modification of organic substances on perovskite solar cells, OPV, OLED, LCD, substrates, silicon wafers, and metal sheets.
Technical Specifications

Lamp Tube	German lamp tube (imported quartz material), lifetime > 8000 hours
Power	200W
Working Spectrum	185nm+254nm
Effective Area	220220mm / 330330mm
Cleaning Time Control	0-99min99s, automatic countdown
Irradiation Height	30-100mm, plug-in type
Exhaust Function	Extraction system rapidly removes harmful gases
At 3-5mm from lamp	Average light intensity 25~32mW/cm²
Equipment Dimensions	LWH = 380340330
Equipment Weight	Approx. 15Kg
