Home Film Coating Machine

Dip Coating Machine

Desktop Dip Coater With Variable Speed (1-200 Mm/Min)

Desktop Dip Coater With Variable Speed (1-200 Mm/Min)

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-PTL-MM01
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

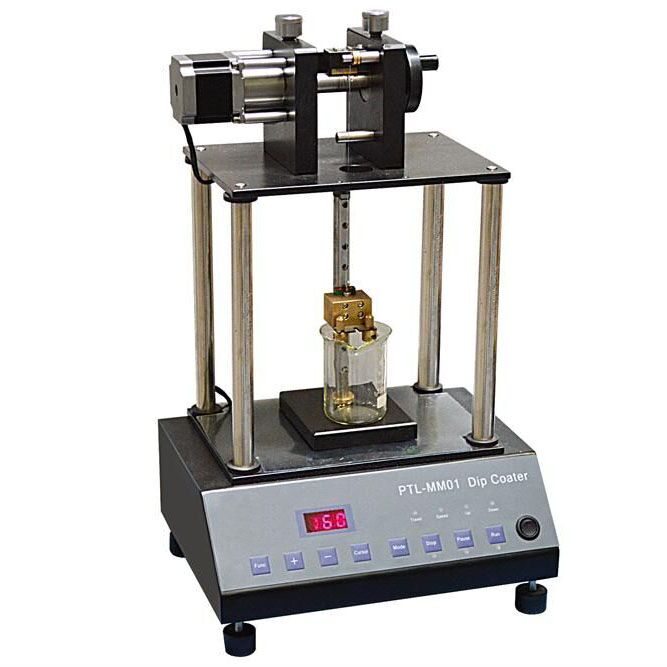

Desktop Dip Coater With Variable Speed (1-200 Mm/Min)

Specifications:

Dipping/Pulling

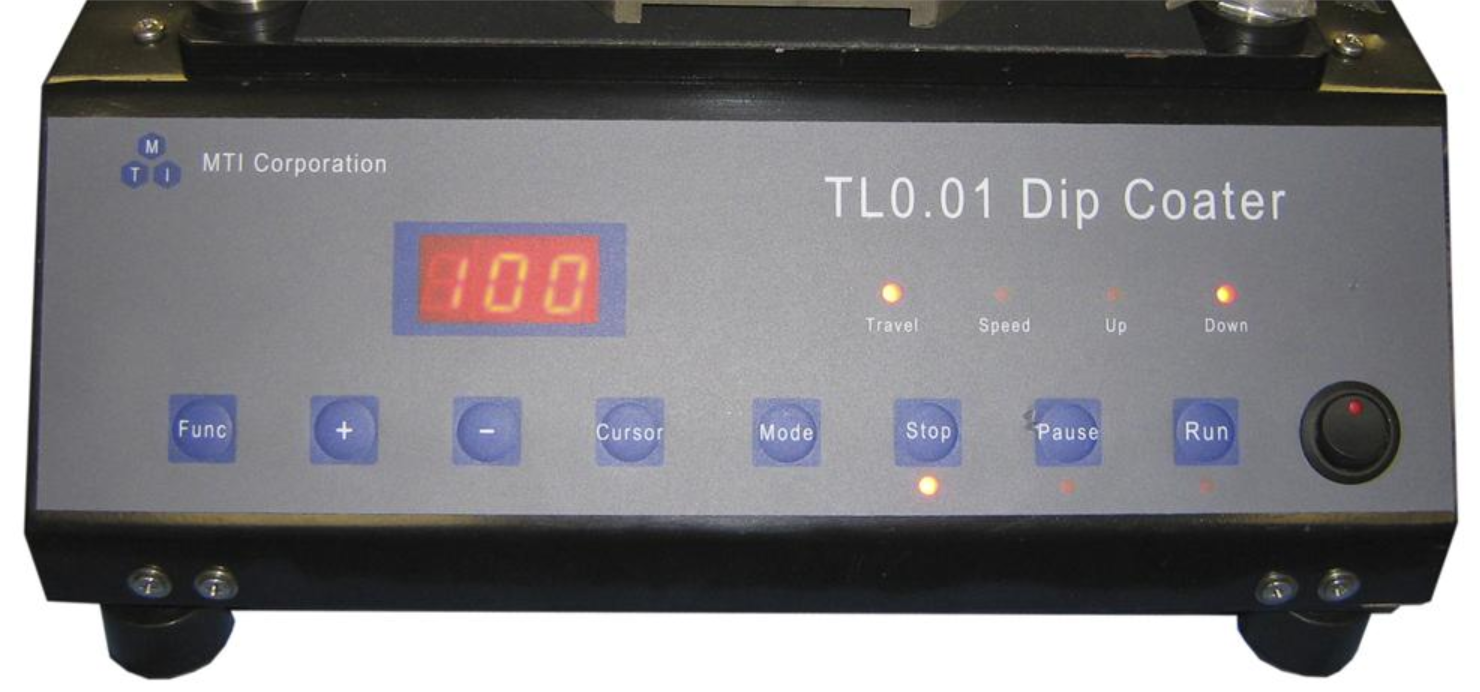

· Dipping/Pulling Speed:1-200 mm/minute Adjustable via digital panel

· Travel Distance:  0-200mm Adjustable via digital panel

Voltage

AC 110V/220V

Sample holder

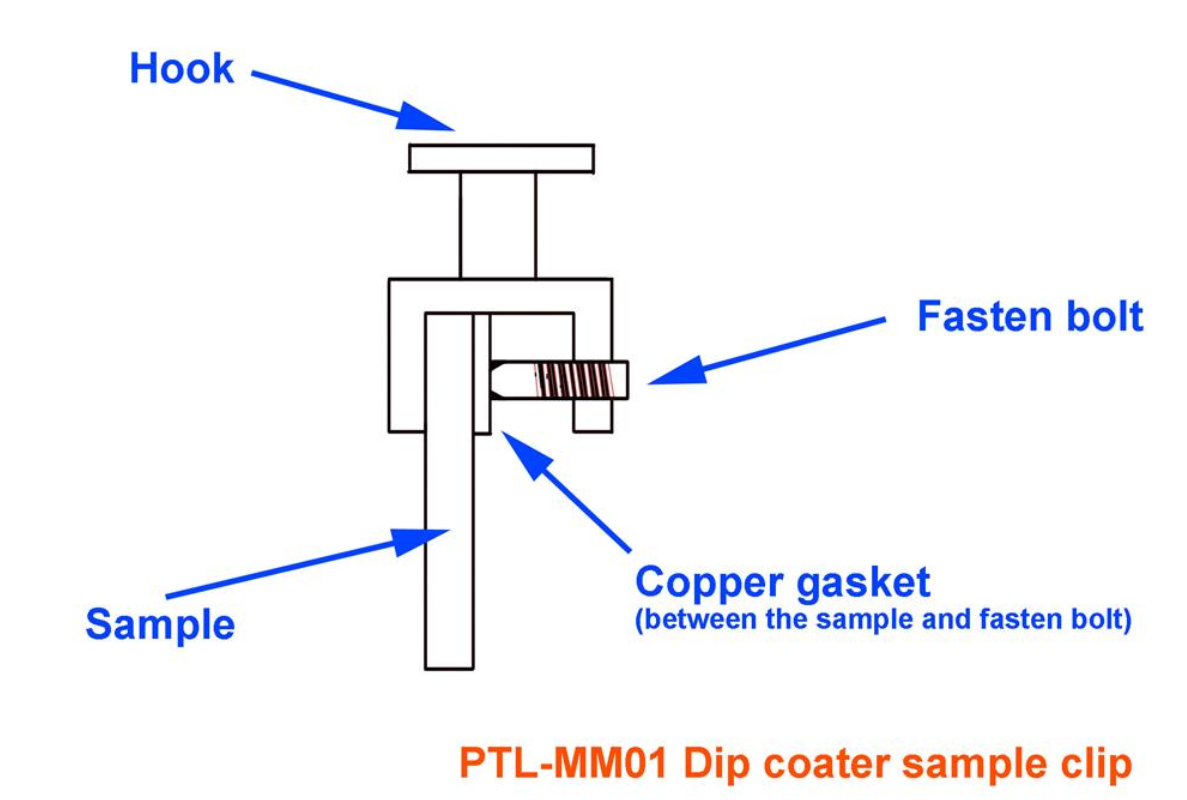

· Two screw sample clips are installed in the sample holder to carry the samples sliding up and down through one precision ball bear guide rod

· (ball bear guide rod updated from Sep. 6, 2014)

Beaker Holder

The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder

Solution container

One 150ml beaker is included

Max. Sample size

50mm(L) x 25mm(W) x 2.5mm(T)

Sample weight

Less than 250g

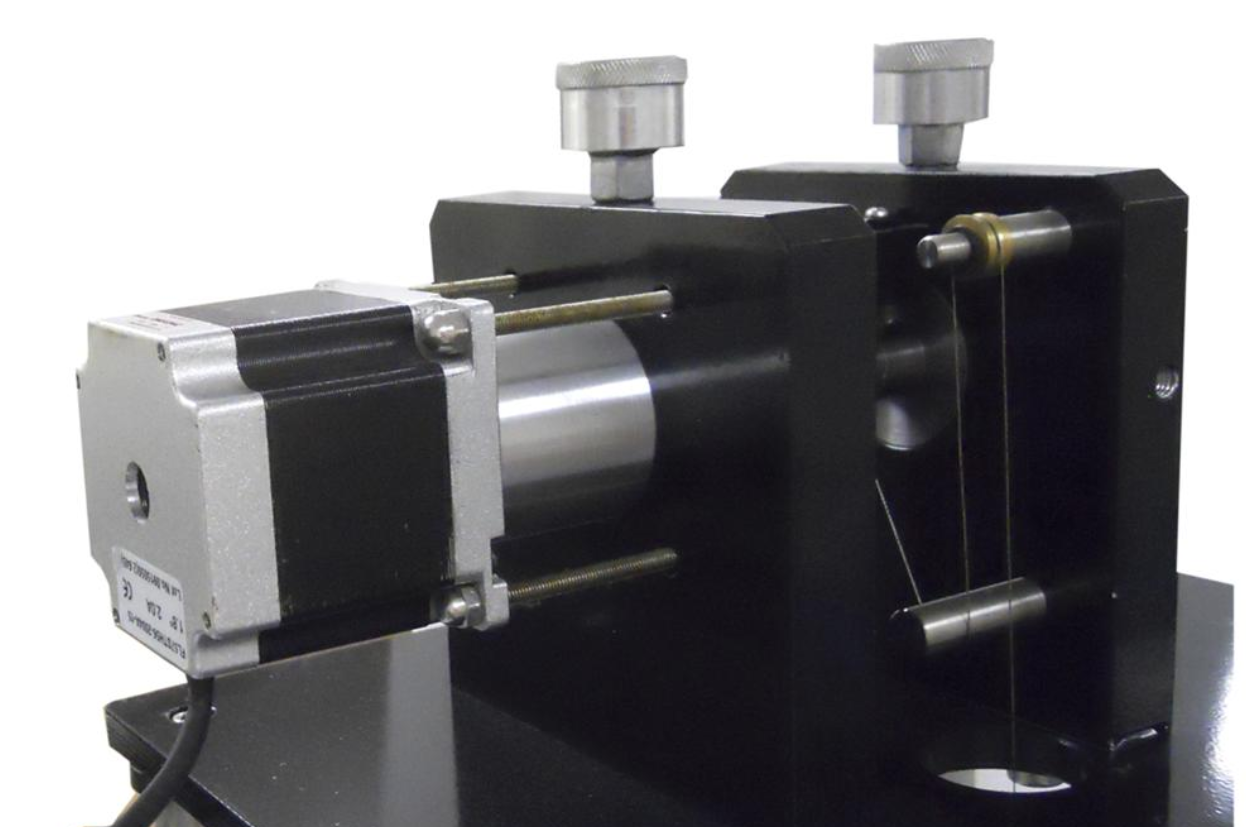

Dipping/Pulling Motor

DC Stepping motor

Product dimension

320mm(L) x 255mm(W) x 540mm(H)

Certificate

CE Certified

Warranty

One year limited with lifetime support




Application Notes

· In order to get better film coating, the substrate shall be treated by plasma cleaner

· Use ultrasonic processor to disperse nanopowder or homogenize solution to get better coating

Net Weight

45 lbs

Shipping Weight & Dimensions

67 lbs  40" x 23" x 26"

 Desktop Dip Coater



Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
