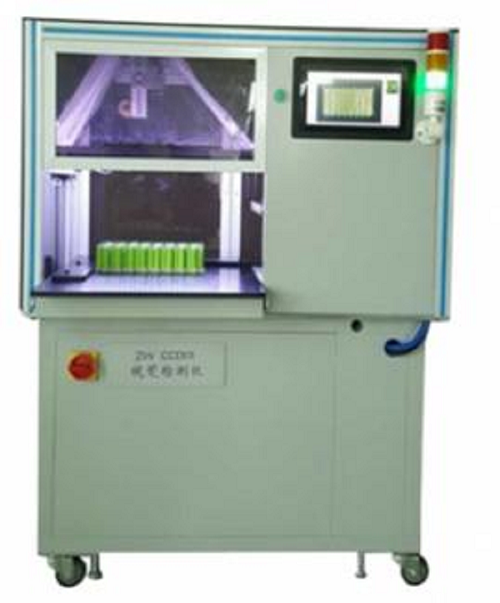

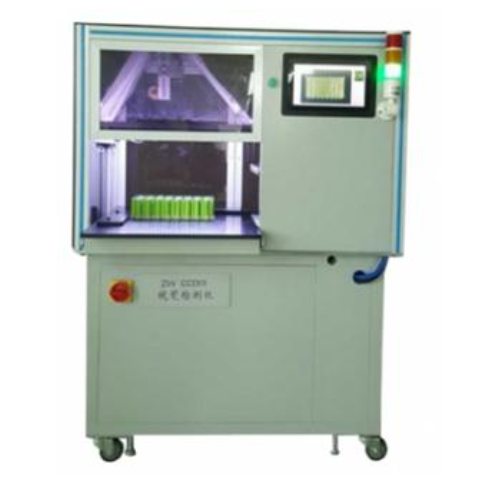

CCD Positive And Negative Electrode Battery Pack Testing Machine for Lithium Cylindrical Battery Making


1. Function description

CCD solder joint detector is an automatic equipment for lithium battery processing, which has the functions of automatic positive and negative pole detection, positive and negative solder joint detection, solder joint defect differentiation, automatic discharge, etc.



2. Process flow

Feeding and positioning of electric core → positive and negative pole detection → positive and negative solder joint detection (CCD) → NG automatic sorting → OK automatic discharging



3. Mechanical structure

1) Feed positioning of battery core

2) Polar ear leveling

3) CCD solder joint detector has high resolution image acquisition, artificial intelligence image processing and recognition technology to improve defect recognition rate

4) CCD welding detector has the advantages of fast recognition speed and high accuracy. It can select anti-static belt without damaging the battery

5) Humanized programming, easy to learn and understand.



4. Specifications

XY axis stroke

500mm (customizable)

Motor drive speed

300 mm / s

Operating system

industrial computer + intelligent camera

Transmission mode

assembly line

Driving mode

stepping motor

Repeated positioning accuracy

± 0.1mm

Detection efficiency

1s / pcs

Overall power

500W

Total weight

150kg

Maximum bearing weight

30kg

Input power

single phase AC 220V / 50Hz

Air source

0.5-0.6mpa

Size

960 * 950 * 1800mm




5.  Equipment configuration list

● touch screen: Wellington

● PLC: motion controller

● step motor: Bifu

● servo motor: Mitsubishi & lechuang

Sensors: Panasonic and OMRON

● bearing: Japan NSK

● cylinder: Adec

● switching power supply: Mingwei, Taiwan



6. Operating environment

1) Indoor temperature: - 30 ℃ ~ 50 ℃.

2) Indoor humidity: below 55%.

3) Factory site: no pollution and strong electromagnetic interference.
