Home Battery Assembly Machine Line

Cylindrical Battery Pack Assembly

30V 10A Charge 20A ​Discharge Lithium Battery Pack Tester Aging Testing Machine Battery Pack Capacity Tester

30V 10A Charge 20A ​Discharge Lithium Battery Pack Tester Aging Testing Machine Battery Pack Capacity Tester

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Item No.:

    TMAX-BT3020
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

30V 10A Charge 20A Discharge Lithium Battery Pack Tester Aging Testing Machine Battery Pack Capacity Tester



INTRODUCTION

This Battery Tester is mainly used for lithium battery charging and discharging cycle test. The test items include battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding step, the battery can be tested according to the set process.


Contact us for more details about Battery Charge Tester!

We also supply all kinds of Aging Machine,Aging Tester for you!

30V 10A 20A / 70V 5A 10A

70V 10A 20A / 85V 10A 20A

100V 10A 20A / 100V 20A 40A


The basic performance of the tester

1. Charging and discharging functions

It has the functions of constant current and voltage charging and constant current discharging, charging and discharging batteries and recording the capacity of batteries.



2. Charge-discharge interface

It fully meets the requirements of charging and discharging ports and charging and discharging ports of battery packages, namely, two wires (P + P-) and three wires (P + P - C-). At the same time, the electric tool battery (CH+P+P-) which can aging positive plate charging protection and negative plate discharging protection can be used.



3. Check Voltage Protection

By charging and discharging the batteries, it can be detected whether the charging protection and discharging protection of the batteries play a role.



4. Safety Protection

Anti-reversal protection function; upper and lower limits of voltage setting protection; safe discharge current protection.



5. Online Mode

If the instrument is single or less than 5, PC can be connected through serial port.

More than 5 computers are connected by network mode. PC computer can control less than 60 instruments by only providing a network port.



6. Control System

The software system adopts classical mature C/S mode. There are two modes of communication: serial port and network. Serial port can realize accurate communication of several instruments in short distance, and network can realize accurate communication of many instruments in long distance.



7. Management software

Based on Windows operating interface, using SQL database to store test data, it is very convenient for staff to inquire and export data online. According to the battery bar code, time and equipment number, the aging curve of charge and discharge can be viewed, and the curve can be derived at the same time.

We also supply all kinds of Aging Machine,Aging Tester for you!


SPECIFICATION

Technical Parameter



Input Power Supply

Measuring Range

5-30V



Accuracy

±(0.2% of reading +0.2% of range)





Current













Charging Range

50-10000mA

Charging Accuracy

±(0.2% of reading +0.2% of range)

Discharge Range

50-20000mA

Discharge Accuracy

±(0.2% of reading +0.2% of range)

Charge

Constant Voltage Cut-off Current

Minimum 50mA

Capacity

Accuracy

±0.1%

Power

Discharge Power

600W

Time

Inspection Time

Real-time Collection<2S



Timing Range

0-999h/step

Data Recording Interval

5S

Middle Machine Version

1:1 series

Number of Passages Per Cabinet

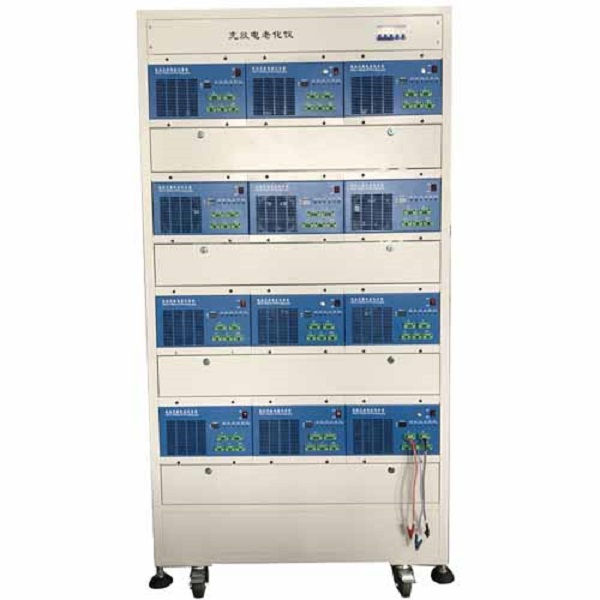

12 channels, four rows and three column



Charge



Charging Mode

Constant Current and Constant Voltage Charging

Cut-off condition

Voltage, Current, Relative Time, Overcharge Protection

Discharge

Discharge mode

Constant current discharge



Cut-off condition

Voltage, Relative Time and Over-discharge Protection

Loop

Cyclic measurement range

1-999 times



Single cycle step number

100

Voltage and Current Detection Sampling

Four-wire sampling

Data Base

Using SQL database to manage test data

Upper computer communication mode

Based on TCP/IP Protocol/Serial Port

Data Output Mode

EXCEL/TXT/Chart

Communication Interface

Mesh port

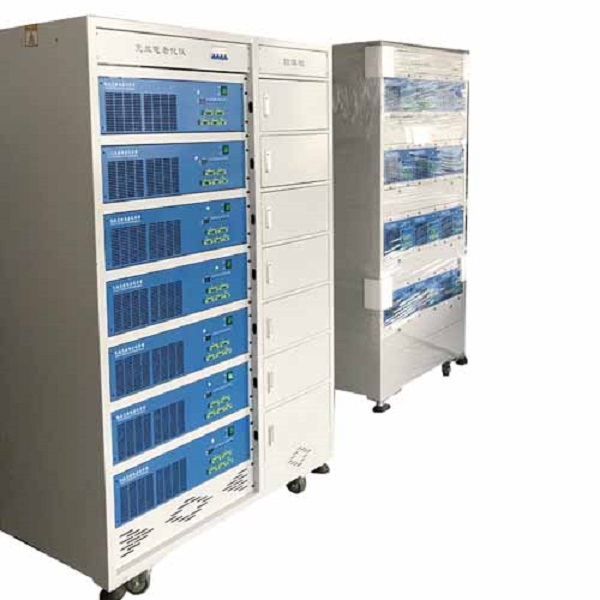

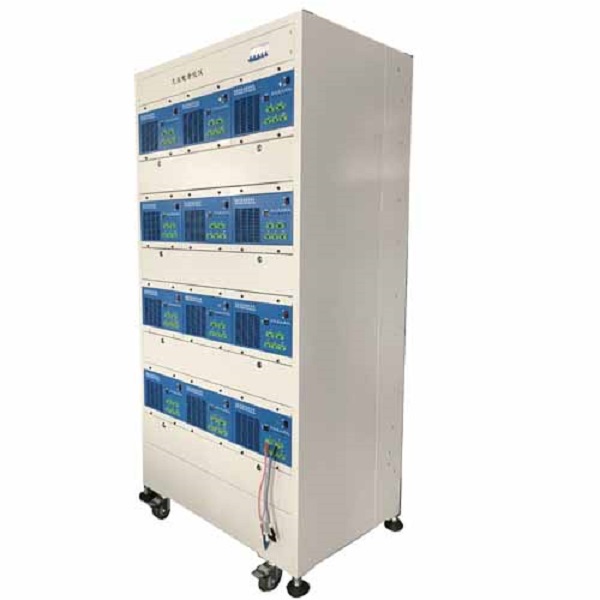

Product Images





 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
