5000A / 8000A Manual Inverter DC Spot Welding Machine Nickel Plated Strip Welder for Battery Pack Welding

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-DC-01
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

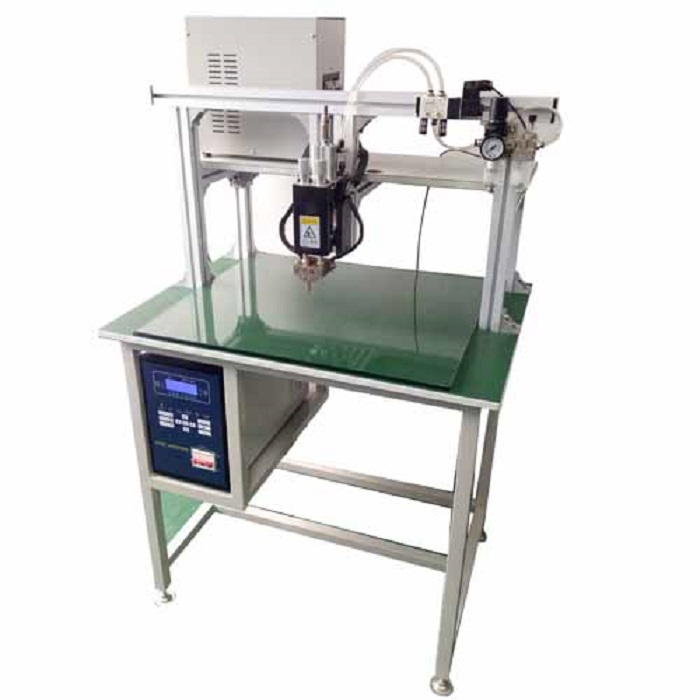

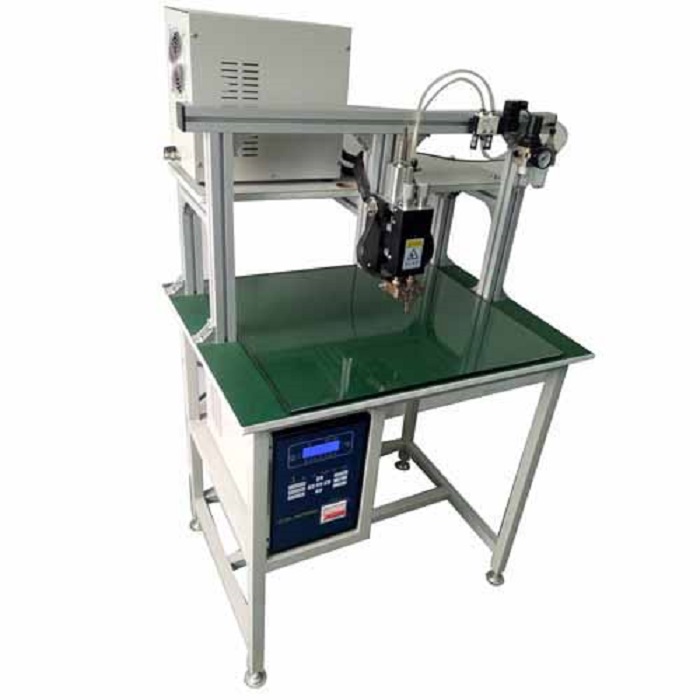

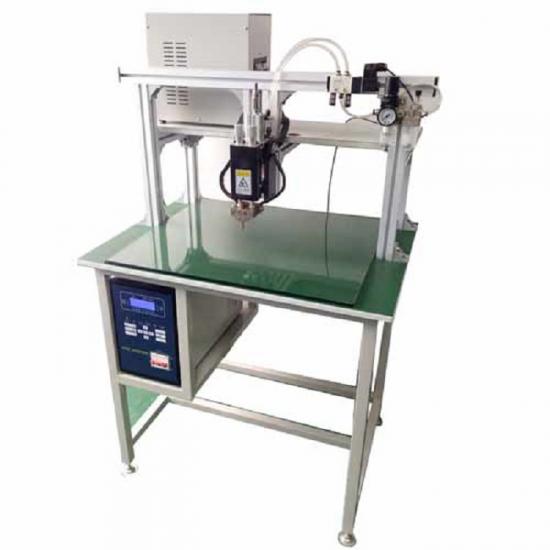

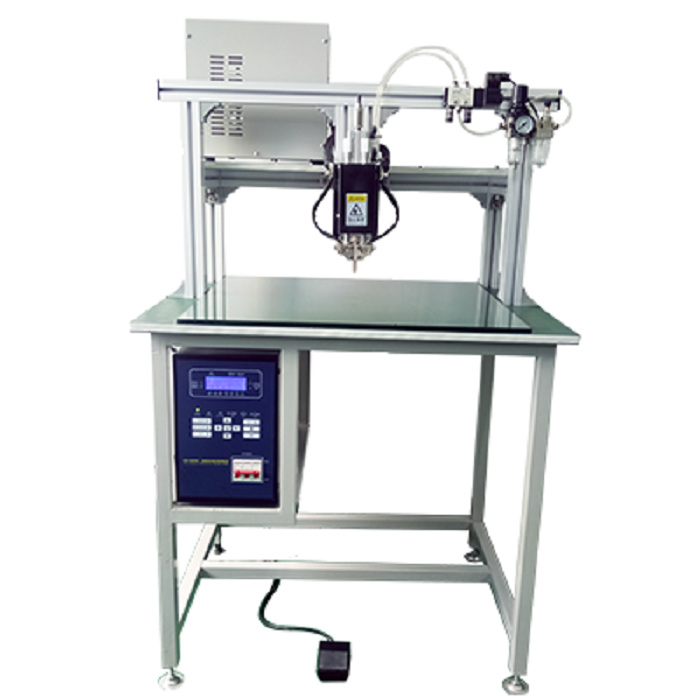

5000A / 8000A Manual Inverter DC Spot Welding Machine Nickel Plated Strip Welder for Battery Pack Welding

FEATURE

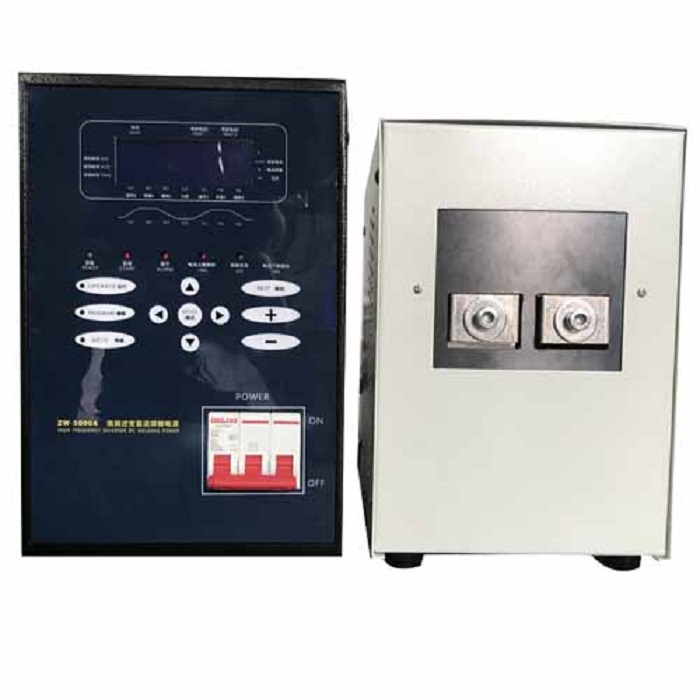

The equipment includes inverter, welding controller and intermediate frequency transformer. It adopts modular design, selects imported components and is equipped with the company's advanced microcomputer controller, and cooperates with 2 sets of analog/digital conversion circuits to change the power supply voltage. Temperature changes are automatically controlled to maintain a stable output.

The spot welding machine is widely used, and the welding transformer has a small volume and a large output energy.

ADVANTAGE

1.The current is rectified in order to supply DC welding current.

2.It helps to reduce the energy of iron core material.

3.Transform the electric energy into DC power

4.DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged.

Get the best prices on electrode welding machine from Tmax.

SPECIFICATION

Model	TMAX-DC-01
Transformer Maximum Output Power	35KVA
Maximum Output Short Circuit Current	5000A
Welding Conditions	8
Open Circuit Voltage	10V
Control Mode	Constant Current Control
Input Frequency	AC 220V±10% 50Hz
Weight	55KG
Welding Thickness	Maximum thickness of parallel welding:0.03mm~0.5mm
Maximum Thickness of Upper and Lower Butt Welding	0.3mm+1mm
Size	185x280x420mm

Current	5000A	8000A
Input Power	AC 380V±10%, 50Hz±2Hz	AC 380V±10% , 50Hz±2Hz
Rated capacity	25KVA	35KVA
Maximum output short circuit current	5000A	8000A
Output current range	800-5000A	500-8000A
Output voltage	10V	10V
Inverter frequency	4KHz	4KHz
Welding time	1.0ms—99.0ms adjustable,accuracy:0.1ms	1.0ms—99.0ms adjustable,accuracy: 0.1ms
Welding pulse section	2	3
Welding cycle period	1	11
Working table size	600mm*800mm	600mm*800mm
Welding range	580mm*580mm	580mm*580mm
Adjustable height range of welding head	10-150mm	10-150mm
Welding needle specification	1.5mm-3mm/6mm optional	1.5mm-3mm/6mm optional
Adjustable distance between welding needles	0-10mm	0-10mm
Adjustable stroke of cylinder	5-30mm	5-30mm
Specification of secondary discharge cable	95mm²	95mm²
Cable length	500mm	500mm
Adjustable range of welding head pressure	1-5kg	1-5kg
Welding speed	0.5-0.8s/point	0.5-0.8s/point
Plane double needle welding thickness	0.08-0.25mm plated nickel/pure nickel	0.08-0.3mm plated nickel/pure nickel
Welding thickness of convex point and flat needle	0.15-0.3mm plated nickel/pure nickel	0.2-0.5mm plated nickel/pure nickel
Number of settable specifications	8	99
Display	LED	TFT 800X480 Capacitive touch screen
Over limit alarm setting mode	Current setting	Current setting + current wave monitoring
Welding mode	Single welding	Single or double welding
control mode	PWM	PWM
Control way	1200V 200A IGBT	1200V 300A IGBT
Control mode	Constant current	Constant current and constant voltage
Cooling	Forced air cooling	Forced air cooling
Weight	35KG	40KG
Weight of main machine	430L185W280H mm	455L205W315H mm
Transformer size	265L180W255H mm	475L200W290H mm
Whole main size	800Lx600Wx1200H mm	800Lx600Wx1200H mm
Welding application	Battery connection piece, hardware sheet, wire harness, terminal block, etc	Battery connection piece, hardware sheet, wire harness, terminal block, etc
