Benchtop Dip Coating System Coater With Infrared Heating

Product Description

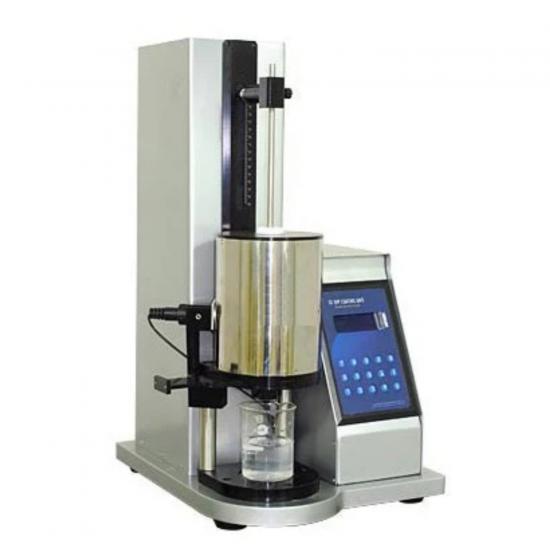

The LITH-KJ01H2 dip coating system with integrated infrared dryer minimizes operator involvement through microcontroller-controlled precision operation. A servo motor-driven linear stage ensures vibration-free and silent performance for uniform substrate coating.

Operation Modes

· Manual Mode: Front panel with LCD display and keypad for parameter input

· PC Mode: Full system control via included software with programmable memory

Key Features

· Infrared drying system (ambient to 200°C max)

· Dual operation modes (manual/PC control)

· Program memory for process storage

· Designed for physics, chemistry, and biotechnology applications

Technical Specifications

Category	Specification
Model Number	LITH-KJ01H2
Actuator	Servo motor
Drive Mechanism	Lead screw
Coating Speed Range	2-9000 μm/s
Power Requirements	208-240VAC, 50/60Hz
Max Power Draw	600W (with heater)

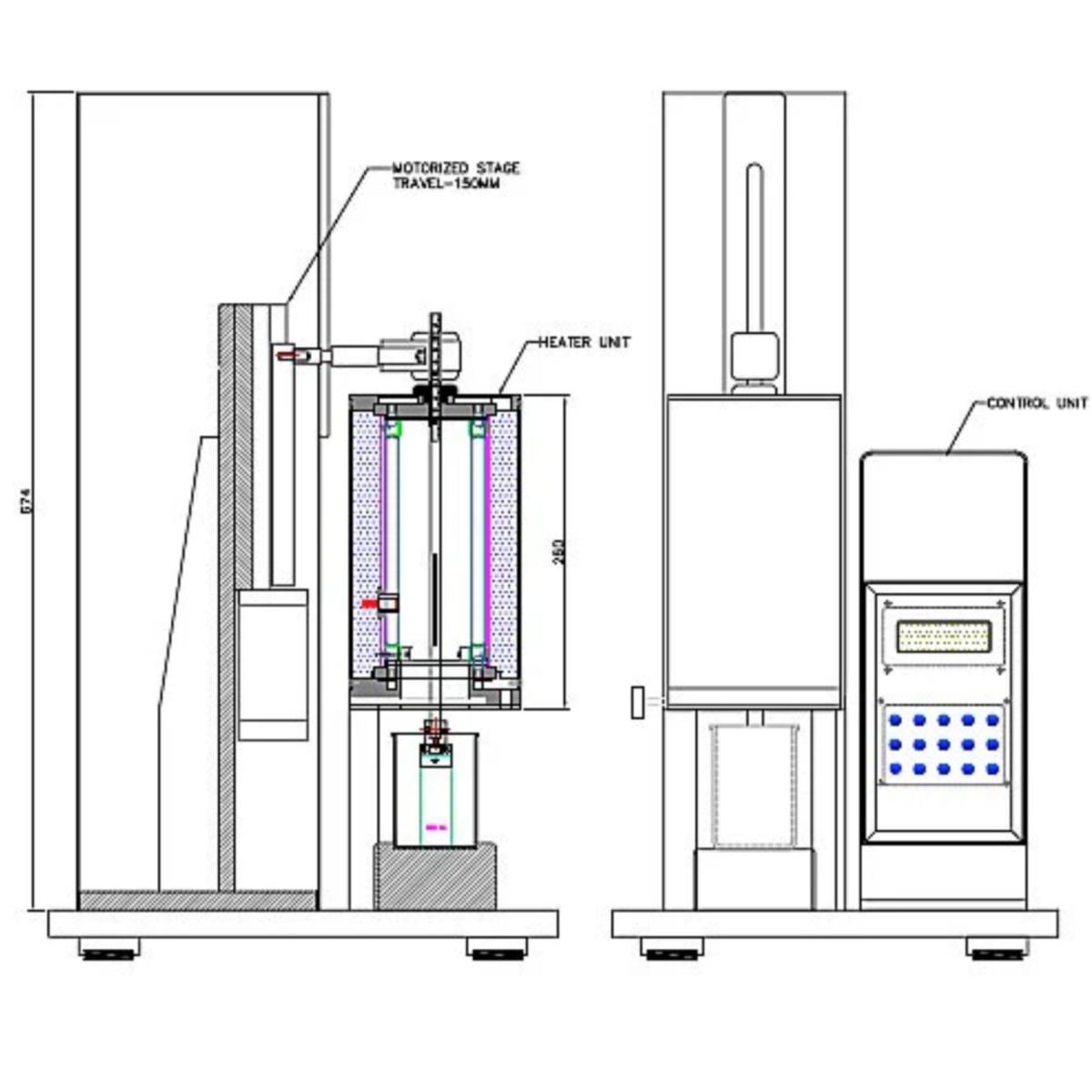

Max Stroke Length	150mm
Max Substrate Size	40×50mm
Temperature Control	PID digital controller (±1°C accuracy up to 200°C)
Control Interface	LCD display with 5-program memory
Data Port	RS232 for PC connection
Certification	CE Certified

Standard Configuration

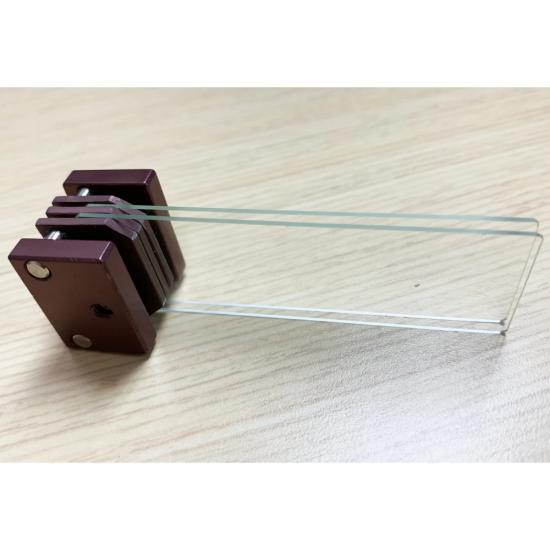

· Dual substrate holder

· Operation software included

Optional Accessories

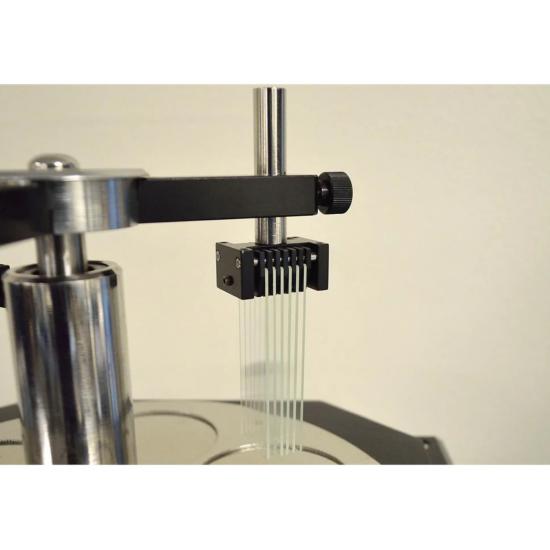

· Multi-sample holder (additional cost)

Application Guidelines

· Plasma cleaning recommended for optimal coating quality

· Coating thickness calculable via Landau-Levich equation:
h = coating thickness, η = viscosity, γLV = liquid-vapor surface tension,
ρ = density, g = gravity

· Ultrasonic dispersion recommended for nanomaterial solutions

· Compatible with gloveboxes for controlled atmosphere operation

· Suitable for cleanroom use with bench-top fume hood (carbon-filtered)
