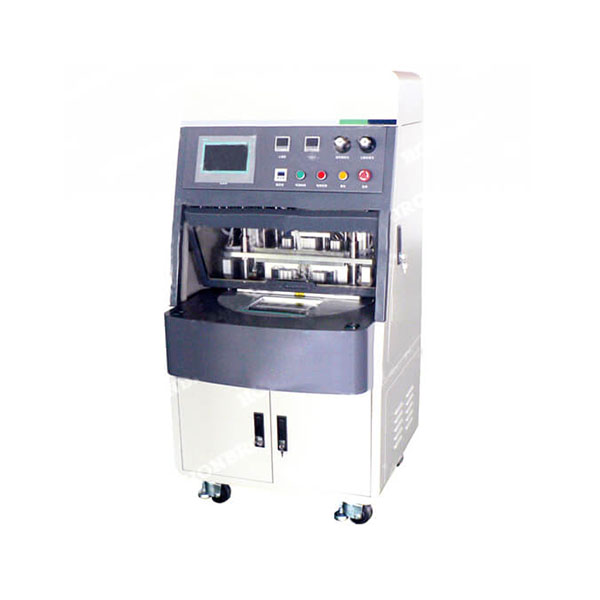

Automatic Vacuum Sealing Machine For Polymer Power Battery Side Sealing

Functions
Suitable for soft package power battery air pocket prick, pumping air into vacuum state, encapsulation.

Features
● Double station rotating disc feeding, load/unload and encapsulation simultaneously;
● Turntable with cavity, inferior vena closed form an airtight seal is putting on cavity body, meet the demand of vacuum encapsulation electrolyte separate barrels, optimization of the electrolyte to eliminate channel, reduce the pollution of vacuum source;
● PLC automatic control, touch screen realization man-machine dialogue, easy to operate;
● The function of output statistics, has manual and auto operate function, fault alarm function;
● Presetting encapsulation of temperature, pressure, packaging time, extraction time, temperature abnormal alarm function;
● Equipped with upper head repair cylinder cavity, maintenance on head part and the bayonet all dew outside of the cavity, maintenance is convenient;
● Feeding turntable driven by precision CAM roller segmentation, positioning accuracy ≤30 ;
● Head up and down parallel: ± - 0.01 mm; the degree alignment can be adjusted;
● The top press plate use cylinder or spring pressure can be obtained.

More info about vacuum sealer you can visit our site directly.

Technical Parameters(for reference)：

ITEM	HBS-DGS200(TY/QY)	HBS-DGS280(TY/QY)	HBS-DGS280(TY/QY)
Measures	L*W*H640*640*1500mm	L*W*H640*640*1500mm	L*W*H640*640*1500mm
Weight	About 500Kg	About 600Kg	About 800Kg
Power	AC380V/50Hz, 2.5KW	AC380V/50Hz, 2.5KW	AC380V/50Hz, 2.5KW
Air source	≧0.6Mpa,20L/Min	≧0.6Mpa,28L/Min	≧0.6Mpa,35L/Min
Vacuum source	≤-0.095Kpa,200L/Min	≤-0.095Kpa,280L/Min	≤-0.095Kpa,350L/Min
Applicable range	L:40mm-180mmW:35mm-120mmT:2.0mm-10mm	L:80mm-270mmW:80mm-195mmT:3.0mm-15mm	L:250mm-300mmW:150mm-200mmT:3.0mm-15mm
Capacity	2.5-3PPM	2.5-3PPM	2.5-3PPM
Action	≧99%	≧99%	≧99%

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
