Auto Vacuum DC Sputtering Targets Coating Machine Coater for Battery and Thin Film

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-SD800
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Auto Vacuum DC Sputtering Targets Coating Machine Coater for Battery and Thin Film

Introduction

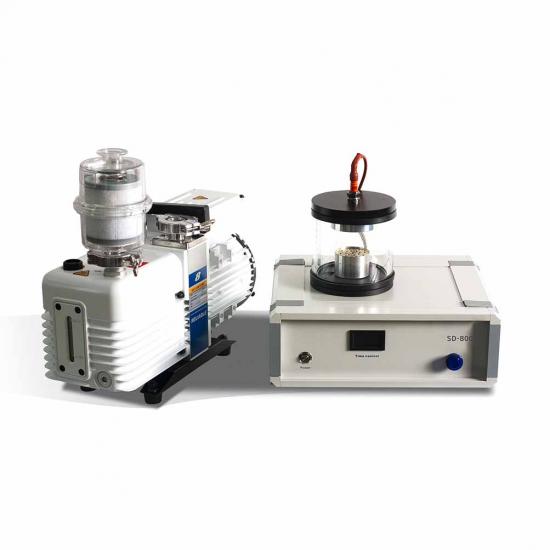

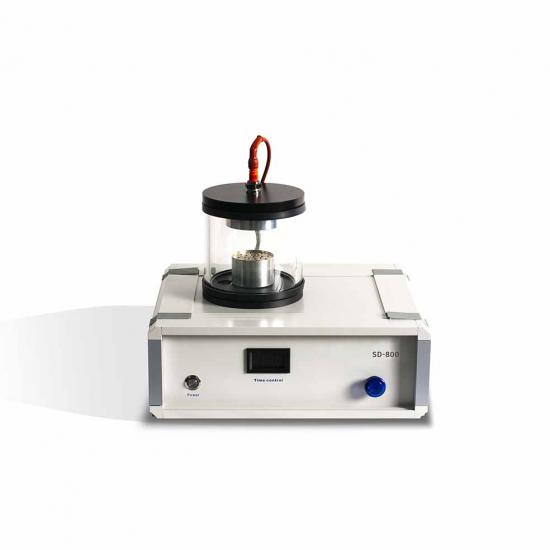

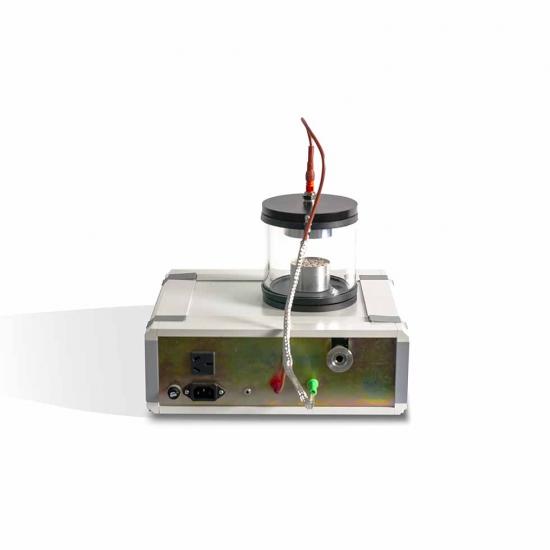

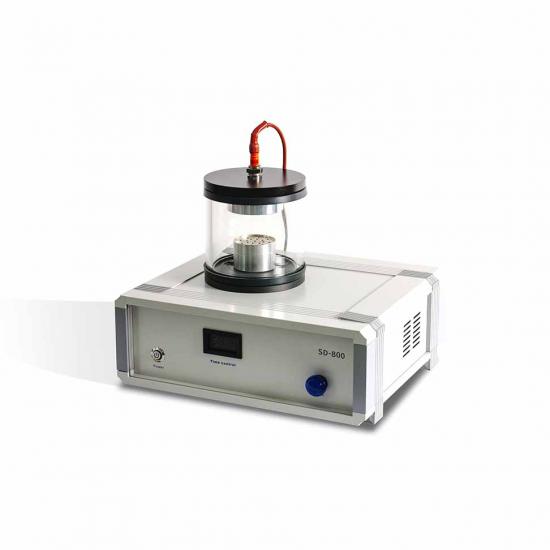

Compact Automatic Ion Sputtering Coater (SD800 Model) is ideal and designed for lab SEM sample preparation. It is widely used to coat non-conductive SEM samples with Au for better imaging. It is also excellent for surface treatment.

Working vacuum pressure can be achieved quickly when using proper vacuum pump. It generates much less heat. It is user friendly and easy to operate using Time Control.

Vacuum pump is included.

Parameter

Vacuum pump set	(Oil required) rotary vacuum pump
Rotary pumping speed	50 Hz : 8m³/h (2.2 L/s)/ 60 Hz : 9.6m³/h (2.6 L/s)
Vacuuming time	< 2 Min
Chamber size	Φ115*100mm (height) scratch resistant quartz glass
Magnetron target source	Target size φ 50*0.1mm(Au)/target source: Au,Ag,Pt
Operation method	Instruction Manual
Weight/size	40kg/307mm length x 260mm wide x 260mm high
Power supply	AC 110V 60Hz or AC 220V 50Hz
Power consumption	<1500W
Cooling method	Air cooling
Warranty	One year limited warranty with lifetime product support
