Affordable Dip Coater Machine Price With Millimeter-level Precision

Product Overview

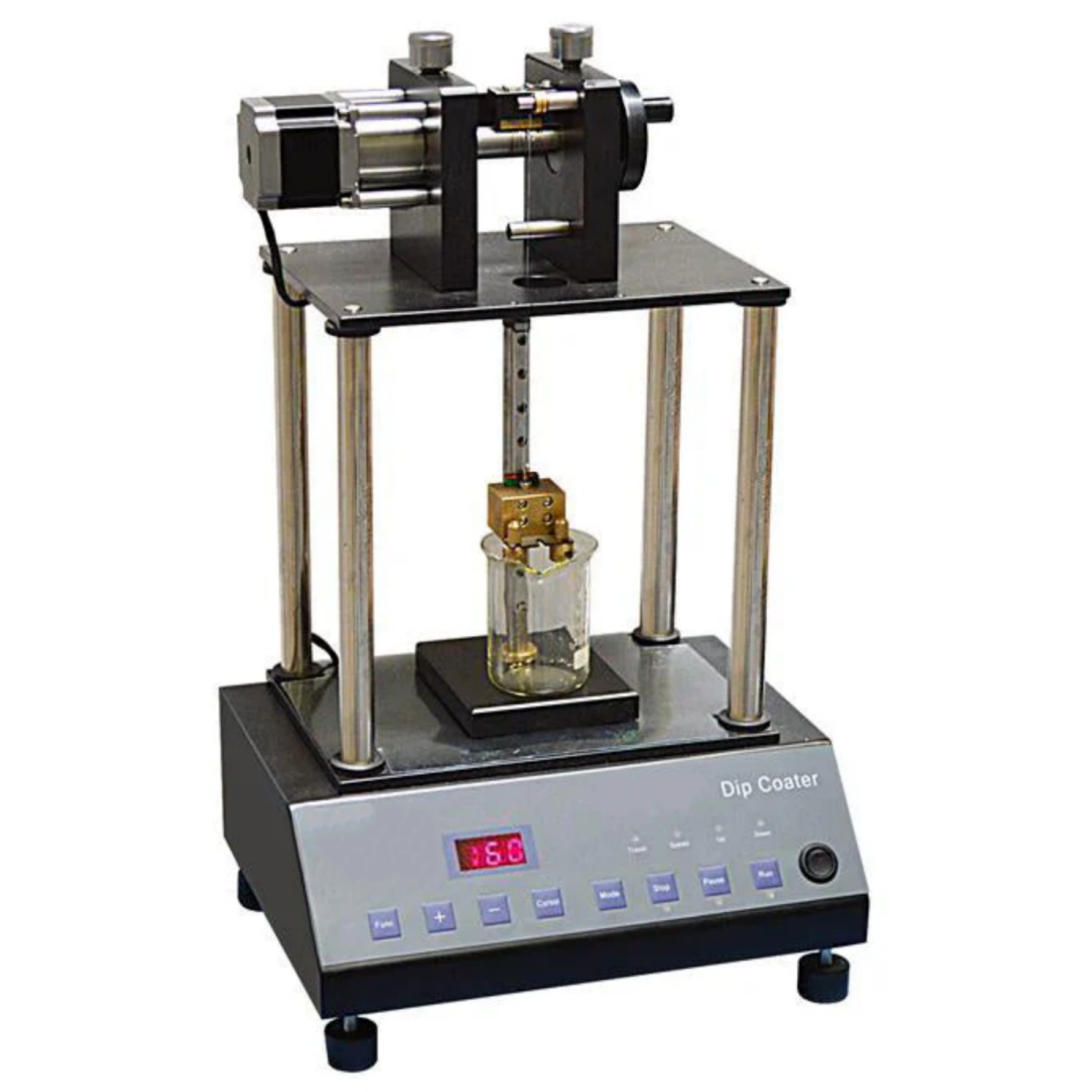

The TMAX-KJ01A Dip Coater is a millimeter-level precision lifting device designed for liquid-phase thin-film deposition research on substrates. This CE-certified equipment is essential for laboratories and research institutions specializing in liquid-phase film growth.

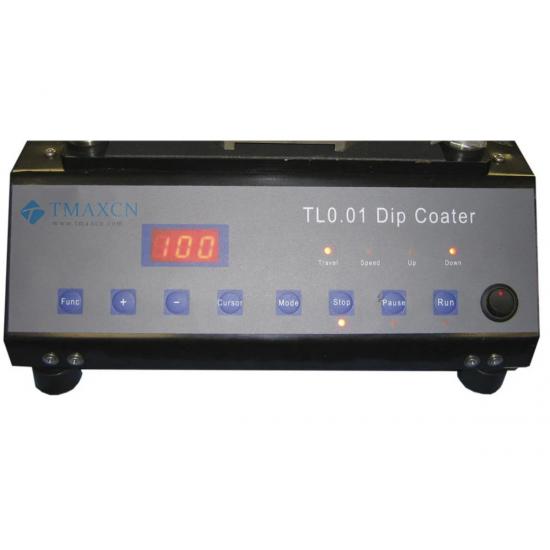

The system features a proprietary high-precision microcontroller for actuator control, allowing:

· Manual adjustment of lifting direction

· Programmable lifting speed (1–200 mm/min) and stroke

· Smooth and precise vertical motion

The TMAX-KJ01A employs wire-guided lifting to immerse samples in liquid-phase coating materials for controlled durations, enabling uniform film deposition. Operation modes include:

· Manual immersion + automatic withdrawal

· Automatic immersion + manual withdrawal

Note:

· Standard operation at room temperature (ambient conditions).

· For heated/thermostatic applications, the TMAX-KJ01B model (with integrated drying chamber) is available to maintain stable process temperatures.

Key Advantages
✔ Compact, space-saving design (320×260×560 mm, ≈18 kg)

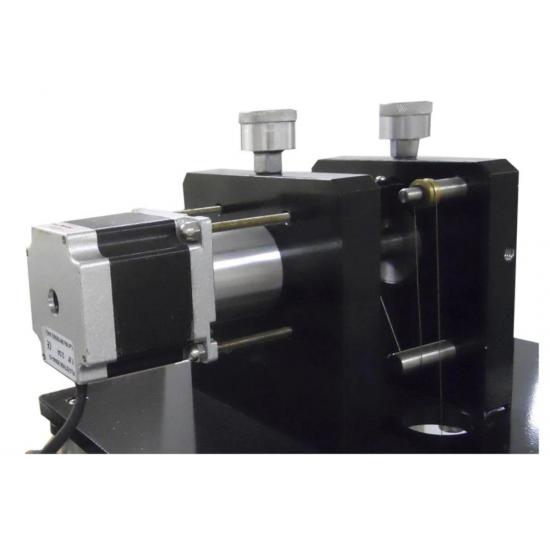

✔ High-precision stepper motor with wire-conduction damping technology
✔ Intuitive operation, ideal for beginners
✔ Cost-effective solution for academic and industrial R&D

Technical Specifications

Adapter Specifications (Included):

· Input: AC 100–240V, 50/60Hz

· Output: DC 24V, 3.75A
※ Actual device ratings subject to rear label.

Customization Option:
AC 110V, 50/60Hz thermostatic drying chamber (upon request).

Standard Accessories

Optional Accessories

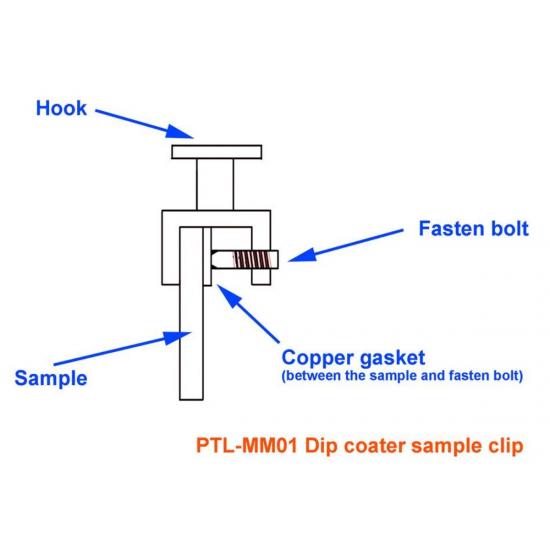

· Quick-release sample clamp

· Additional lifting wires

Compliance & Applications

· Certification: CE marked

· Typical Users: Universities, research institutes, industrial labs for thin-film R&D
