Item No.:
TMAX-PC-60FSPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
15 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

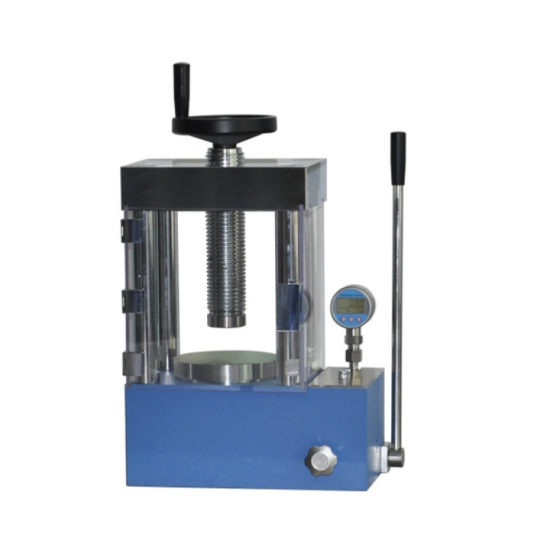

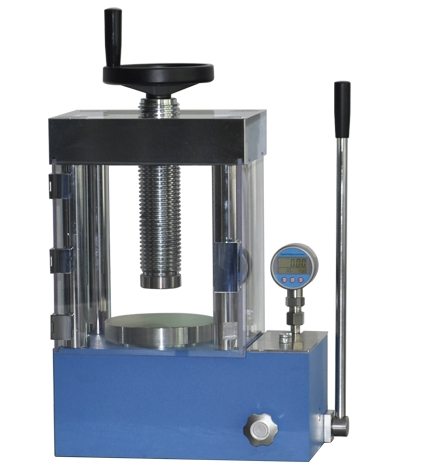

One year limited warranty with lifetime technical support60T Manual Digital Display Tablet Press with Safety Cover
|
Instrument model |
PC-60FS |
|
Pressure range |
0-60T(0-34MPa) |
|
Piston diameter |
Chrome plated cylinderФ150mm(d) |
|
Integral structure |
No sealing connection, oil leakage reduced |
|
Pressure gauge |
Digital display 0.00-60.00 MPa |
|
Maximum pressure |
50mm(T) |
|
Protective cover |
Plexiglass |
|
Pressure stability |
≤1MPa/10min |
|
Workbench diameter |
Ф160mm(D) |
|
Number of columns |
Four |
|
Working space |
185X250mm((MXN) |
|
Dimensions |
405X240X565mm(LxWXH) |
|
Weight |
120Kg |
|

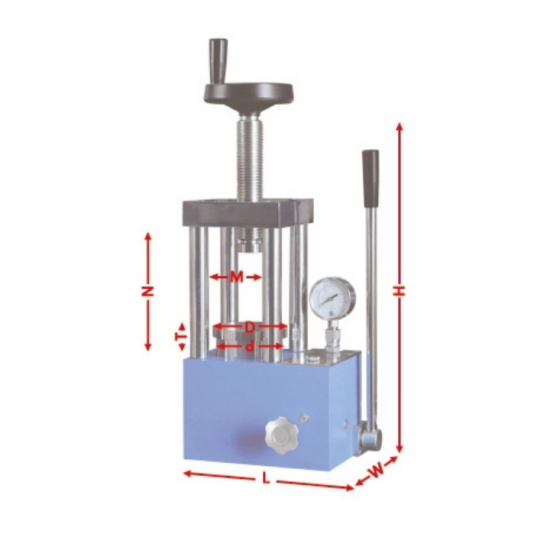

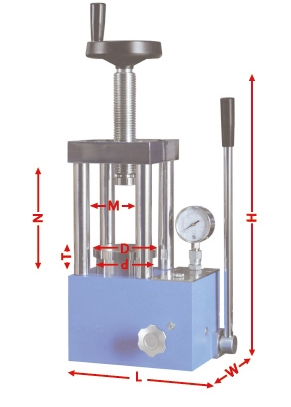

Diagram of hydraulic powder press size |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
