2T Lab Mini Manual Hydraulic Press for KBR Potassium Bromide Tablet Production

2T Lab Mini Manual Hydraulic Press for KBR Potassium Bromide Tablet Production

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-SYP2T
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

2T Lab Mini Manual Hydraulic Press for KBR Potassium Bromide Tablet Production

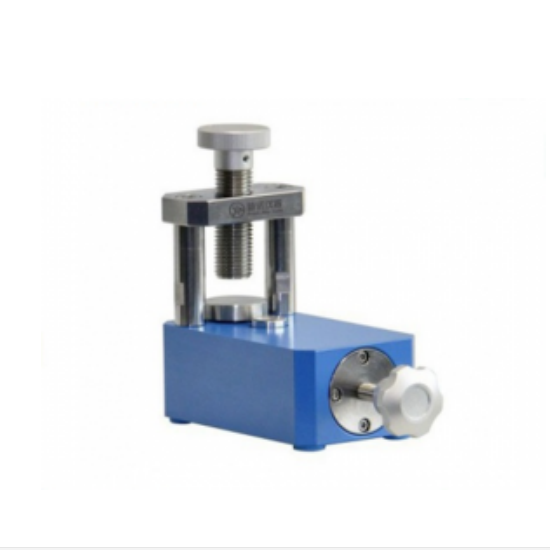

SYP-2T Infrared Mini Tablet Press: Specially used for KBr potassium bromide tablet production. It is an extremely easy-to-use, portable experimental hydraulic press, which can easily complete the pressing of infrared spectrometer Φ7mm (KBr) potassium bromide The sample preparation of the tablet has excellent test results. After thousands of comparison tests, the Φ7mm, Φ13mm and larger KBr samples produced by this type of mini tablet press have consistent test results and can replace imported similar products.


Specification

Model

SYP-2T

Pressure range

0-2T(0-30MPa)

Piston diameter

Chrome plated cylinder φ28mm

Piston stroke

5mm

Pressure gauge type

XNNETS pointer type

Pressurization mode

Manual pressurization

Pressure stability

≤1MPA/10Min

Workstation diameter

Φ455mm

Number of columns

2 pillars

Column space

54×55mm (W/H)

over dimension

100×220×220mm(L×W×H)

Weight

4.8kg

NOTE

Specially used for Φ7mm (KBr) potassium bromide sample preparation

Standard configuration

1 tablet press host, without mold (mold can be purchased, other configurations can be purchased)


Remarks: Some of the indicators are unique to TMAX, which can be customized or improved according to customer needs.
