20T to 60T Lab Smart Electric Hydraulic Powder Pellet Press with Digital Pressure Sensor

20T to 60T Lab Smart Electric Hydraulic Powder Pellet Press with Digital Pressure Sensor

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-DYP-TS
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

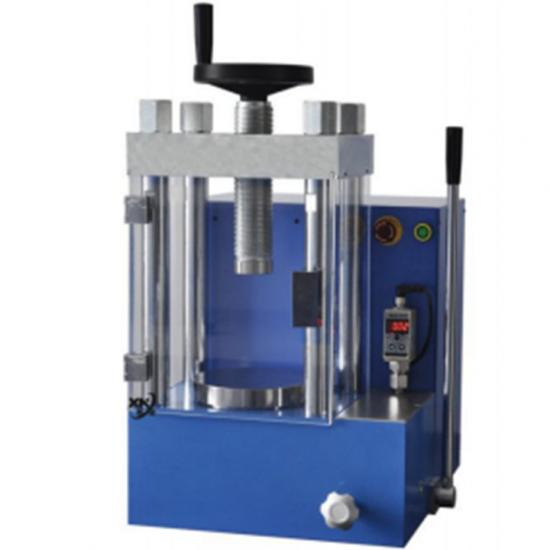

20T to 60T Lab Smart Electric Hydraulic Powder Pellet Press with Digital Pressure Sensor







New DYP-TS digital display series


DYP-TS series electric tablet press has two methods of electric and manual pressure. It is popular with users because of its beautiful appearance, fast boosting and convenient operation. The use of electric pressure and manual supplementary pressure can accurately control the pressure of the hydraulic press. It is widely used for pressing powder samples into various test pieces for dry scientific research and analysis, and can also be used as a common press.

The machine adopts digital pressure sensor, which is more accurate than pointer pressure gauge. When the output pressure value of the tablet press is lower than the lower limit of the set value, the machine will automatically start to supplement the pressure, which can realize the automatic pressure maintenance function for a long time.




Parameters


Equipment model

DYP-20TS

DYP-30TS

DYP-40TS

DYP-60TFS

Pressure range

1-20T (0-28MPa)

1-30T (0-31.5MPa)

1-40T (0-30MPa)

1-60T (0-34MPa)

Pressure conversion

1T=1.4Mpa

1T=1.05Mpa

1T=0.75Mpa

1T=0.56Mpa

Piston diameter

Dia95mmchrome cylinder

Dia110mm chrome cylinder

Dia130mm chrome cylinder

Dia150mm chrome cylinder

Maximum piston stroke

30mm

40mm

50mm

50mm

Pressure gauge type

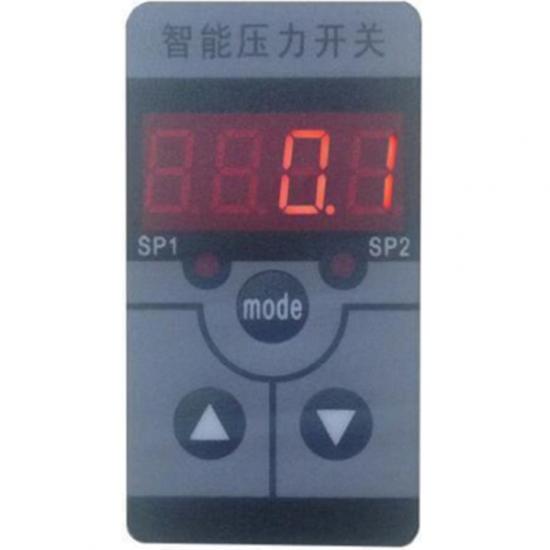

XNNETS "S" electric digital display meter, range 0.0-40.0Mpa, accuracy 0.1Mpa



Pressure stability

<1MPa/10min

Pressurization method

Electric pressurization/manual slow pressurization

Pressure Compensation method

Automatic pressure compensation / Manual pressure compensation

Overall structure

One-piece structure, no sealing connection of equipment, reducing oil leakage points



Equipment power supply

 220V (50Hz/60Hz)



Safety protection device

none

none

none

plexiglass protective cover

Table diameter

 105mm,

 120mm

140mm

160mm

Working space

width 80×150mm

width 92×160mm

width 115×185mm

width 185×250mm

Overall dimension

245×415×415mm

275×430×420mm

 295×450×500mm

405×470×565mm

Equipment weight

58kg



 72kg

92kg

140kg

Model description

1 hydraulic press, mold optional. Four columns, can be customized to increase height, can add "F" plexiglass protection device



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
