200C Benchtop Dip Coating Equipment Machine With Discounted Price

Product Overview

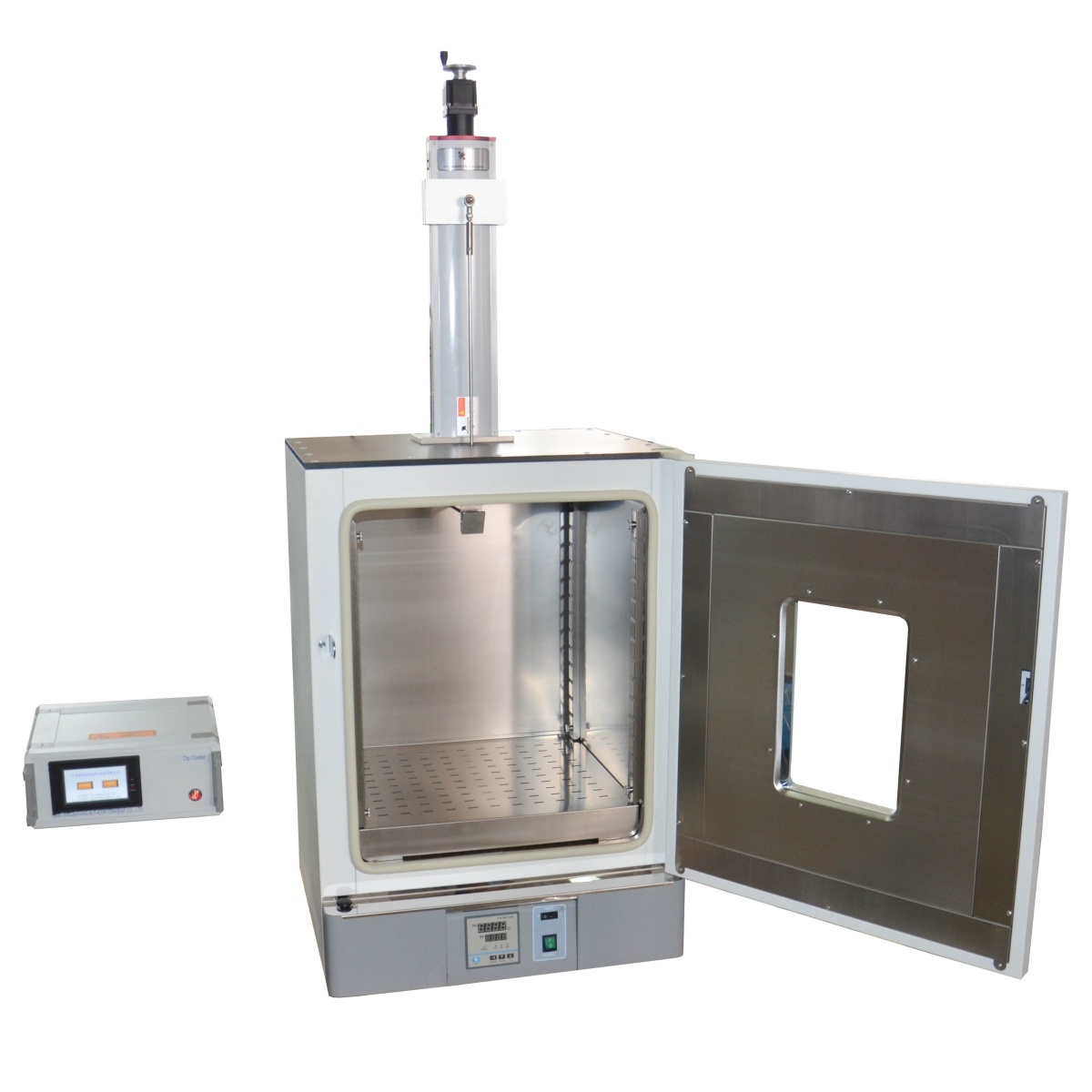

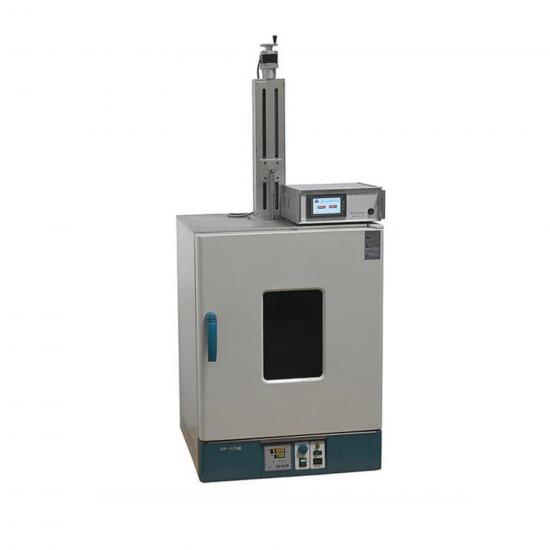

The LITH-KJ013O Constant-Temperature Vertical Dip Coater is a high-precision millimeter-level lifting device designed for liquid-phase thin-film deposition under controlled temperature conditions. It is ideal for research institutions and laboratories specializing in thin-film material preparation.

This model features:

· PLC-based control system for precise operation

· High-precision stepper motor driving a lead screw transmission mechanism for smooth and accurate vertical movement

· Vertical dip-coating process allowing controlled immersion and uniform withdrawal speed, by constant-temperature drying to produce films of consistent thickness

· Compact and portable design, making it suitable for universities, research institutes, and industrial labs

Key Features

✔ 4.3-inch color touchscreen with an intuitive interface for easy operation, suitable for beginners
✔ Space-saving and cost-effective, optimized for laboratory environments
✔ PLC-controlled high-precision stepper motor ensures stable and highly accurate motion

Installation Requirements

Parameter	Specification
Power Supply	Single-phase AC220V 50/60Hz
Outlet Requirements	1× 10A national standard outlet<br>1× 16A national standard outlet
Grounding	Must be properly grounded
Circuit Protection	Requires 16A circuit breaker
Operating Environment	Temperature: 25°C ±15°C Humidity: 55%RH ±10%RH

Main Technical Parameters

Parameter	Specification
Rated Power	50W
Operating Voltage	DC24V 3.75A (Standard: AC100-240V power adapter included)
Drive Motor	High-precision stepper motor
Speed Adjustment Range	1-200 mm/min (1mm increments)
Immersion Time	1-999 sec (1 sec increments)
Drying Time	1-999 sec (1 sec increments)
Lifting Stroke	1-270 mm (1mm increments)
Maximum Lifting Cycles	20 times
Maximum Substrate Size	400mm(L) × 230mm(W) × 1-10mm(T)
Maximum Immersion Depth	≤200 mm
Maximum Load Capacity	≤5.5 kg
Control Interface	4.3-inch color touchscreen
Machine Dimensions	636mm(W) × 680mm(D) × 1520mm(H)
Net Weight	≈75 kg (including oven)

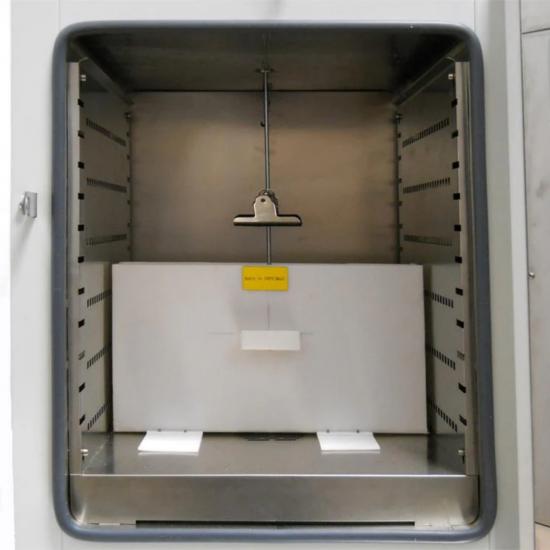

Oven Specifications

Parameter	Specification
Power Supply	Single-phase AC220V 50/60Hz
Rated Power/Current	2.5 kW / 11.3A
Heating Method	Natural convection
Temperature Range	Room temperature to +200°C
Temperature Accuracy	±1.5°C
Timer Modes	Constant-temperature timer/Run timer (selectable)
Timer Range	0-9999 minutes/hours
Temperature Control	Dual digital display PID with 4-button setting
Temperature Display	PV (measured): Upper 4-digit display<br>SV (set): Lower 4-digit display
Temperature Sensor	PT100 thermocouple
Internal Dimensions	500mm(W) × 450mm(D) × 550mm(H)
Internal Volume	125L
