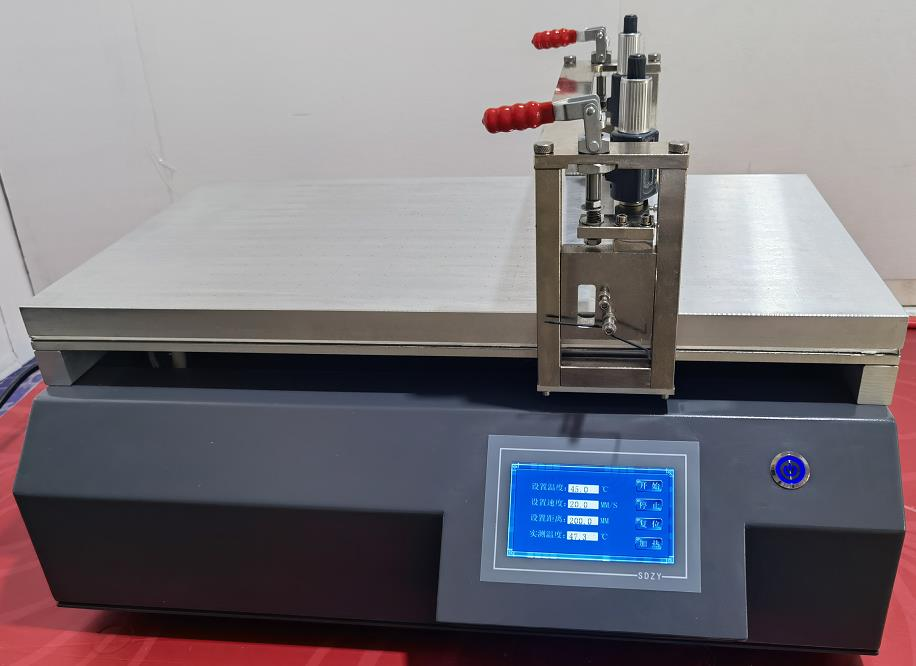

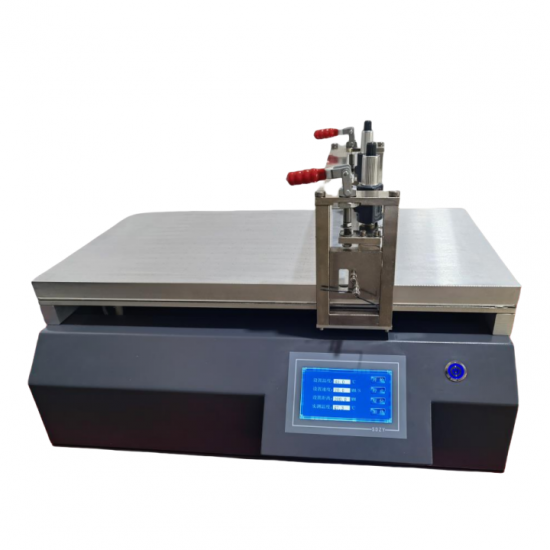

150C Vacuum Touch Screen Coater Machine of Doctor Blade Wire Bar Combination

By controlling the speed and maintaining a stable pressure to ensure the coating effect, ensuring the uniformity and stability of the coating.

1. The synchronous belt drive ensures smoother transmission with no vibration.

2. The speed is digitally adjustable, allowing for continuous speed control to precisely regulate the coating speed.

3. The wet film thickness of the scraper is adjusted and controlled by a high-quality manufacturer's caliper, which is simple and easy to operate.

4. The wet film thickness of the wire rod is adjusted and controlled by changing the wire rod specification.

5. Both the wire rod and the scraper are made of 304 stainless steel, which is easy to clean and does not corrode (the scraper can be customized with 316 stainless steel).

6. The vacuum suction plate is highly polished by a grinding machine, with holes drilled for suction, resulting in more uniform suction force; the vacuum pump is external, which can reduce the vibration of the vacuum and minimize its impact on coating (this model comes with a default 2.5mm whole-board aluminum platform).

7. The heated aluminum base plate ensures that the heat does not cause deformation, ensuring smooth coating.

8. An upgraded 7-inch touch screen is used to reduce external manual interference.

9. A silent, durable motor without vibration is used, reducing coating jitter and ensuring smooth coating.

≡Technical Specifications≡

1. Coating method: Wire rod / Adjustable scraper

2. Scaler adjustment method: Digital micrometer

3. Scaler accuracy: ±3μm

4. Scaler length: Total length 360mm, effective length 300mm

5. Scaler material: 304 stainless steel (customizable to 316 stainless steel)

6. Scaler coating thickness: 0.01 - 10mm

7. Wire rod coating thickness: Determined by wire rod specification (Domestic wire rod: 4/5/6/8/10/12/15/20/25/30/40/50/60/80/100/120/150/200μm. Imported OSP wire rod: 0/1.5/2/3/4/5/6/7/8/9/10/12/13/15/17/18/20/22/25/30/35/40/42/45/47/50/52/60/64/76/80/92/96/100/105/110/120/150)

8. Wire rod specification: 10 micron wire rod 1 piece

9. Wire rod accuracy: ±1μm

10. Coating speed: 5 - 200mm/s (infinite speed variation)

11. Effective coating size: 300×400mm

12. Coating distance control: Digital arbitrary setting within 1 - 400mm range

13. Platform material: 2.5mm aluminum alloy

14. Heating method: Aluminum base plate heating

15. Heating power: 1200W

16. Heating temperature: Room temperature - 150℃

17. Temperature accuracy: ±3℃

18. Base material fixation method: Vacuum suction platform

19. Vacuum attachment size: 150*300mm

20. Vacuum hole diameter: φ1.2mm

21. Punching spacing: 20*20mm

22. Control method: Touch screen

23. Equipment total power: 330W

24. Main unit power supply: 220V/50Hz

25. Dimensions: 620*460*410mm (length*width*height)

26. Equipment weight: Approximately 65KG

≡Configuration List≡

≡Working Conditions≡

a) Within the temperature range of 10℃ to 35℃;

b) The relative humidity should not exceed 80%;

c) There should be no vibration, no corrosive medium and no strong magnetic field interference around;

d) The fluctuation range of the power supply voltage should not exceed 10% of the rated voltage, and the fluctuation range of the frequency should not exceed 2% of the rated frequency; (Power supply capacity of this machine: 1600W/220V)

e) Installed stably, with a levelness of 0.5/100

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
