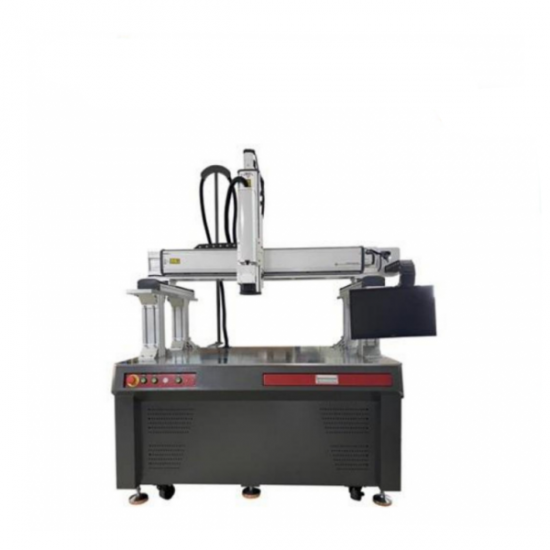

1500W Fiber Laser Galvo Welding Machine for Battery Pack Assembly

Item No.:
TMAX-HY-C1500W
Payment:
L/C D/A D/P T/T Western Union
Product origin:
China
Shipping port:
Xiamen

Product Details

1500W Fiber Laser Galvo Welding Machine for Battery Pack Assembly

Principle Of Laser Welding:

After being processed by the laser system, the laser beam emitted from the laser source is precisely focused through an optical lens, concentrating high energy density into a small working area. When the material absorbs the laser energy, its temperature rises rapidly, causing different physical or chemical reactions depending on the material properties, such as melting, vaporization, oxidation, or color change.

The laser processing effect varies according to factors including the material's melting point, boiling point, and thermal characteristics, enabling precise welding, cutting, and surface treatment applications.

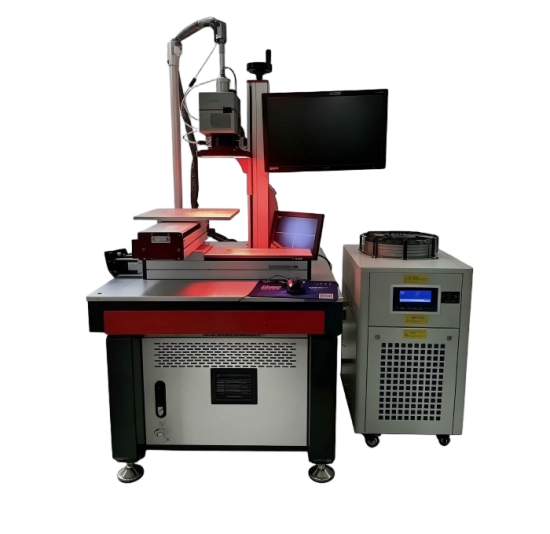

Optical fiber series welding machine configuration:

Configuration and model	TMAX-HY-C1500W	Remark
Laser system	RAYCUS –C1500W	Wuhan Ruike
Transmission mechanism	10m optical fiber	Wuhan Ruike
Welding head	Optical fiber galvanometer welding head	TMAX
Control mode	IPC computer, special galvanometer welding software	TMAX
Positioning method	Semiconductor red light, CCD monitoring and positioning	TMAX
Kinematic mechanism	Gantry type X/Y/Z (left and right, front and rear, upper and lower) axis motor guide rail (900mm * 600mm * 300mm)	TMAX
Gas protection	Synchronous argon or nitrogen protection	TMAX
Refrigeration system	1P Integrated thermostat internal circulating cooling water	TMAX
Cabinet	Main machine:15809001600mm、 Water tank: 530450700mm	TMAX

Specification:

Model	TAMX-HY-C1500W
Maximum laser power	1500W
Output center wavelength	1070±10
Welding method	Continuous, spot welding
Laser weld	0.2-5mm
Maximum welding depth	3mm（stainless steel）
Fiber length	10m
Main machine size	0.80.90.7m
Working voltage	220V/32A
Working temperature	5-35℃
Weight	360KG
