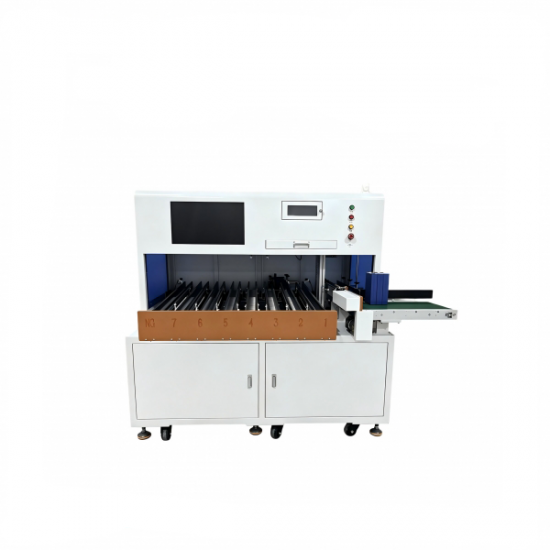

8-Channel Prismatic Battery Cell Sorting Machine with IR & OCV Testing

Item No.:
TMAX-FFX8S
Payment:
L/C D/A D/P T/T Western Union
Product origin:
China
Shipping port:
Xiamen

Product Details

8-Channel Prismatic Battery Cell Sorting Machine with IR & OCV Testing

Ⅰ Equipment adaptability range

Universal sorting and matching set for square case batteries.

Ⅱ Equipment overview

TMAX-FFX8S 8-speed sorting machine is suitable for sorting and grouping testing of general-purpose square case batteries. This machine adopts belt line drive for loading and is easy to change. It can analyze and save the test data of square case batteries. It is unique for defective batteries. Rejected, sorted and paired batteries are collected in the collecting chute, which facilitates operator management.

Ⅲ Functional features

●With integrated industrial control, all parameters of the battery can be traced and tracked, which facilitates data management and is simple to operate. Management functions such as battery voltage, battery internal resistance, and group information.

●Adaptable to various types of batteries, the replacement is simple and easy to operate.

●Built-in high-precision Hioki BT3562A internal resistance tester, with high test accuracy and fast speed.

Ⅳ Equipment structure

Ⅴ Work flow

①Manually Place Batteries onto the Material Conveyor Belt

②Batteries Move to the Barcode Scanning Position

③Batteries Proceed to the Testing Station

④Material Handling Mechanism Collects Batteries for Sorting into Respective Channels

Ⅵ Technical Parameters

Equipment efficiency	10~12PPM
Equipment transfer rate	≥95%
Number of sorting channels	8(7 good products, 1 defective product)
Applicable battery size	L：100-220mm，W20-80mm,H：110-220mm
Instrument internal resistance detection accuracy	+/-0.5% rdg, display resolution 0.01 milliohms
Instrument voltage detection accuracy	+/-0.05% rdg, display resolution: 0.1 millivolts
Internal resistance detection repeat error	<1 milliohm (AC internal resistance detection method)
Voltage detection repeat error	<1 millivolt
Control System	PC industrial computer (embedded system)
Input power consumption	1KW
Input power	AC220V/50HZ
compressed air source	≥0.6Mpa
monitor	21.5-inch Philips large display
Equipment appearance reference dimensions	LWH=192016001600mm
Total Weight	350KG

Ⅶ List of key components

Key component name	brand	Origin
guide	Jet Silver	Taiwan
Industrial computer	Kano	China
PLC	Xinjie	China
servo motor	Xinjie	China
Speed motor	Taili	China
monitor	Philips 21.5 inches	China
driver	Xinjie	China
power supply	Jin Shengyang	China
The electromagnetic valve	stars	China
cylinder	stars	Taiwan/China
