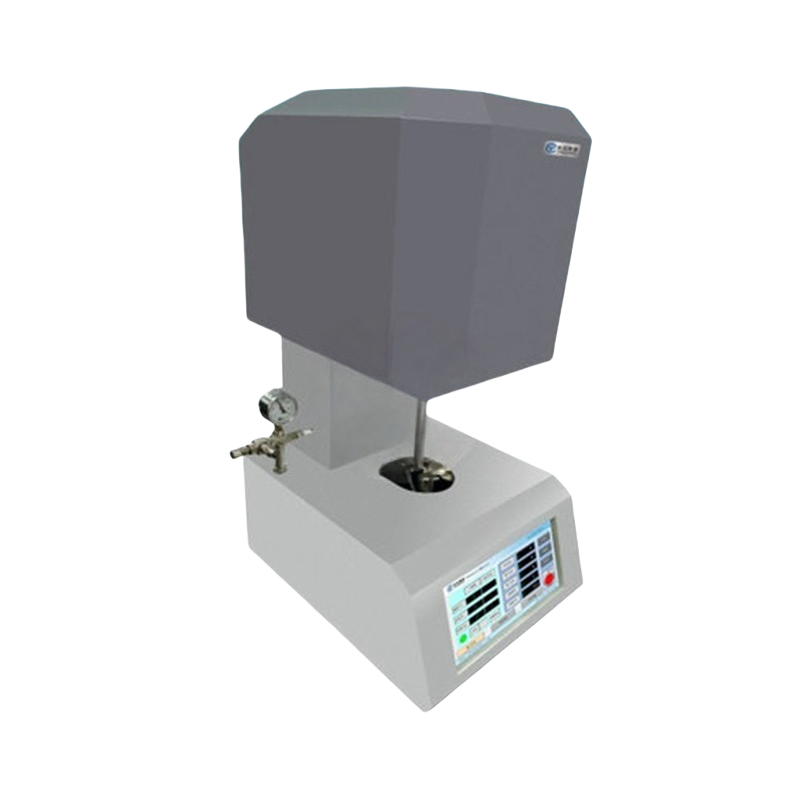

CY-AL1200C-S type lifting microwave atmosphere high-temperature furnace

Product application

The CY-AL1200C-S type lifting microwave atmosphere high-temperature furnace is a microwave rapid heating lifting, vacuuming, and flowable atmosphere high-temperature furnace, featuring vacuuming, controllable flowable atmosphere, and high-temperature experimental environment.

It is applicable to laboratory sintering, melting, elemental analysis, physical measurement, and new material calcination experiments, and is also used in the fields of semiconductors, nanomaterials, carbon fibers, and graphene processes.

Product features

● It adopts a lifting structure, making it very convenient to take out materials, and there is no pollution caused by powder shedding of insulation materials

● The equipment is equipped with a vacuum system and flow atmosphere control

● International brand control system, stable and reliable

● Industrial-grade microwave system, stable operation and long service life

● The material heating rate is fast, reaching up to 100℃/min, and the heating time is shortened to 1/5 to 1/10 of the original

● Vacuum-formed thermal insulation fiber lightweight structure, energy-saving and highly efficient

● 7-inch large touch screen operation, convenient operation

● Non-contact heating, no pollution to materials

● Four process curves are preset, which can adapt to different product process conditions and can be saved and retrieved at any time

Product safety

Microwave leakage ≤0.05mw/cm² (lower than the average leakage value of mobile phones)

Alarm: Equipment over-temperature, magnetron overheating, microwave system failure, excessive pressure, furnace door not closed tightly

Model

CY-AL1200C-S

Equipment structure

Desktop (placed on the laboratory bench)

Voltage

220±10V   50Hz

Rated power

3KW

Microwave power

0.01～1.4kW   Continuously adjustable

Microwave frequency

2.45GHz

Maximum temperature

1200℃

Operating temperature

≤1100℃

Heating space

Ø100×120mm

Heating rate

≤100℃/min

Temperature control accuracy

±1℃

Number of gas paths

2（It can be configured according to the user's requirements）

Intake pressure

≤0.2MPa

Static vacuum degree

10-100Pa

Control program

Manual, constant temperature, automatic control, with data storage and export of experimental data; The curve is displayed in real time, with 40 settable process parameters and 4 preset process curves. The experiment can be retrieved at any time

Control mode

7-inch touch screen +PLC

Microwave leakage

＜0.05mw/cm2

Alarm

Equipment overheating, magnetron overheating, microwave system failure, excessive pressure, furnace door not closed tightly

Equipment dimensions

700*600*900mm(Length × width × height)

Equipment configuration

1. 304 stainless steel furnace body (1 set), lifting device (1 set)

2. Industrial-grade microwave heating system (1 set)

3. Insulation modules and structural components (1 set), crucibles (2 pieces), plugs (2 pieces)

4. Mitsubishi brand PLC (1 piece), 7-inch Siemens touch screen (1 piece)

5. Gas line assembly (1 set) (Flow meter (2 pieces), vacuum gauge (1 set), vacuum pump (1 unit), vacuum valve (2 pieces), vacuum joint flange (1 set), pressure gauge (1 unit))

6. Operating gloves (1 set), crucible tongs (1 pair), handheld microwave leak detection instrument (1 piece)

Fragile items

1. Insulation modules and structural components

2. Crucible

3. Plug
