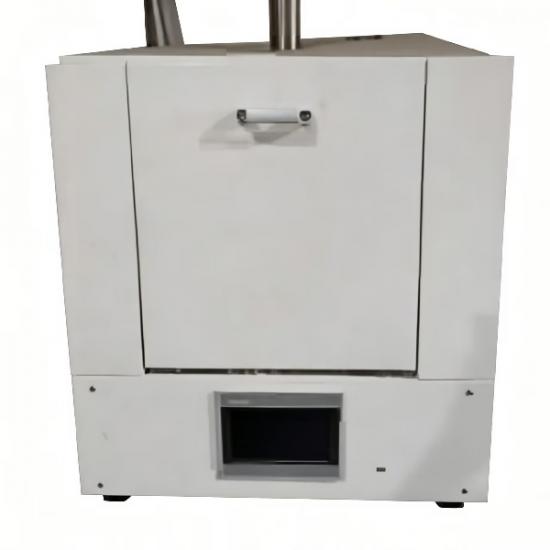

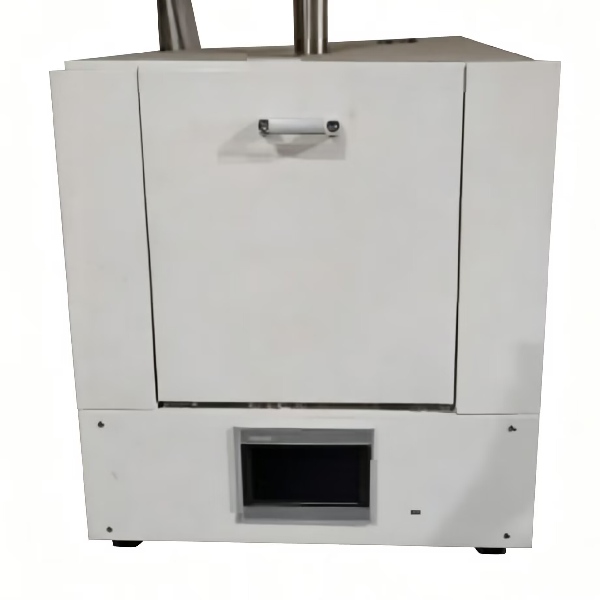

1200C Microwave Ashing Furnace Built-in 25 Ashing Methods

1. Application:

Suitable for the ashing treatment and ash content determination of various organic and inorganic substances.

2. Operating Conditions:

2.1 Temperature: 5 - 40℃,

2.2 Relative Humidity: 5 - 85%.

2.3 Ventilation Equipment: A ventilation hood or window should be provided beside the experimental bench.

2.4 Power Supply, Voltage: 220 ± 10V 50Hz

3. Technical Performance Indicators:

3.1, Maximum temperature of the box: 1200℃, working temperature: 1100℃, capable of achieving rapid heating and rapid cooling, average heating rate ≥ 100℃/min, saving 90% of time compared to traditional muffle furnaces;

3.2, Temperature measurement uses high-precision thermocouples; control accuracy: ±1℃;

3.3, Air preheated and enters the furnace chamber, temperature uniformity of the furnace body: ±5℃;

3.4, Internal volume: greater than 5L, 220 × 220 × 110mm (length × width × height);

3.5, Maximum power of professional magnetron tube: 0.01 - 2.80kW, continuously adjustable (Panasonic); microwave frequency: 2.45GHz

3.6, The amount of samples added once meets the requirements of GB/T 9345.1-2008;

3.7, Adopt PLC + touch screen control mode, self-developed control program, equipped with automatic, manual, and constant temperature control modes; multiple process parameters can be set through time, temperature, and power, real-time display of process curve, data storage and export function, one-click oven;

3.8, Exhaust system: The main unit is equipped with an exhaust system to meet experimental needs, capable of quickly removing the smoke generated by ashing, exhaust rate ≥ 13CFM; specially designed high-temperature corrosion-resistant exhaust channel, large oxygen supply to accelerate ashing efficiency;

3.9, Over-temperature protection device, suitable for unmanned operation; anti-microwave leakage, microwave leakage level < 1 mW/cm2, over-temperature alarm, over-current alarm;

3.10, Touchscreen operation, simple and convenient; brand control system, stable and reliable; built-in 25 ashing methods, users can call as needed;

3.11, System safety monitoring protection device: Safety protection complies with EC health & safety directive; provides high-temperature control, microwave leakage safety guarantee; furnace door equipped with an electronic lock, the furnace door automatically locks during the experiment, cannot be manually interrupted (opening the door), if the experiment is forcibly interrupted, the system will alarm and prompt, the experiment is invalidated, to prevent interference from human factors to the test results.

3.12, Water cooling system is configured, for the key components of the equipment to cool, ensuring the equipment can be used for a long time continuously and significantly enhancing the service life.

3.13, Insulation module uses customized microwave-specific high-purity solidified polycrystalline ceramic fiber insulation material combined with special hard constant temperature module to ensure uniform and controllable temperature field in the heating zone, can fully prevent ash and oil pollution, reduce the impact on the ashing result.
