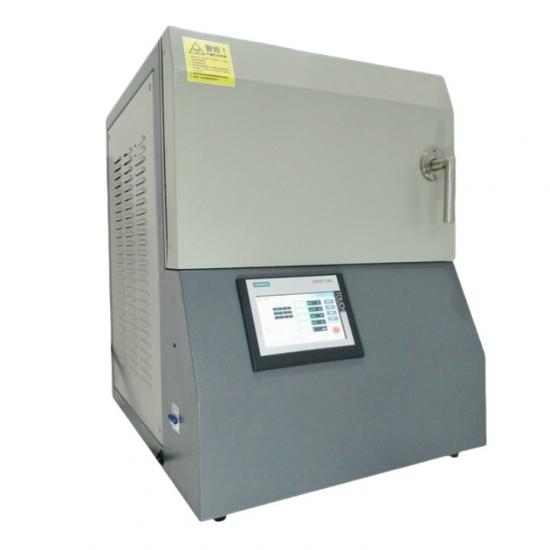

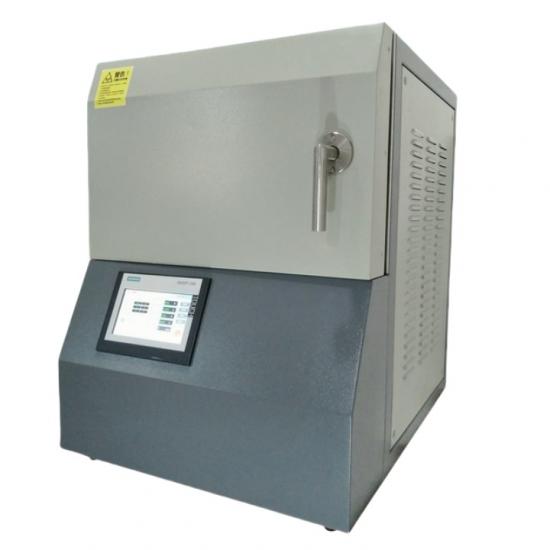

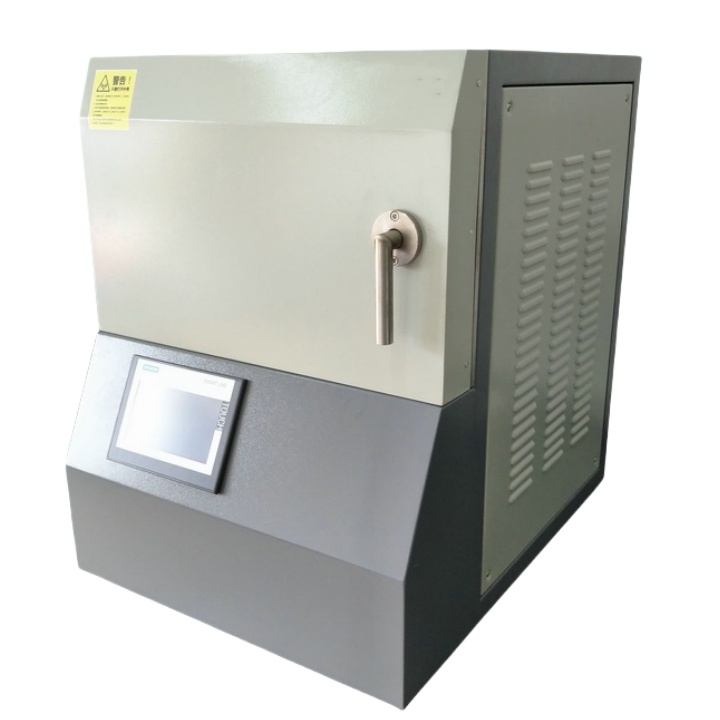

CY-AS1200C-M type microwave ashing system

Product application

The CY-AS1200C-M microwave ashing system, also known as the microwave ashing furnace, represents a revolutionary advancement in the ashing field. It enables a rapid and clean ashing process, reducing the "several hours" of traditional muffle furnaces to "several minutes", significantly enhancing work efficiency.

It is applicable to the analysis fields of food, pharmaceuticals, polymers, oil, feed, plastics, coal quality, etc

Product advantages

● No carbonization is required for direct ashing, eliminating the carbonization process of evaporating moisture and burning to remove organic matter before the sample is placed in the muffle furnace

● International brand control system, stable and reliable

Industrial-grade microwave system, with stable operation and long service life, integrated design, compact and lightweight structure

● The material heats up quickly and the ashing time is short. Most samples can be completely ashed within 10 minutes, while it takes several hours or even dozens of hours for a common muffle furnace.

● Low power consumption, large ashing capacity, vacuum-formed insulation fiber lightweight structure, energy-saving and highly efficient

● Power off when opening the door and delay power restoration to ensure safety

● It is equipped with a dedicated crucible, which enables rapid heating without cracking

● The 7-inch large touch screen operation is simple and convenient

● Exhaust device, enhancing air convection and accelerating the ashing speed

● Dust-proof isolation effectively prevents dust from affecting ashing measurement

● Non-contact heating ensures no deviation in ashing

● According to customer needs, 4 sets of processes are pre-stored and can be directly called up and modified at any time

Product safety

Microwave leakage ≤0.05mw/cm² (lower than the average leakage value of mobile phones)

Alarm: Equipment overheating, furnace door not closed tightly, magnetron overheating, microwave system failure

Model

CY-AS1200C-M

Equipment structure

Desktop (placed on the laboratory bench)

Voltage

220±10V   50Hz

Rated power

4.5KW

Microwave power

0.01～2.8kW   Continuously adjustable

Microwave frequency

2.45GHz

Maximum temperature

1200℃

Operating temperature

≤1100℃

Heating space

225×225×100mm(5L)

Single sample quantity

16个（50ml）

Heating rate

≤100℃/min

Temperature control accuracy

±1℃

Control program

Self-control, with data storage and export of experimental data; The curve is displayed in real time, with multiple settable process parameters. Four groups of processes are pre-stored and can be directly called up and modified at any time

Control mode

7-inch touch screen +PLC

Built-in exhaust volume

Adjustable at ≤3m ³ /min

Microwave leakage

＜0.05mw/cm2

Alarm

Equipment overheating, furnace door not closed tightly, magnetron overheating, microwave system failure

Equipment dimensions

750×600×780mm(L×W×H)

Equipment configuration

1. 304 stainless steel furnace body (1 set)

2. Industrial-grade microwave heating system (1 set)

3. Insulation module (1 set), crucible (20 pieces) (50ml, 4 as spare), dust-proof isolation kit (1 set)

4. One Mitsubishi brand PLC, one 7-inch Siemens touch screen(1 PC)

5. Exhaust fan (1 piece, exhaust duct, oil box and valve (1 set)

6. Handheld microwave leak detector (1 piece), microwave jammer (1 piece), operation gloves (1 set), crucible tongs (1 pair)

Fragile items

1. Insulation module

2. Crucible

3. Dust-proof isolation kit
