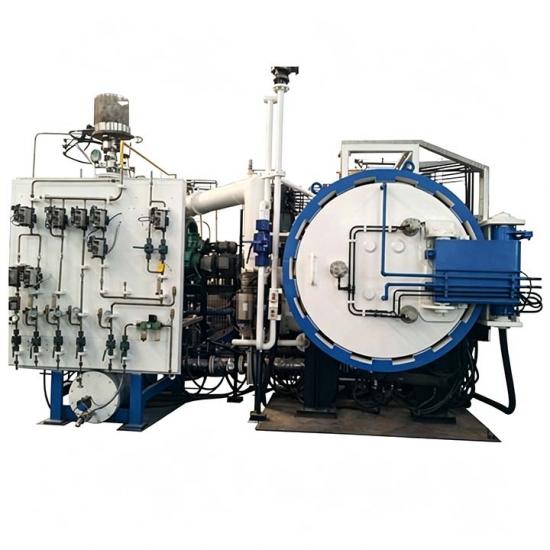

1200C Automatic Vacuum Debinding and Pressure Sintering Furnace 120L

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-PSF-040408
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

1200C Automatic Vacuum Debinding and Pressure Sintering Furnace 120L

Product Description

Vacuum (Debinding) Pressure Sintering Furnace is mainly used for vacuum sintering and pressure sintering of metal matrix powder metallurgy products, as well as vacuum infiltration of copper tungsten alloys.

Application Scope

Copper tungsten alloys, high density alloys, cemented carbides, etc.

Technical Features

Adopts special furnace chamber structure and heater arrangement, ensuring excellent temperature uniformity.
Equipped with specially structured debinding box with reliable sealing, enabling thorough debinding without contamination to furnace components.
Provides multiple functions including flexible vacuum pumping, vacuum sintering, pressure sintering, micro positive pressure sintering, partial pressure sintering, negative pressure debinding, TOWAC debinding, and micro positive pressure debinding.
Utilizes advanced thermal insulation structure and materials, featuring good thermal insulation performance and low heat storage of the furnace chamber, achieving over 20% energy saving compared with traditional designs.
Compatible with process atmospheres: N₂ / Ar / H₂.

Specification

Parameters / Model	PSF-040408	PSF-050518
Working Zone Size W×H×L (mm)	400×400×800	500×500×1800
Max. Temperature (°C)	1200-1550	1200-1550
Temperature Uniformity (under vacuum) (°C)	±5	±5
Temperature Uniformity (under pressure) (°C)	±10	±10
Ultimate Vacuum Degree (Pa)	1	1
Pressure Rise Rate (Pa/h)	0.67	0.67
Max. Pressure (MPa)	10	10

Note: The above parameters can be adjusted according to process requirements and shall not be regarded as acceptance criteria. The final specifications shall be subject to the technical proposal and agreement.

Configuration Options

Door locking mode: manual / automatic

Furnace shell: full carbon steel / inner stainless steel layer / full stainless steel / Q345

Insulation material: rigid carbon fiber felt

Heating element material: isostatic pressing graphite

Muffle material: graphite

Thermocouple: Type C (tungsten sleeve / molybdenum sleeve / ceramic sleeve)
