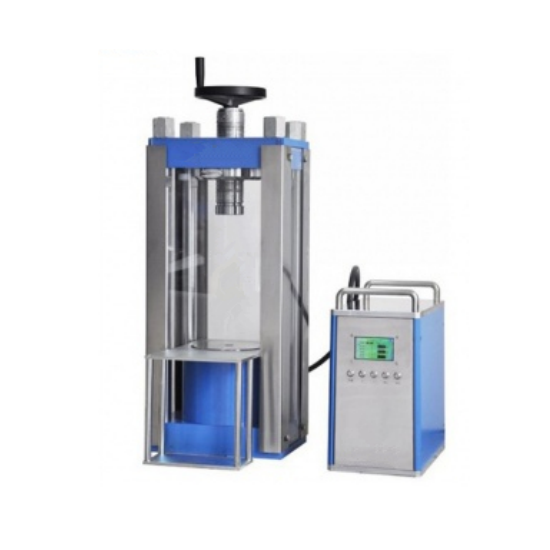

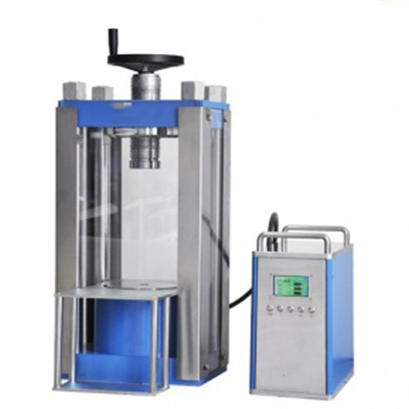

100T 150T High Pressure Electric Powder Tablet Hydraulic Press

100T 150T High Pressure Electric Powder Tablet Hydraulic Press

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-DYP150TFZ
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

100T 150T High Pressure Electric Powder Tablet Hydraulic Press


DYP-TZ series electric powder tablet presses are mainly used for samples that require high pressure to form, such as ceramics, metal powder and other large-scale molds. The hydraulic press adopts a split structure and fully automatic program operation: program pressurization/slow pressurization-pressure maintenance-pressure compensation-timed pressure relief, etc., using liquid crystal display, the operation is more intuitive and simple, and all are equipped with machine glass protective cover, operation The production is safer and more assured, the pressure is stable, and the operation is convenient. It is another masterpiece developed by TMAX following the small tonnage tablet press.


Specification


Model

DYP-100TFZ

DYP-150TFZ

Pressure range

1-100T/0.1t

1-150T/0.1t

Piston diameter

Φ200mm chrome-plated cylinder

Φ250mm chrome-plated cylinder

Max. cylinder stroke

50mm

Pressure method

Electric pressure

Pressurization process

Intelligent and automatic, program pressure/slow pressure-program pressure maintenance-program pressure compensation-timing pressure relief

Display method

XNNETS 4.3 inch LCD display

compress time

0-999.59 (minutes. seconds)

Pressure conversion

The program automatically converts and displays the pressure of the mold sample (Mpa)

Equipment protection

Steel plate protection, equipped with machine glass protection door

Equipment structure

Split structure

Equipment power

220V (50Hz/60Hz)

Workstation diameter

260×400mm(W*H)

285×460mm(W*H)

over dimension

850×500×1100mm

950×600×1100mm

Weight

525kg

625kg

Standard configuration

1 electric tablet press, molds are purchased separately

Remarks: Some of the indicators are unique to TMAX, which can be customized or improved according to customer needs.


High Pressure press


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
