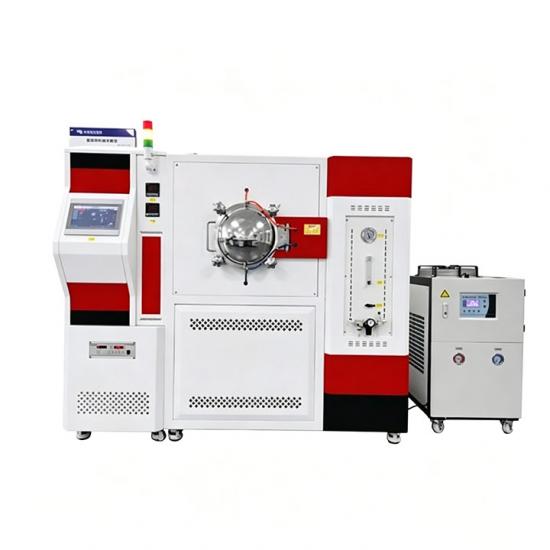

1000C Vacuum Copper Heat Treatment Furnace

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-ZY-CHTF
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

1000C Vacuum Copper Heat Treatment Furnace

Features

One-Touch Start & Remote Control

Controller: Intelligent system with 30-segment programmable heating curves.Heating and temperature control accuracy reaches ±1℃.

Double-Layer Housing Structure

Round-in-Square Structure: Features annular heating, high-temperature resistant furnace door, anti-deformation design, and long service life.

Safety System

Tight Seal & Safety Monitoring: Equipped with sensor-based fault detection, accompanied by audible and visual alarm prompts.

Heat Dissipation System

Easy & Safe Operation: The furnace bottom is fitted with a double-layer grille-type heat dissipation structure, which lowers the surface temperature, ensures operator safety, and improves work efficiency.

Specification

Item	Specification
Voltage (AC)	380V
Temperature Control Accuracy	±1℃
Chamber Size (L×W×H)	300×200×200 mm 400×300×300 mm 500×400×400 mm
Working Temperature	1000℃
Vacuum Level	10 Pa
Heating Element	Resistance Wire
Max. Heating Rate	5-8℃/min
Atmosphere	Nitrogen (N₂), Argon (Ar), Hydrogen (H₂) and other gases available
Heating Power	15 kW
Chamber Material	310S Stainless Steel
Control System	Fully automatic control system with temperature calibration and compensation functions; 30-segment time-temperature curve programmable
