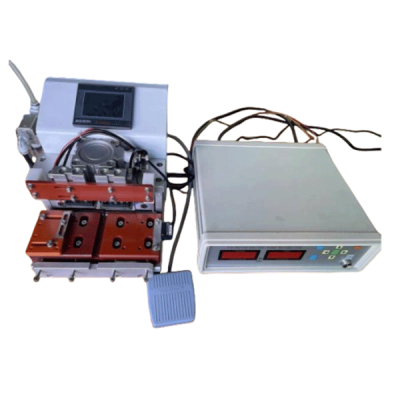

Laboratory Compact Pouch Cell Tab Cutting Cutter Machine For Battery Tab Shaping
Laboratory Compact Pouch Cell Tab Cutting Cutter Machine For Battery Tab Shaping
Product overview
This equipment is to achieve the function of cutting the tab of large polymer, small equipment, simple operation, and stable cutting. Both positive and negative tabs are cut without short circuit.
Product characteristics
1, small and simple equipment, easy to operate, low failure rate.
2. The machine solves the problem of simultaneously cutting the positive and negative electrodes of the polymer built-in battery to avoid short circuit.
3, used for cutting the length of the positive and negative ear before the polymer built-in battery welding protection plate (including mobile phone battery, mobile power supply, power battery, etc.).
Technical parameters
Power supply
220V50Hz 30W
Air source
0.4-0.8MPa
Applicable battery type
Polymer battery
Max. tab width
194mm
Min. gap of tab
10mm
The tab retains the shortest length
5mm
Cell length
30-200mm
Cell width
30-300mm
Cell thickness
2-12mm
Weight
10kg
Dimension
300*300*210mm
Cutting tab’s thickness
Al, Ni: max. 0.6mm
nickel plated copper: 0.4mm
