Tabs Cutting And Testing Machine for Lithium Polymer Battery Pack Assembly Plant

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-MYG-1C
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

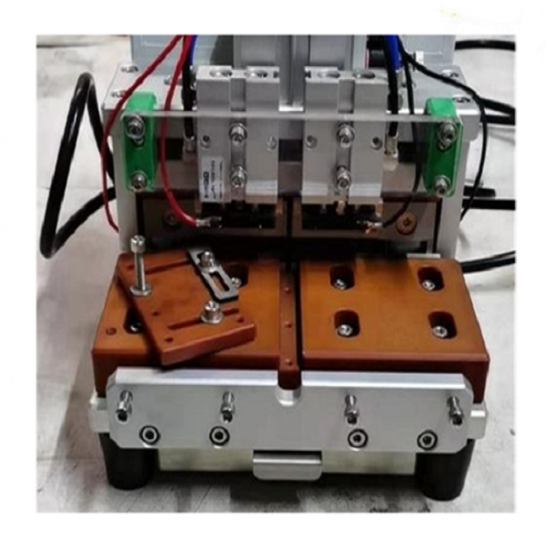

Tabs Cutting And Testing Machine for Lithium Polymer Battery Pack Assembly Plant

Introduction

1. The equipment is small, easy to operate and the failure rate is ultra-low.

2. The machine solves the problem of cutting short circuit of positive and negative poles of polymer built-in battery at the same time.

3. It is used for cutting the length of positive and negative poles and tabs before welding the protective plate of polymer built-in battery (including mobile phone electricity, mobile power supply, power battery, etc.),

4. The voltage internal resistance test function of the cell is added. If the test value is within the set value range, the device will cut. If the test value is not within the set value range, it will not cut.

Technical parameters:

Power Supply	220V 50Hz 30W
Air Pressure	0.4-0.8MPa
Applicable Battery Range	Polymer Cell
Maximum Center Width of tab	140mm
Minimum Center Width of tab	4mm
Minimum Length of tab	3mm
Cell Length	30-200mm
Cell Width	20-160mm
Cell Thickness	2-12mm
Overall Dimension	230180200mm
Weight	8KG
