Surface Area Analyzer

Surface Area And Pore Size Analyzer

Surface Area And Pore Size Analyzer

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-X1000
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    20 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

 Surface Area And Pore Size Analyzer



Features:

1. Multiple parallel analysis ports and ultramicropore analysis

2. Ultrahigh vacuum bistable solenoid valves and gas circuit with integrated manifold

3. A two-way, multichannel PFC and high-accuracy pressure electronic control system

4. High-stability system temperature control

5. Direct connection of sensor with sample compartment

6. Independent dryer and in-situ drying of analysis ports

7. Built-in computer system with a LCD touch screen

8. Self-regulation of dynamic Gas injection volume and dynamic equilibrium time

9. Ultra long analysis time and liquid nitrogen depletion protection

10. Breakpoint preservation and network remote control function

11. Strong but lightweight Mn/Al alloy skeleton and various color schemes

12. High-quality accessories and multiple options


Multiple parallel analysis ports and ultramicropore analysis

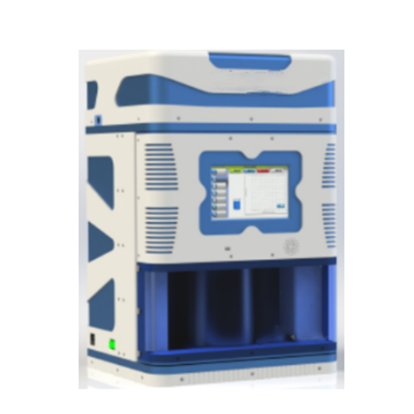

TMAX-X1000 Series Adsorption Analyzers configured with multiple parallel analysis ports can analyze 1-3 samples at the same time. In order to meet the requirements of researcher customers, each analysis port is equipped with ultra-low pressure sensors, which can provide high-precision analysis for macropore, mesopore, micropore and ultramicropore.

1. Shortest connection of analysis port with pressure sensor avoids pressure gradient deviations caused by long distance between the sample compatment sensor.



2. Embedded connection mode of analysis ports visualizes and simplifies the installation process.



3. Ultra-low pressure sensors make ultramicropore analysis possible.



Built-in computer system

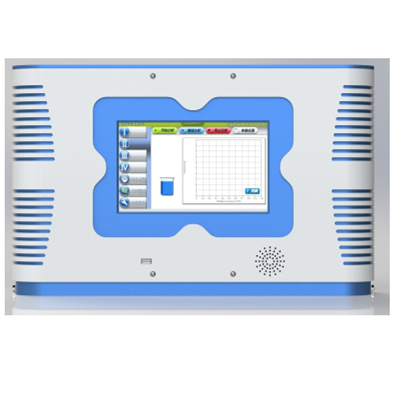

TMAX-X1000 Adsorption Analyzer has an independent built-in computer system with a 10.2-inch chromatic LCD touch screen and a more than 32GB flash memory to store user data. LAN interface provides remote control and data download functions for users. A standard USB2.0 interface allows the use of expansion devices such as keyboard and USB flash drive. Breakpoint preservation function allows interrupt occurrences during analysis process.


Ultrahigh vacuum self-latching solenoid valves

In adsorption analyzing fields, the heating problem in universal solenoid valves has existed for a long time, which seriously affects accuracy of gasometry and pressure reading, especially in the process of analyzing ultra-small specific surface area and micropores. Aiming at solving the problem, our company developed a new solenoid valve with self-latching ability. It can keep on/off status without continuous electricity supply. Calorific value is equivalent to zero. TMAX-X1000 Series Adsorption Analyzers adopt self-latching solenoid valves and its analyzing

performance has been substantially improved.

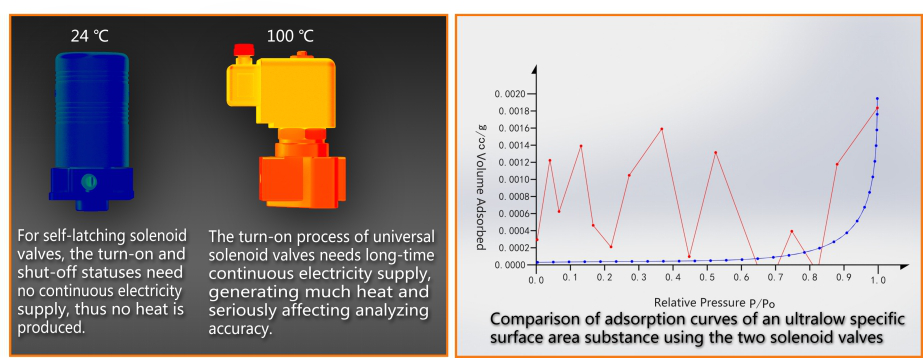

The adsorption curve of an ultralow specific surface area substance (blue) achieved by using self-latching solenoid valves is precise and balanced, while for adsorption curve using universal solenoid valves, the test results are invalid data points.


PFC high-accuracy multichannel pressure electronic control system

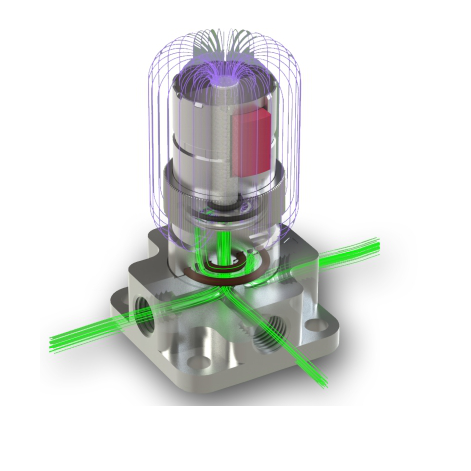

PFC pressure and flow rate controller designed and developed by our company is dedicated to TMAX-X1000 Series instruments. It is a two-way, multichannel and high-accuracy pressure electronic control valve, which provides reliable guarantee for rapid gas injection volume and stable air pumping, voiding various weaknesses of mechanical metering valves.

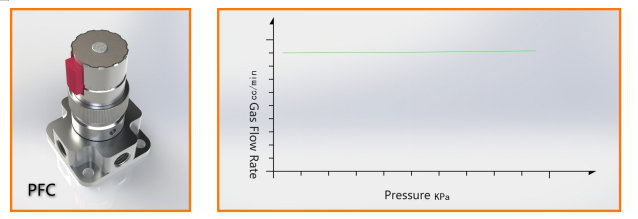

Automatic cintrol of PFCcan obtain rapid and constand gas flow rate

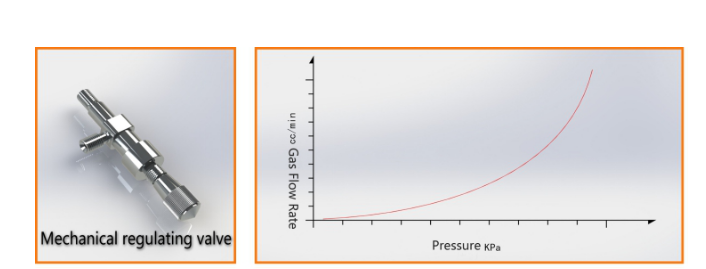

Flow rate in mechanical regulating valves changes as a function of gass pressure.


Highly stable system temperature control

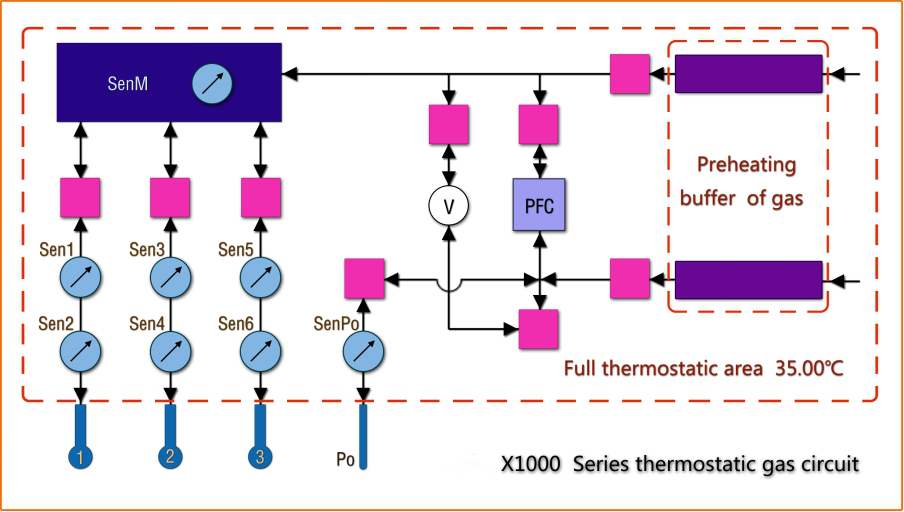

Physical adsorption analyzer based on gas volumetric method determines adsorbing capacity by measuring pressure changes using pressure sensors. The accuracy and valid resolution are extremely sensitive to temperature changes, especially in the process of analyzing micropores and ultralow specific surfaces. Temperature changes can not only affect the computing accuracy of adsorbing capacity, but also lead to zero drifts in pressure sensor, causing relatively larger deviation of calculated micropore size. Therefore, a constant temperature is of great importance to high-accuracy analysis. TMAX-X1000 Adsorption Analyzer avoided analytical error caused by environmental temperature changes by adopting high-accuracy and high-stability full thermostatic control in gas circuit system.



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.





The 3H-2000PS Series—designed for today’s laboratory

• Affordably-priced—perfect for any laboratory.

• Space saving—each unit takes up less bench space than an open 3-ring binder.

• Versatile—a wide range of characterization techniques for powdered and porous materials.

• Flexible operation—analysis type independent for each station (BET and/or pore size measurement).

•Prepare two samples by vacuum or flow methods simultaneously with sample analysis—at different temperatures if required.

• Access degasser during analysis to start/stop flow or vacuum degassingwith Analysis Interrupt.

•Eliminate cell calibration with classical helium-void-volume mode.

• Upgradeable—can adapt to meet your expanding or changing laboratory needs.


Unique Features

1. Unique and Innovative mainifold gas control system

2. Use of air control valve to avoid the heat effect of electromagnetic valve

3. Two independent vacuum systems permit simultaneous preparation of two samples while analyzing another.

4. Unique sample pretreatment anti pollution device, effectively prevent powder into the degas and analysis system

5. Long duration dewar provides virtually 70 hours analysis capability


Selection Guide





3H-2000PS1

3H-2000PS2

3H-2000PS4

3H-2000PM1

3H-2000PM2

Degas Stations

2

2

4

2

2

Analysis Stations

1

2

4

1

2

P0 Test

BET

Total volume

Mesopore(p/p0>10-4)

Micropore(p/p0<10-4)

---

---

---

Isothe

Vacuum Pump

Turbo Vacuum Pump

---

---

---

1000 torr Transducers

10 torr Transducers

---

---

---

Optional

Optional

1 torr Transducers

Optional



Optional

0.1 torr Transducers

---

---

---

Optional

Optional

  Degas Cold Trap

---

---

---

Analysis Cold Trap

---

---

---





3H-2000PS Series Analyzer Test Reports
