One Analysis Stations BET Surface Area And Porosimetry System

One Analysis Stations BET Surface Area And Porosimetry System

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-3H-2000PS1
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    20 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

 One Analysis Stations BET Surface Area And Porosimetry System


Test Reports

Adsorption and desorption isotherm

BET specific surface measurement (single point/multi-point method)

Langmuir Specific surface;

BJH method pore volume and pore size distribution;

MK-plate method (parallel-plate model) pore volume and pore size distribution;

D-R method micro-hole analysis;

t-plot method (boder) micro-pore analysis;

H-K method (Original) micro pore analysis;

Specifications





3H-2000PS1

3H-2000PS2

3H-2000PS4

Analysis  Stations

1

2

4

Measurement types:

B.E.T., STSA, adsorption isotherm, desorption isotherm

Surface area range:

0.01m2/g to no known upper limit

Pore size range:

0.35 to >400nm (3.5 to >4000 Å)

Minimum pore volume:

(STP) 0.0001 cc/g









Nitrogen

Other non-corrosive gases (Ar, CO2, H2, C4H10, etc.)

Preparation Ports

2

2

4

Methods

Vacuum

Vacuum

Vacuum

Temperature range:

ambient - 450ºC*, 1ºC intervals





Accuracy

±5ºC

Accuracy (% of span)

±0.1

±0.1

±0.1

Minimum pressure (mm Hg) resolution

0.016

0.016

0.016

Minimum relative pressure P/Po (N2) resolution

2 x 10-5

2 x 10-5

2 x 10-5









Dimensions (WxDxH)

L51cm x W58 cm xH 83cm

Weight

32 kg (80 lbs.)

Electrical

110-240 V, 50/60 Hz

         One Analysis Stations BET Surface Area

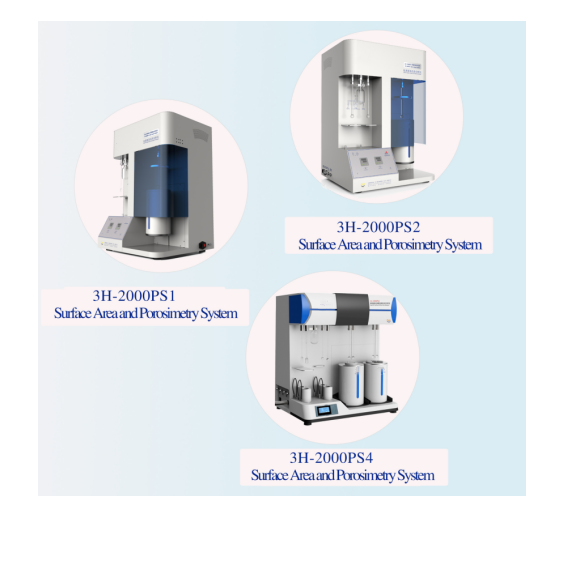

The 3H-2000PS Series—designed for today’s laboratory

• Affordably-priced—perfect for any laboratory.

• Space saving—each unit takes up less bench space than an open 3-ring binder.

• Versatile—a wide range of characterization techniques for powdered and porous materials.

• Flexible operation—analysis type independent for each station (BET and/or pore size measurement).

•Prepare two samples by vacuum or flow methods simultaneously with sample analysis—at different temperatures if required.

• Access degasser during analysis to start/stop flow or vacuum degassingwith Analysis Interrupt.

•Eliminate cell calibration with classical helium-void-volume mode.

• Upgradeable—can adapt to meet your expanding or changing laboratory needs.


Unique Features

1. Unique and Innovative mainifold gas control system

2. Use of air control valve to avoid the heat effect of electromagnetic valve

3. Two independent vacuum systems permit simultaneous preparation of two samples while analyzing another.

4. Unique sample pretreatment anti pollution device, effectively prevent powder into the degas and analysis system

5. Long duration dewar provides virtually 70 hours analysis capability


Selection Guide





3H-2000PS1

3H-2000PS2

3H-2000PS4

3H-2000PM1

3H-2000PM2

Degas Stations

2

2

4

2

2

Analysis Stations

1

2

4

1

2

P0 Test

BET

Total volume

Mesopore(p/p0>10-4)

Micropore(p/p0<10-4)

---

---

---

Isothe

Vacuum Pump

Turbo Vacuum Pump

---

---

---

1000 torr Transducers

10 torr Transducers

---

---

---

Optional

Optional

1 torr Transducers

Optional



Optional

0.1 torr Transducers

---

---

---

Optional

Optional

  Degas Cold Trap

---

---

---

Analysis Cold Trap

---

---

---

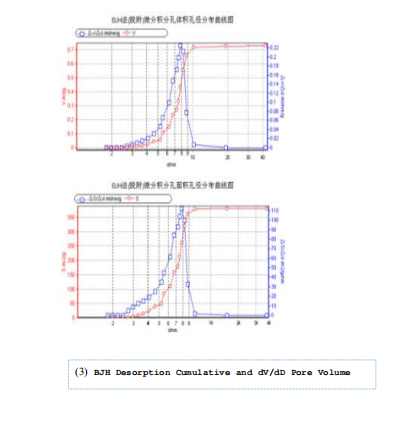

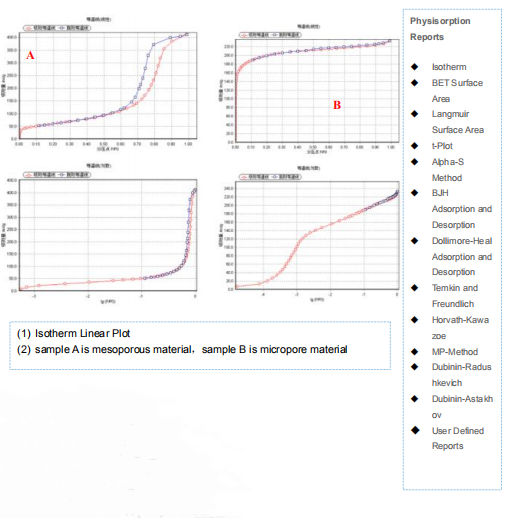

3H-2000PS Series Analyzer Test Reports





 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
