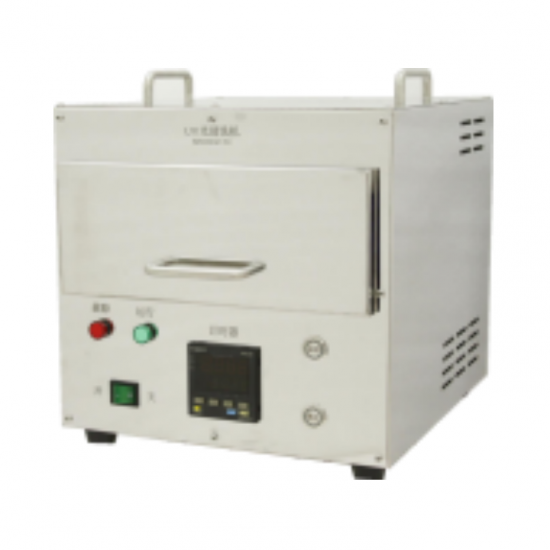

1 Year limited warranty with lifetime supportSmall Drawer Type Perovskite UV Light Cleaning Machine for Small Substrate Cleaning Such as ITO And FTO

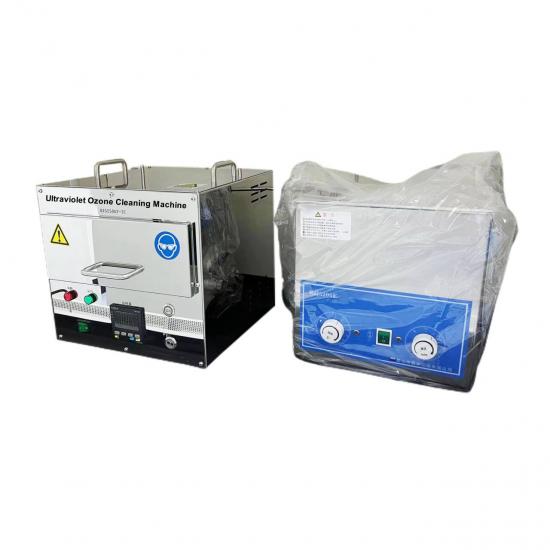

UV light cleaning machine BZS250GF-TC has industrial level cleaning efficiency and effect, suitable for small substrate cleaning, such as liquid crystal panel, ITO, FTO, optical glass, OLED, LCD, silicon, ceramic, metal sheet, polymer, silicone and other surface cleaning, for cleaning the surface organic matter of the product, that is, surface modification. Thus better hydrophilicity is obtained.
A. Product configuration
|
Serial number |
Description |
Model number |
||
|
BZS200GF-TC |
BZS250GF-TC |
BZS320GF-TC |
||
|
1 |
Material of complete machine |
The whole machine is made of mirror stainless steel 304, and the key components are made of Schneider, Omron and other brands |
||
|
2 |
Power supply |
220V,250W |
220V,300W |
220V,350W |
|
3 |
Lamp power |
200W |
250W |
320W |
|
4 |
Cleaning size |
150*150mm |
200*200mm |
250*250mm |
|
5 |
Lamp material technology |
Japanese pure quartz material, one shape grille lamp |
||
|
6 |
Operating spectrum |
185+254nm |
||
|
7 |
Lamp life |
8000 hours |
||
|
8 |
Time frame |
0-99 minutes/hour |
||
|
9 |
Irradiation height |
0-100mm |
||
|
10 |
Light assist |
High performance reflector |
||
|
11 |
Heating (optional) |
Heating range from room temperature to 300℃ |
||
|
12 |
Safety protection |
The lamp goes out automatically when the drawer is pulled out |
||
|
13 |
Cue light |
Exception indication/alert |
||
|
14 |
Exhaust function |
With ozone exhaust system, 125mm diameter outlet, equipped with air pipes and fasteners |
||
|
15 |
Overall dimension |
350W*400L*350H (mm) |
450L*390W*350H (mm) |
|
|
16 |
Weight |
20kg |
22kg |
|
B. Application field
■ Clean the substrate prior to film deposition. Scum removal and stabilization of photoresist treatment. Ultra-high vacuum seal.
■ Clean silicon chips, lenses, mirrors, solar panels, cold rolled steel, inertial guidance parts and GaAs chips
■ Clean flux, mixing circuit and flat panel LCD display
■ Etch Teflon, fluororubbers and other organic materials
■ Enhanced GaAs and Si oxide passivation surface
■ Enhance the degassing effect of glass
■ Substrate blue film removal
■ Enhance the adhesion of the coating on the plastic surface
■ Clear ink stain after final test of substrate
■ Remove photoresist
■ Flat panel display/LCD display
■ Remove residuals from the lithographic machine
■ Clean the circuit board before packaging and taping)
■ Optical fiber
■ Enhanced surface hydrophilic properties
■ Cleaning and disinfection for bioscience applications
■ Optical lens
■ Other applications
C. Cleaning effect
The cleaning effect is generally tested by the substrate surface hydrophilicity, that is, the contact Angle
