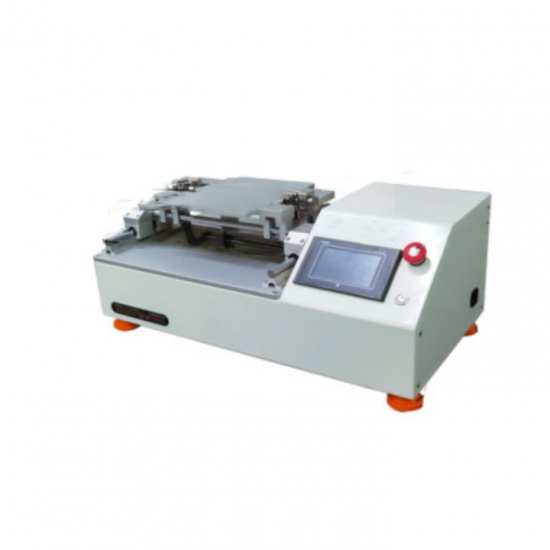

Small Benchtop Bending Test Machine Used for Bending Test of Flexible Thin Film Battery

Small Benchtop Bending Test Machine Used for Bending Test of Flexible Thin Film Battery

Product introduction

1) Use: This machine is mainly used for bending test of flexible thin film battery, FPC, OLED and other products, to do bending test at a certain speed, stroke, Angle, count, this machine is small size, suitable for laboratory use.

2) Features: This machine is mainly composed of AC servo motor, imported linear slider, PLC program, touch screen, steel, etc. It is a professional testing equipment for flexible product testing, easy to understand the operation and high stability of the equipment.

Equipment parameter

1. Test station: 1 station

2. Test product size: 0-15 inches

3. Test Angle: 0-180° programmable

4. Bending radius: R1-R20 manual adjustment

5. Operation mode: 7 inch color touch screen

6. Control mode: PLC software

7. Count: 0-99999999 PLC Settings

8. Speed: 10-60 times/min can be set

9. Transmission: AC servo motor

10. Fixture: according to the sample design (optional)

11. Power supply: 220V50HZ

12. Weight: about 30kg

Equipment structure

1. Test platform

2. Controller

3. Emergency stop switch

4. Power switch

5. Power access/safety

6. Footing

7.R Angle adjustment screws

8. Test platform spacing adjustment

9. Linear guide rails
