Slot-Type Thin-Film Coating Machine for Battery Electrodes

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-SLD
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

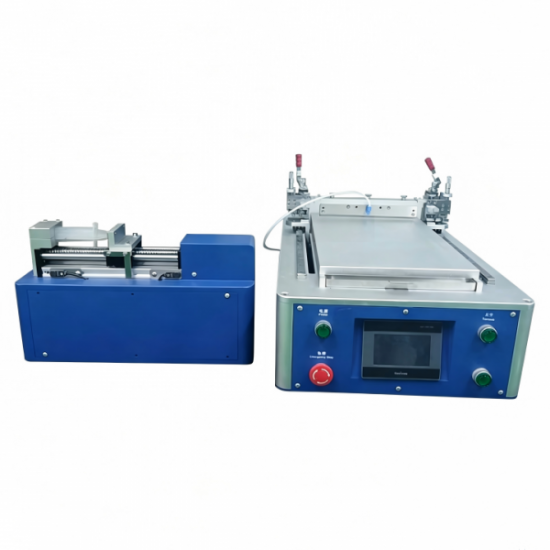

Slot-Type Thin-Film Coating Machine for Battery Electrodes

TMAX-SLD is a high-precision laboratory slot die coating system designed for uniform thin-film coating in advanced material research, including lithium battery electrodes, solar films, OLED layers, and conductive polymers.

Why Choose TMAX-SLD?

High coating uniformity for research-grade results

Multi-functional coating methods in one system

Stable and repeatable coating performance

Integrated heating & vacuum platform

Ideal for lab research and pilot-scale development

Product Overview:

Slot die coating system with max 250mm stroke

Supports multiple coating methods (slot die, doctor blade, wire rod, etc.)

Designed for lab-scale precision coating and material development

Supported Coating Methods:

Slot Die Coating

Doctor Blade Coating

Four-side Applicator

Wire Rod Coating

Technical Specifications

Parameter	Specification
Coating Speed	0-100 mm/sec (adjustable)
Maximum Stroke	250mm
Vacuum Plate	Equipped with a vacuum aluminum plate
Vacuum Plate Size	365mm (L) × 200mm (W) × 30mm (H)
Blade Adjustable Range	0.01 - 3.5mm
Heating & Drying System	Room temperature to 200°C, digital temperature controller, accuracy ±1°C
Power Supply	220V or 110V/ 50Hz
Machine Weight	65kg
Machine Dimensions	500mm (L) × 310mm (W) × 330mm (H)
