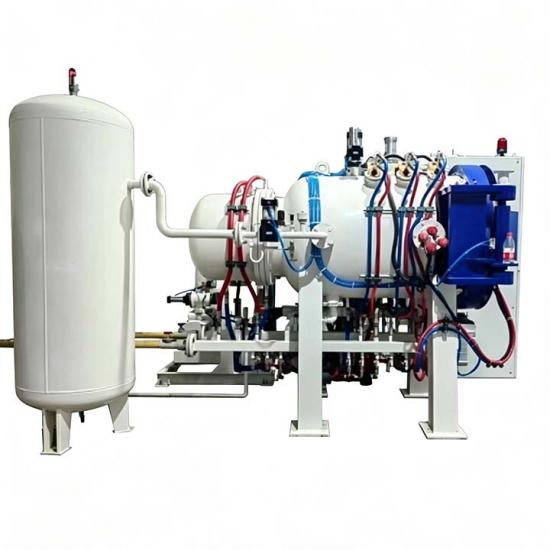

Single Chamber Vacuum Annealing Furnace for 3D Printing Material Heat Treatment

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-ZTH
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Single Chamber Vacuum Annealing Furnace for 3D Printing Material Heat Treatment

Product Overview

Mainly used for bright annealing of high alloys, magnetic materials, stainless steel, titanium alloys, non-ferrous metals and other materials.

Also applied for vacuum annealing of structural steel, tool steel, high-speed steel, stainless steel, titanium alloys, 3D printing materials, high-temperature refractory metals, soft magnetic materials and other non-ferrous metals, realizing vacuum bright annealing, stress relief annealing, etc.

Product Features

Heating elements: high-temperature nickel-chromium alloy, high-purity graphite or molybdenum
Insulation material: composite metal shield insulation structure (heat-resistant steel + stainless steel), rigid graphite felt, composite metal shield insulation structure (molybdenum + stainless steel)
Cooling medium: high-purity nitrogen or high-purity argon
Compact structure, high degree of automation, environmentally friendly and energy-saving
Safe and stable operation; the system supports fault self-diagnosis, audible and visual alarms, as well as corresponding interlock protection functions
Optional configurations: high vacuum system and customized effective zone dimensions as specified by customers

Specification

Model	Effective Zone (mm)	Loading Capacity (kg)	Temperature Uniformity (°C)	Pressure Rise Rate (Pa/h)	Max. Temperature (°C)	Heating Power (kW)	Ultimate Vacuum Degree (Pa)	Gas Quenching Pressure (bar)
ZTH-40	450×300×300	100	±5	0.5	1320	40	5×10⁻³ or 4×10⁻¹	2
ZTH-80	600×400×400	200	±5	0.5	1320	80	5×10⁻³ or 4×10⁻¹	2
ZTH-120	750×500×500	300	±5	0.5	1320	120	5×10⁻³ or 4×10⁻¹	2
ZTH-150	900×600×600	500	±5	0.5	1320	150	5×10⁻³ or 4×10⁻¹	2
ZTH-200	1200×600×600	800	±5	0.5	1320	200	5×10⁻³ or 4×10⁻¹	2
ZTH-300	1500×800×800	1500	±5	0.5	1320	300	5×10⁻³ or 4×10⁻¹	2

(All-Metal Hot Zone Furnace)

(Graphite Hot Zone Furnace)

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
