Product description

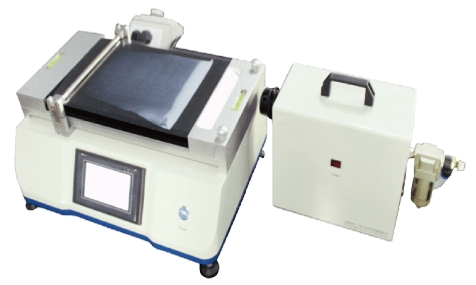

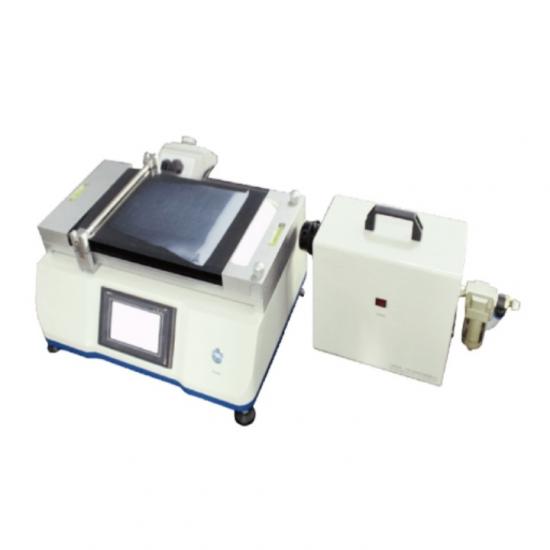

The KT-200B vacuum adsorption coating machine is used to prepare uniform traceable coating films (manual coating films are often not coordinated, especially between different operators, which makes the comparison of samples difficult and even unreliable), and its reproducibility is good. Because the factors that affect the coating are the shear rate and the weight added to the construction tool. The instrument uses a precisely controlled wire rod or film applicator that moves back and forth at a selected speed. Because the test paper is smoothly adsorbed on the sucker and the shear rate and weight applied to the construction tool remain unchanged, the reproducibility of the coating is greatly improved.

Product characteristics

KT-200B vacuum adsorption coater is an automatic coating machine that integrates the technology of similar foreign products. Compared with other domestic products, it has the following characteristics:

1) Wide range stepless speed regulation: 10~999mm/min

2) High precision linear guide rod + DC brushless motor, making the coating speed more stable

3) The vacuum pump is external, avoiding the jitter caused by the traditional machine (vacuum pump built-in) structure when coating film.

4) Carefully designed coated bracket, more simple and convenient operation, and can arbitrarily increase the support load to adapt to the flexible test plate

5) High hardness, high flatness (the entire platform error is less than 5 microns) aluminum oxidation vacuum suction platform

6) Vacuum suction platform optimization design, the adsorption force distribution is highly uniform

7) Set the starting point of the coating at will to adapt to different sizes of substrates.

8) Four kinds of coating distance can be selected

9) Optional wire rod, adjustable doctor blade and other coating tools (total length 240mm)
