Perovskite Solar Cell Assembly Line Speed Adjustable Spin Coater with Vacuum Chuck

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

Item No.:
TMAX-JW-A6
Certificate:
CE Certified
Warranty:
1 Year limited warranty with lifetime support

Product Details

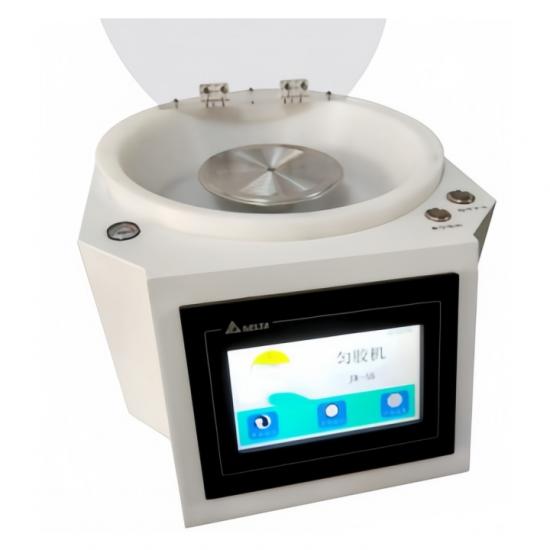

Perovskite Solar Cell Assembly Line Speed Adjustable Spin Coater with Vacuum Chuck

Product characteristics

a. Substrate size range :φ20mm-φ150mm

b. 7 inch full color touch screen, advanced PLC control, set a key start button, easy to operate;

c. Single step and multi-step (10 groups of 10 steps) glue operation;

d. Industrial motor, smooth rotation, stable operation;

e. Solvent PC transparent cover; Pelvic PP material, corrosion resistance;

f. The vacuum pump and the spin coater work synchronously, the spin coater rotates, the vacuum pump starts, the spin coater stops, and the vacuum pump stops;

g. Proprietary anti-blocking design for easy cleaning.

Technical parameter

Overall dimension	460mm(D)370mm(W270mm(H)
Standard two vacuum chucks (optional two)	φ20mm-φ150mm suction cups (up to 6 inches of substrate)
Speed adjustable range	0-10000RPM
Deceleration adjustable range	1000-3000RPM
Speed resolution	1RPM
Rotation time range	1-5000s
Controllable range of acceleration	100-5000RPM
Vacuum input	0.06-0.09Mpa, minimum vacuum flow 15L/Min
Vacuum connection	The outer diameter of the rear panel outlet is 6mm
Power input	220V 150W
Program control	Programmable 10 groups of 10-step programs
Size of opening on basin	φ350 mm
