Perovskite Dual-Shaft Compact Planetary Vacuum Mixer Machine Used in Photovoltaic Industry

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

Item No.:
TMAX-XJB
Certificate:
CE Certified
Warranty:
1 Year limited warranty with lifetime support

Product Details

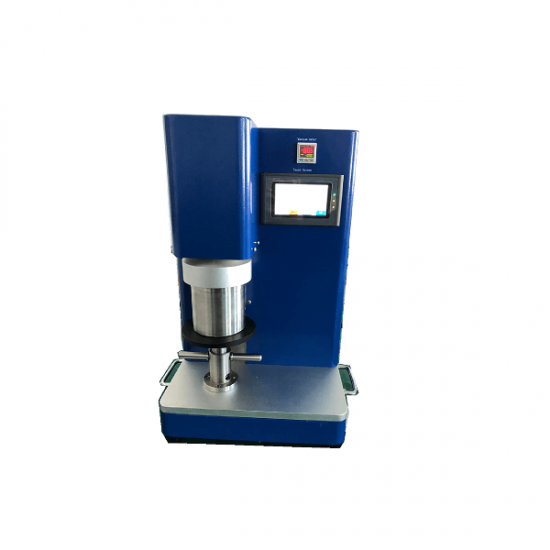

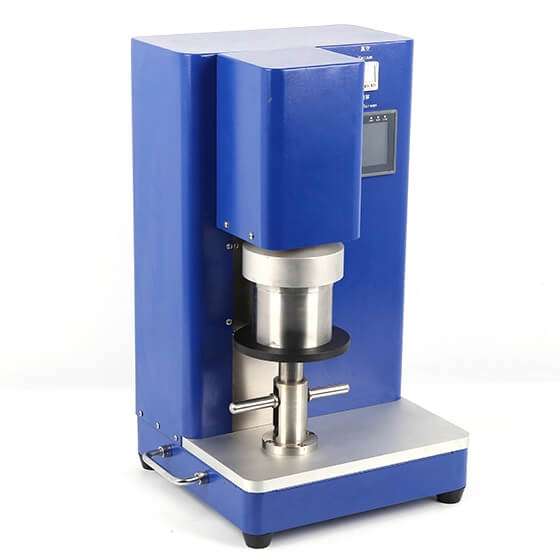

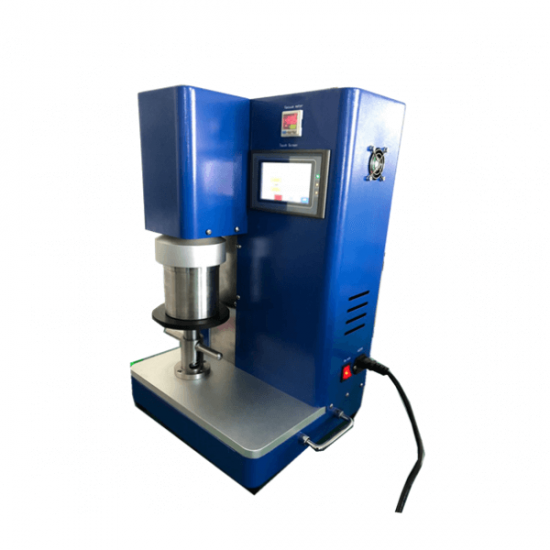

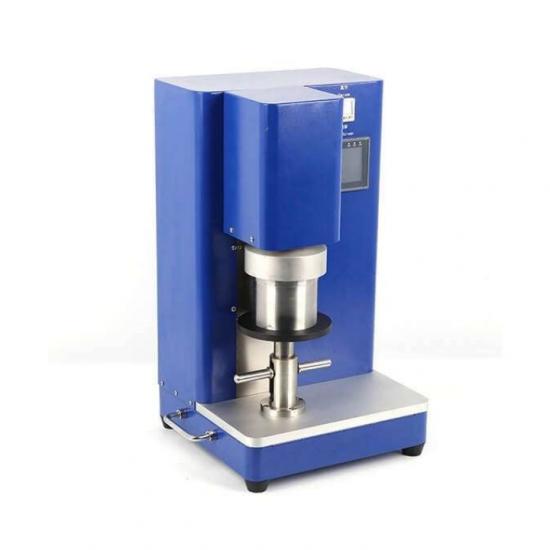

Perovskite Dual-Shaft Compact Planetary Vacuum Mixer Machine Used in Photovoltaic Industry

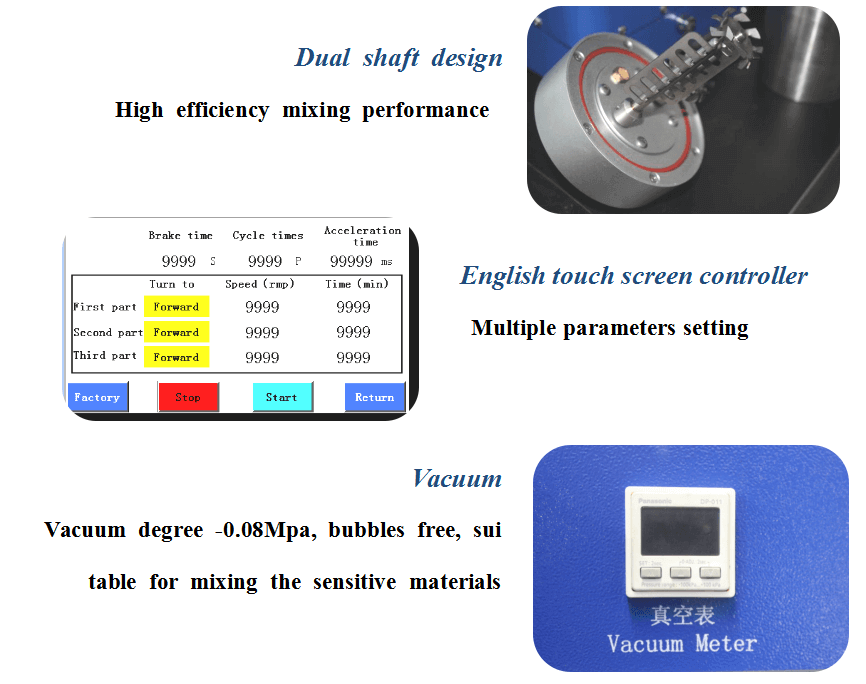

TMAX-XJB is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing gas bubble, which can vacuum the mixing container to -0.08 MPa. It is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab. For full details about dual shaft mixer here.

SPECIFICATIONS:

Voltage Input & Power	One UL listed 100-240 VAC IN
Rotary Speed	0 - 600 rpm

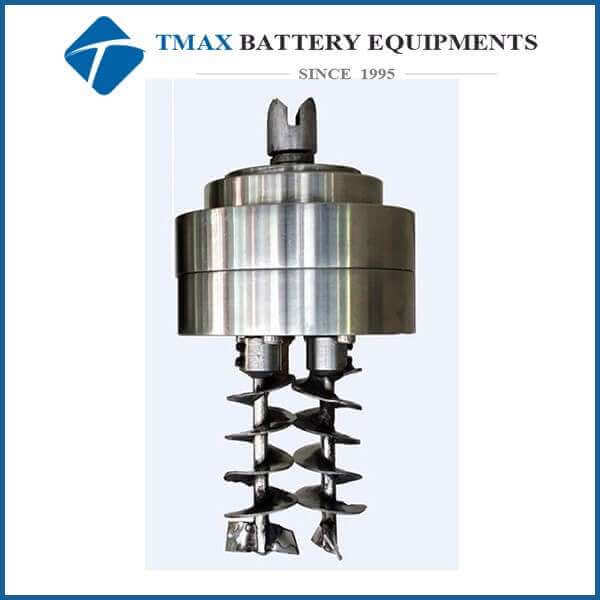

Mixing Container	1. One 500 mL stainless steel vacuum sealed container is included. 2. Dual helical ribbon mixing blades are built on the lid of the container.
Vacuum Pump	Built-in single stage vacuum pump Vacuum Level: -0.08 MPa

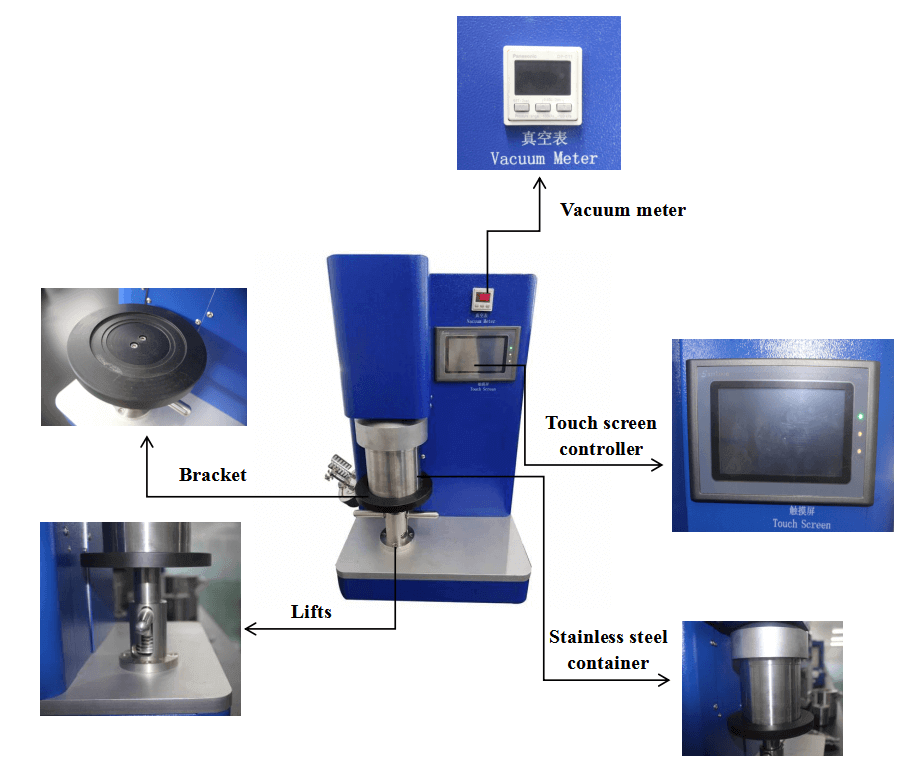

Contol Panel	1. Color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off 2. Mixing Time: 0 - 600 minute 3. Mixing Speed: 0 - 600 RPM and 3 segments programmable 4. Note: Max. mixing speed depends on slurry viscosity. Max.10000 mPa.s is allowed at 600 rpm. Lower speed will be required for more sticky slurry
Timing Range	0 to 120 minutes for built-in mechanical timer

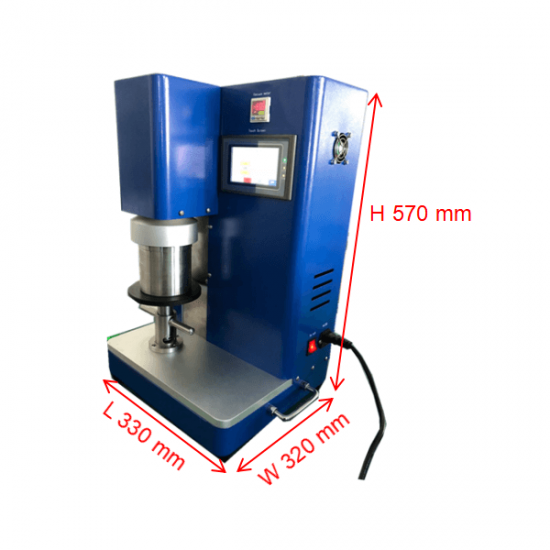

Dimensions	330 mm x 320 mm × 570 mm
Compliance	CE Certified
Warranty	One years limited warranty with lifetime technical support
Net Weight	40 kg (88 lbs)
