Laboratory Small Vacuum Dryer Placeable Glove Box for Perovskite Research

Laboratory Small Vacuum Dryer Placeable Glove Box for Perovskite Research

Product introduction

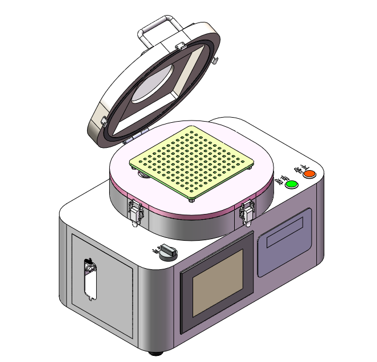

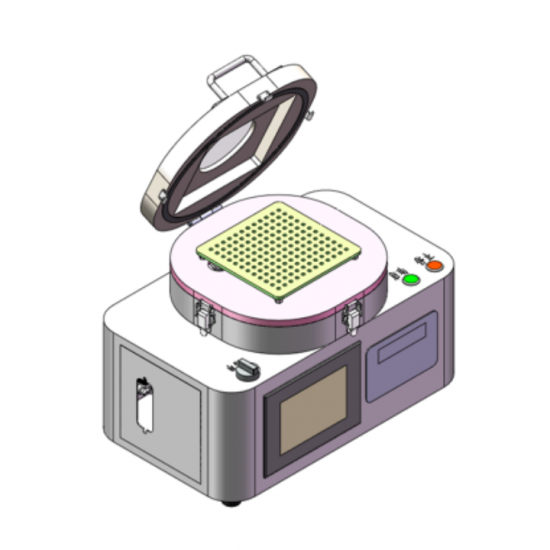

KT-CM150 vacuum dryer is a small desktop device, working principle: accelerate solvent volatilization under rapid vacuum pressure, assist the physical process of film crystallization, rapid vacuum drying of various substrate coating materials. The advantages are good film uniformity, rapid solvent volatilization, high stability, and can be applied to the auxiliary film forming process of perovskite batteries after coating.

Product characteristics

a. Vacuum chamber: 304 stainless steel is used as the chamber to increase the safety and reliability of the chamber, and the cavity cover is left with a window to facilitate the observation of the film forming process; The sealing ring is sealed with fluorine glue to improve the sealing of the chamber.

b. Vacuum system: High power mechanical pump pumping rate can reach 40-60m3/h, the ultimate pressure can reach 5*10-1Pa.

c. Equipment size: The equipment covers a small area, can be placed on the desktop or glove box (KF40 interface), suitable for laboratory use, easy to operate.

Technical parameter
