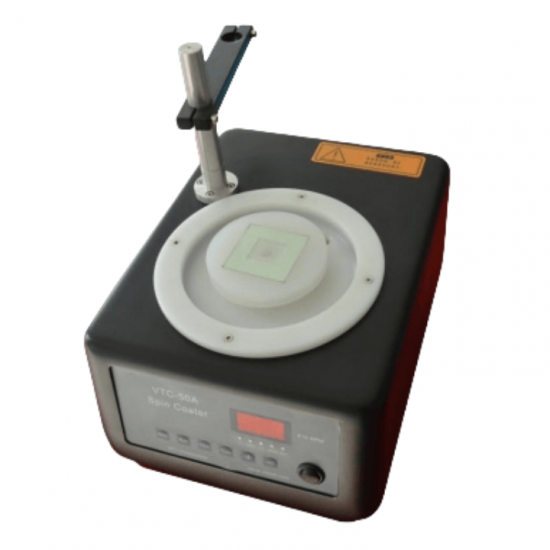

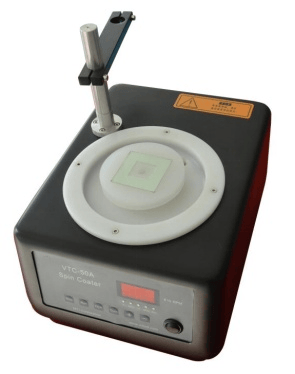

Lab High Speed 500rpm-8000rpm Acceleration Adjustable Benchtop Spin Coater  with Two-step Coating Program

Product introduction

The power supply system of VTC-50A rotary coating machine adopts the mode of independent power supply for the motor part and the control part respectively, and the speed regulation system adopts the single-chip microcomputer with high anti-interference to control, making the revolution number in the range of up to 1000-8000RPM is very stable. The film coating machine is provided with two stages at work, respectively, low speed time T1 stage and high speed time T2 stage, the film liquid is gradually dispersed at the low speed stage to complete the glue injection process, and the film liquid is evenly dispersed on the surface of the substrate at the high speed stage to form a film of uniform thickness to complete the process of leveling the glue, before the leveling time is set. When the homogenizing time is over, the machine automatically stops running, and the entire process of coating is over. VTC-50A rotary coating machine is mainly suitable for the use of liquid, colloidal body, movable paste and other film materials, which can provide controllable high-speed revolution in an instant, and quickly make the liquid, colloidal body and other materials uniformly form a film on the substrate. The sample is fixed by the polypropylene sample chuck with grooves. According to the shape and size of the substrate, grooves of different shapes and sizes can be opened on the template of random distribution, which is convenient to use and simple to operate, and has no damage to the substrate. The machine starts quickly, the number of revolutions is stable, which can ensure the uniformity and consistency of the film thickness. In addition, on the installation structure, shock absorption measures are taken to make the noise during operation is very low. The equipment is simple to operate, easy to clean, and small in size, so the equipment is widely used in colleges and universities and scientific research institutes.

Main feature

1.With cast aluminum shell structure and acrylic top cover, the coating process can be clearly observed.

2.Adopted a high anti-interference single chip computer for control, running smoothly at high speed.

3.English operation interface.

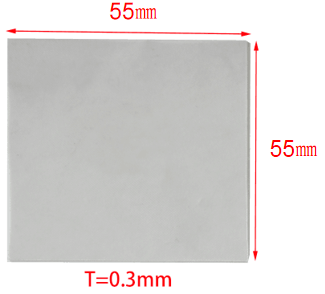

4.The sample is fixed with a special polypropylene sample chuck, without vacuum adsorption or bonding; The fixing method is simple, does not deform the substrate and does not have any damage to the substrate. According to the shape and size of the substrate, slots of different shapes and sizes can be opened in the center of the template to fix the substrate.

5.The process of glue injection and blending is controlled in stages to ensure the uniformity of the film layer after coating.

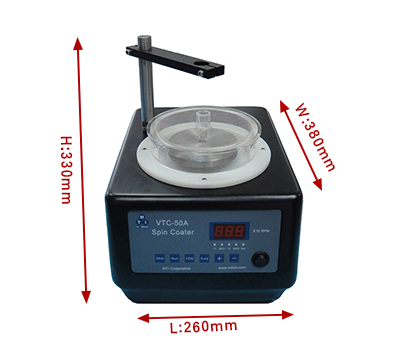

Technical parameter

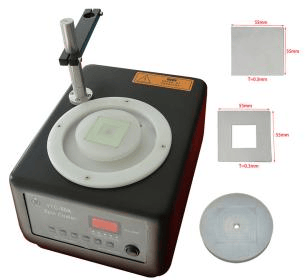

Standard fittings

Optional fittings

PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
