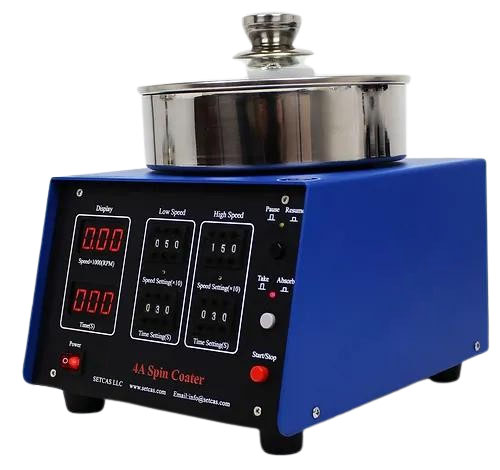

Laboratory Desktop High Speed Stability Spin Coater of Manual Type

Contact Person：Gilia Ding

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna

Product Details

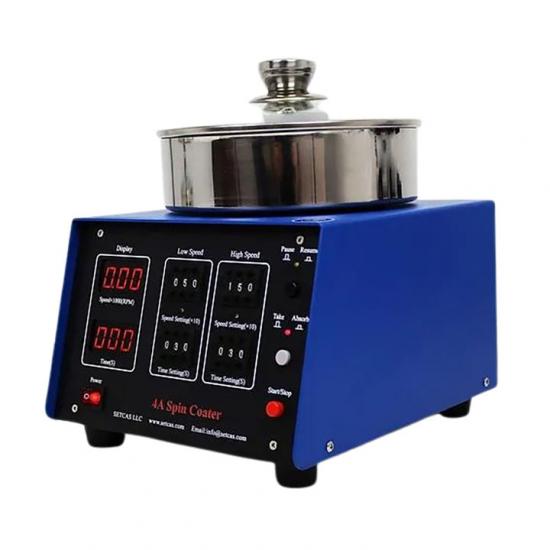

Laboratory Desktop High Speed Stability Spin Coater of Manual Type

Key Features：

1. Take/Absorb button controls the start and stop of the pump, reduce the pump noise pollution and extend the pump life.

2. With countdown display function: accurate timing, improve repeatability, and ensure the consistency of film thickness in multiple batches.

3. Take/Absorb button and Start/Stop button interlock, prevent the substrate flying out.

4. Prevent the process chemicals and solvents contact with the motor.

5. Support two user-defined program steps for each recipe.

6. Set speed and time with the keypad, convenient and accurate.

7. Pause/Resume button control the pause and resume of the spin.

8. Take/Absorb button controls the start and stop of the pump, reduce the pump.

Spin Coater Specifications

Substrate size	5mm to 100mm（ 4 inches）
Plate holder type	Specially designed plate holder to prevent glue from entering
Low Speed range	500-8500rpm
High Speed range	1000-8500rpm
Spin time	0-999s
Dual LED digital display	1. Speed display,2. Countdown time display.
Control method	Set speed and time with the keypad
Motor speed stability	±1RPM
Spin coating uniformity	±1%
Operating voltage(Spin Coater)	AC100-250V, single phase, 50/60Hz
Operating voltage(Pump)	AC220V(Standard) AC110V(Optional)
Pumping speed	≥60L/MIN
Max vacuum	-85KPA
Sound Level	≤55db
Spin coater power	200W
Pump power	180W
Dimensions(Spin Coater)	210mm(W)X220mm(D)X160mm(H)
Dimensions (Pump)	185 x 100 x 210 mm (L x W x H)
Weight(Spin Coater)	10KG
Weight(Pump)	4.5KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
