Lab High Positioning Accuracy Visual Positioning Laser Marking Machine with Ultraviolet Laser

Lab High Positioning Accuracy Visual Positioning Laser Marking Machine with Ultraviolet Laser

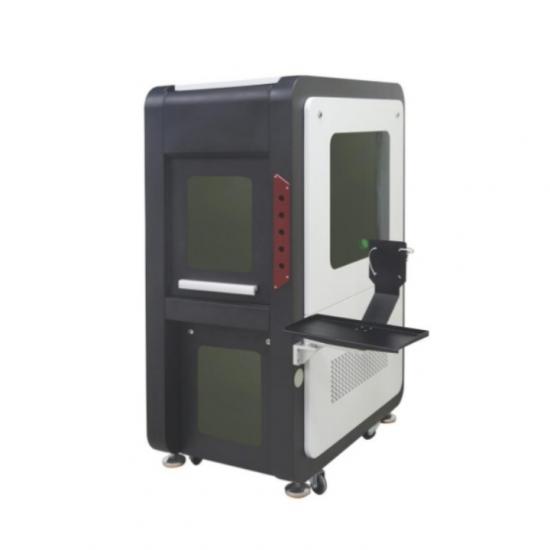

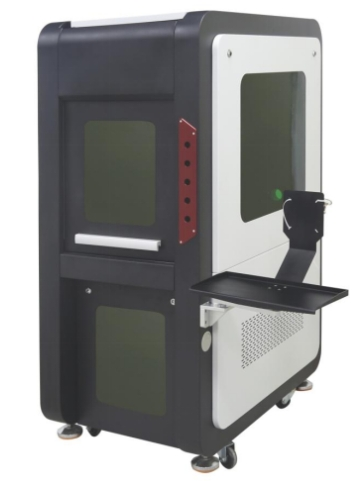

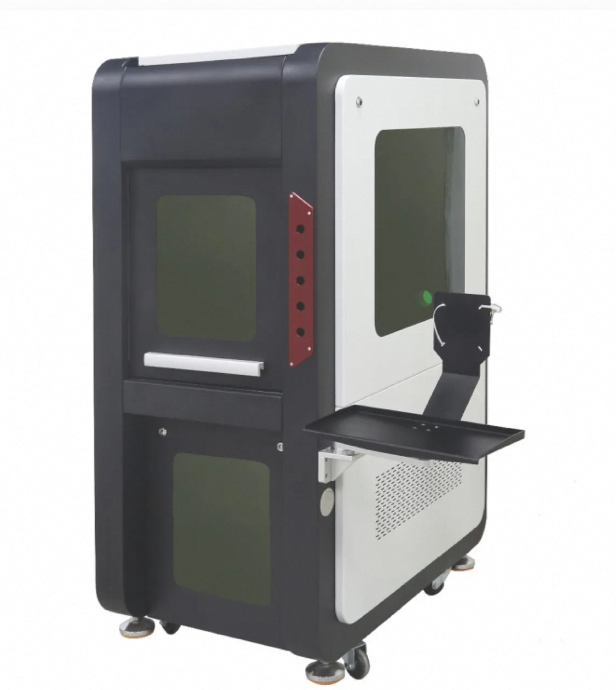

Product Name: Visual Positioning Laser Marking Machine

Model: KT-PZ Series

Features: Fast etching speed, high precision, equipped with high-precision CCD for Mark positioning, reducing human error and time in alignment, improving accuracy and saving processing time, no consumables, low energy consumption, wide applicability, stable beam quality.

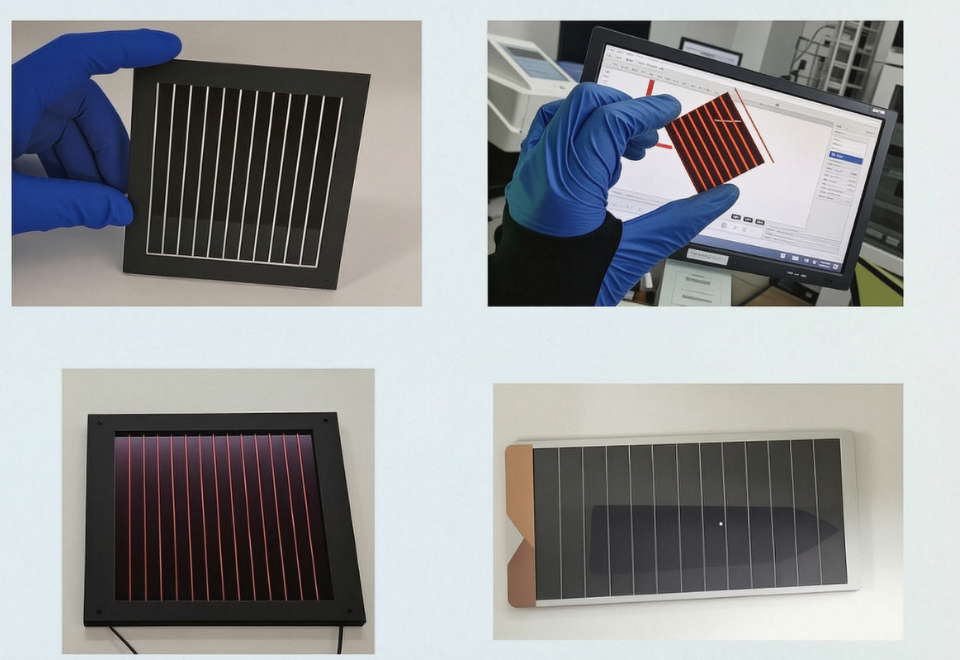

Applications: Laser etching and marking of materials such as perovskite cells and gallium arsenide germanium, capable of completing the P1 to P4 operations (gold, silver, ITO, FTO electrodes) of perovskite cells.

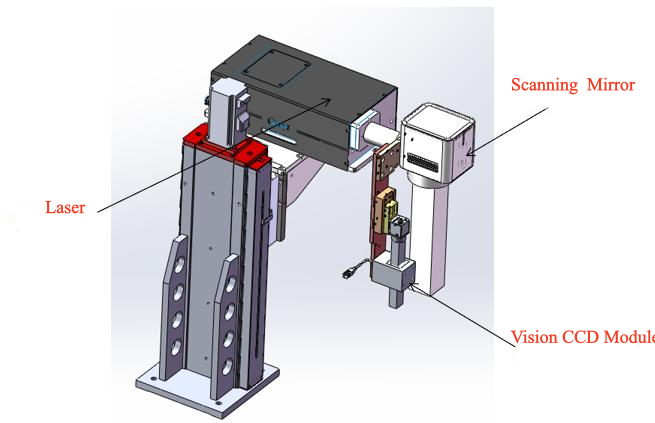

Visual Positioning Scheme Explanation:

1. Glass size: Max 150*150mm, position accuracy tolerance ±0.05mm

3. Positioning and grasping method: Using the servo module to move the Mark position to the camera's field of view area, grasp the Mark, and then through software algorithms, correct and position, and depict the corresponding graphics.

Technical parameters:

1) Laser power: 5W @ 30KHz

2) Wavelength: 355nm (ns)

3) Lifespan: 20,000 hours

4) Frequency range: 10 - 100kHz, pulse width < 15ns @ 30KHz

5) Etching size range: ≤ 150mm

6) Minimum line width: ≤ 0.03mm

7) Laser repetition accuracy: ± 0.01mm

8) CCD positioning accuracy ± 5μm.

9) Module positioning accuracy: ± 10μm

10) Maximum speed: 10,000mm/s

11) Equipment size: Length * Width * Height = 1100mm * 790mm * 1730mm

Equipment configuration:

1) Fully enclosed cabinet 1 set

2) Ultraviolet laser 1 set

3) German SCANLAB mirror 1 set

4) XY-axis moving module 1 set

5) High-precision industrial camera 1 set

6) Water cooling unit 1 unit

7) Dust removal device 1 set

8) Industrial control computer 1 unit
