Lab Benchtop Vacuum Coating Instrument for Optical Film, Organic Film And Metal Film

Lab Benchtop Vacuum Coating Instrument for Optical Film, Organic Film And Metal Film

Use:

KT-DM250 coating instrument is developed by our company for optical film, organic film and metal film. Especially suitable for universities, high-tech enterprises, scientific research institutes and other metal electrode coating for film layer research and devices, currently in the domestic testing laboratory, perovskite solar cell field and other applications.

Main technical parameters:

1. Vacuum chamber: ∅250mm*H400mm (standard 400mm high, if the LIFT-OFF process chamber is required, make it to 500);

2. Maximum plating workpiece diameter: 3-4 inches, with a pull-out sample table, the sample can be rotated; Also equipped with copper substrate sample table;

3. Limit vacuum: 5*10-1Pa (mechanical pump system), 8*10-5Pa (molecular pump system);

4. Pumping time: Atmospheric pressure ~6*10-4Pa less than 30min (molecular pump system);

5. Evaporation: Resistive evaporation electrode (1 pair)

6. Power: 2KW; Equipped with a digital display evaporation power supply.

7. Opening mode: Front door structure, easy to change wire and loading;

8. Vacuum system: Mechanical pump vacuum system (mechanical pump + molecular pump system optional);

9. Water cooling circulation system 0.5P;

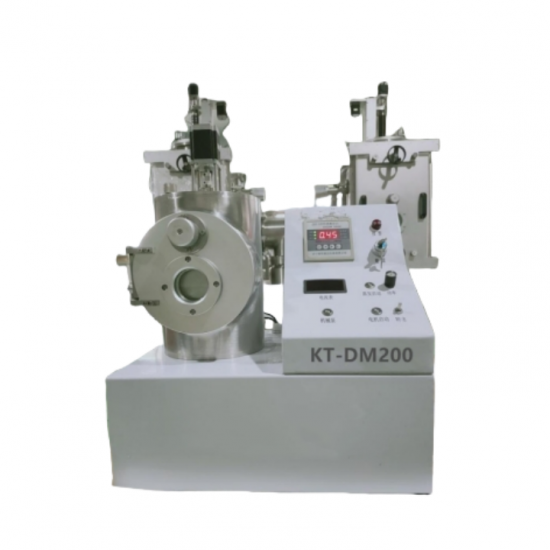

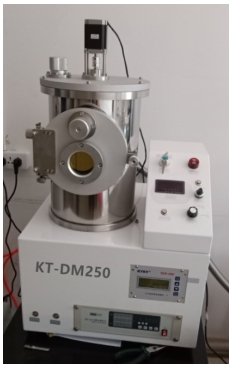

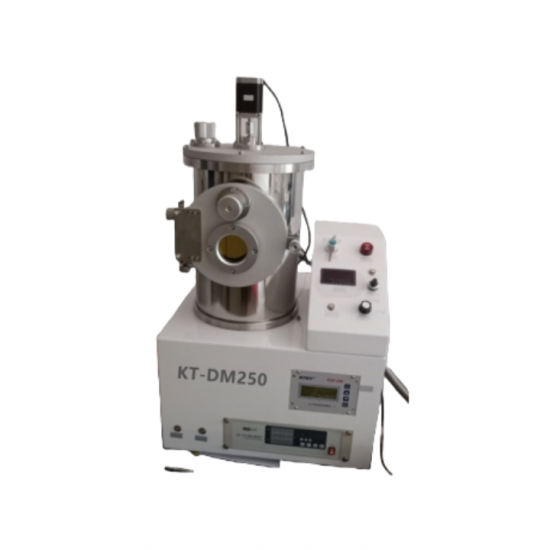

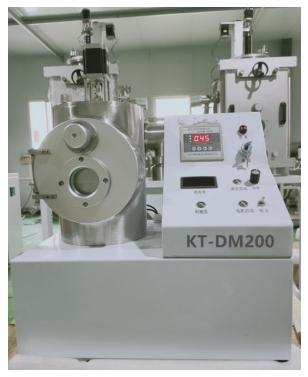

Reference picture
