Lab 45L Stainless Steel Inner Blower Drying Oven

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-WGL-45B
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
20 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

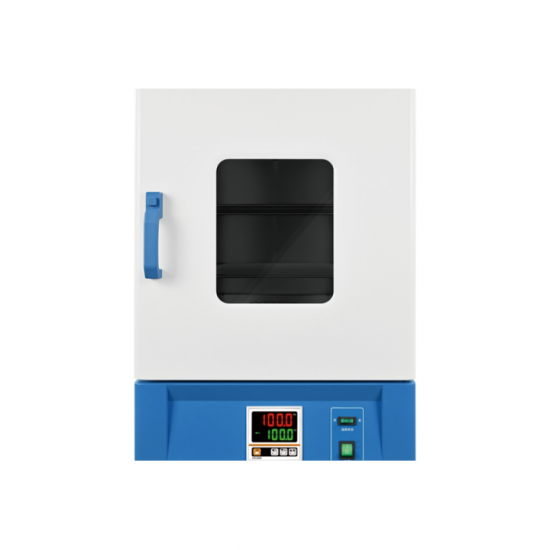

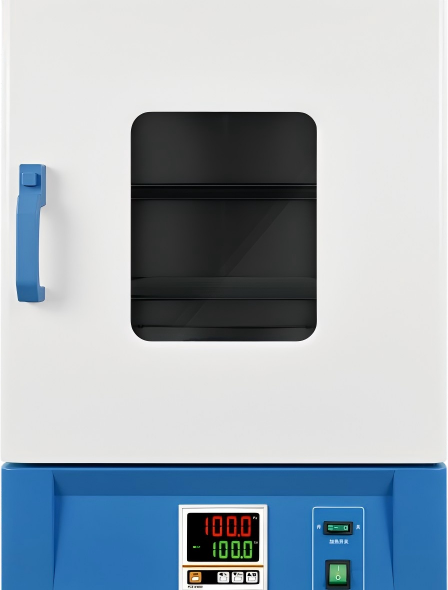

Lab 45L Stainless Steel Inner Blower Drying Oven

Product Introduction:

The product shell is made of high-quality galvanized sheet and processed to shape. The surface is treated with electrostatic spraying technology, which is corrosion-resistant and durable.

The inner liner of the box is made of high-quality stainless steel and is processed by machining. The four corners are arc-shaped, facilitating cleaning.

The large ergonomic design of the double-layer tempered glass observation window makes it easy to observe the experimental process inside the box.

The new synthetic silicone sealing strips are used, which are aesthetically pleasing and can operate at high temperatures for a long time, with a longer service life.

The unique hot air circulation system: it uses low-noise self-cooling fans to ensure a longer lifespan of the fan and more uniform temperature inside the box.

The intelligent digital PID temperature control instrument: it has functions such as timing, over-temperature alarm, temperature deviation correction, and temperature self-tuning.

Product parameters：

Product model	WGL-45B
Volume	45L
Rated power supply	220V 50HZ
Temperature control range	RT+10℃-300℃
Temperature resolution	0.1
Temperature fluctuation degree	±1℃（at 100℃）
Temperature distribution accuracy	±2.5%
Inner liner material	201 stainless steel inner liner
Shell material	Galvanized sheet (surface electrostatic spraying)
Insulation layer	Ceramic fibers
Heater	Stainless steel heating tube
Rated power	1000W
Exhaust hole (test hole)	35mm (top) one
Control Panel	LCD
Temperature sensor	PT100
Timer function	0-9999min
Operation mode	Fixed-value operation, timed operation, automatic stop
Fan switch	Yes
Inner container dimensions (mm) (D×W×H)	360×350×350
Overall dimensions (mm) (D×W×H)	540×500×710
Packaging dimensions (mm) (D×W×H)	550×600×790
Standard/Maximum number of partitions	2/4
Partition spacing	60mm
Partition load-bearing capacity	16kg
Gross weight	38kg
Additional functions	Sensor deviation correction, over-temperature alarm, PID self-tuning for temperature overshoot
Optional functions	Programmable control instrument, LCD display instrument, printer, 485 interface, USB interface, SMS alarm
