Laboratory Four Drums Electrical Round Vacuum Drying Oven

Laboratory Four Drums Electrical Round Vacuum Drying Oven

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-JK-ZKHX-AR4
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    20 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Laboratory Four Drums Electrical Round Vacuum Drying Oven


1 The Round Vacuum Oven is dedicated to the Li-ion battery electrode drying process for producing. The vacuum oven working chamber is equipped with cylindrical cantilever, can hang the whole roll electrode, with maximum bearing weight up to 380 kg.

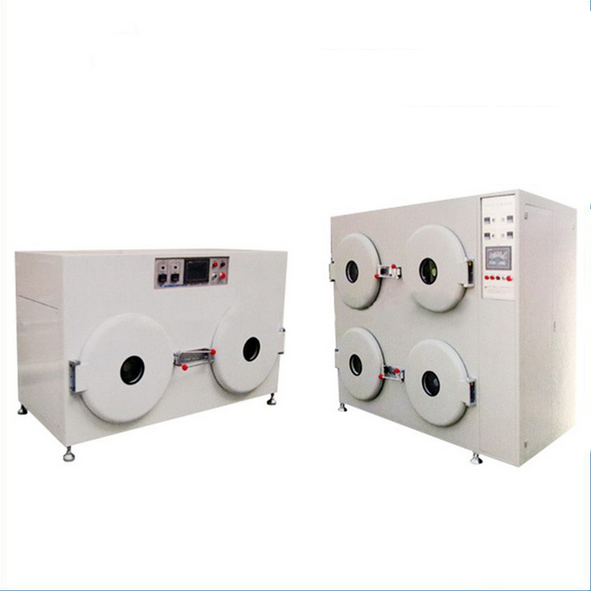

2 The TMAX-JK-ZKHX-AR4 Round vacuum oven is equipped with four drums, you can also choose single drum, two drum according the battery production line output.

Model

Four Drum Round Vacuum Oven   TMAX-JK-ZKHX-AR4

Working Voltage

3phase, 380V

Max. Power Consumption

4.5KW*4

Temperature range

RT-150 For battery material and electrode baking, with accuracy≤±1

Vacuum degree

0~-0.098Mpa, Can maintain limited vacuum degree ≥96% after 24hours

Working chamber size

Dia 550*750, can customized according request

Product Dimensions

(H*W*D)

1850*2280*1000mm

Air supply

Vacuum :-0.095~-0.1Mpa

Compressed air :0.4~0.5Mpa

Dry air :0.1~0.2Mpa

Temperature increase speed

From RT 25 to 80 need about 25min

Heating mode

Electric heating

Working chamber material

SUS stainless steel

Warranty

One year limited warranty with lifetime support



Four Drums oven

 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
