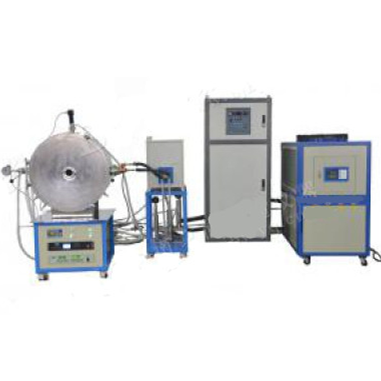

Lab 2KG Vacuum Suspension Melting Furnace For Titanium Alloys And Active Metals

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-VLF
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Lab 2KG Vacuum Suspension Melting Furnace For Titanium Alloys And Active Metals

Vacuum induction levitation melting furnace is to split water cooled copper crucible put in a strong alternating magnetic field, using induction eddy current heating the water cooled copper crucible metal melting, rely on electromagnetic force makes the molten metal does not have close contact with water cooled copper crucible.

This prevents the crucible from polluting the materials needed for smelting, and thus can smelt high purity metal materials.

The liquid alloy in the water-cooled copper crucible can also be injected into the ingot mold by rotating the molten metal.

The vacuum suspension melting furnace is suitable for the smelting of active metals such as titanium zirconium and rare earth materials, and the smelting and precision casting of titanium alloys.

It is mainly used in the production of high purity metal materials, semiconductor monocrystalline materials, high melting point alloys and 3D printing.

Detailed technical parameters

ZLF vacuum induction melting furnace	Model		VLF-1 VLF-2 VLF-3 VLF-4
	Maximum melting weight (in titanium liquid)		0.3KG 0.5KG 1KG 2KG
	Maximum heating temperature		1900 1900 1900 1900
	Floating power supply	Power supply	· IGBT suspension special power supply
		oscillation frequency	30-80KHZ
		· Max Input Power	60KW 80KW 120KW 160KW
		· maximum power output	54KW 72KW 108KW 144KW
		· Cooling water requirement	Power supply ≥0.2mpa, crucible ≥ 0.35 MPa
		oscillation frequency	15-30khz (frequency automatic tracking)
		induction coil	Special coil for suspension furnace
		· Input voltage	three-phase 380V 50HZ
		Crucible	Suspended special water-cooled copper crucible
		· o melting rate	10-15min
	Temperature Stabilizing		PID
	Cavity vacuum (diffusion pump unit) Plan B		< 5X10 -3Pa
	Broken even protection and display		Yes
	Over-temperature protection		Yes
	Over-current protection		Yes
	Undervoltage protection (water pressure)		Yes
	· Control precision		+/- 1~ 5 ℃(>600 ℃)
	Temperature detection mode		infrared thermometer
	Crucible rotation Angle		0-360°
			vacuum chamber can be connected with water cold crucible
	Viewing window size		Dia 90mm

· Vacuum Unit	input voltage	380V /220V
	Bellow	KF40X1000
	Vacuum baffle valve	KF40
	molecular pump Plan A	Molecular pump model	FJ620
		input voltage	220V
		Molecular pump inlet flange	DN160
		Molecular pump pumping rate L/S (for air)	600
		Molecular pump limit pressure(Pa)	6×10-7
		· Cooling mode	Water cooling
		ooling water pressure(MPa)	0.1-0.2
		cooling water temperature	<25℃< p="">
