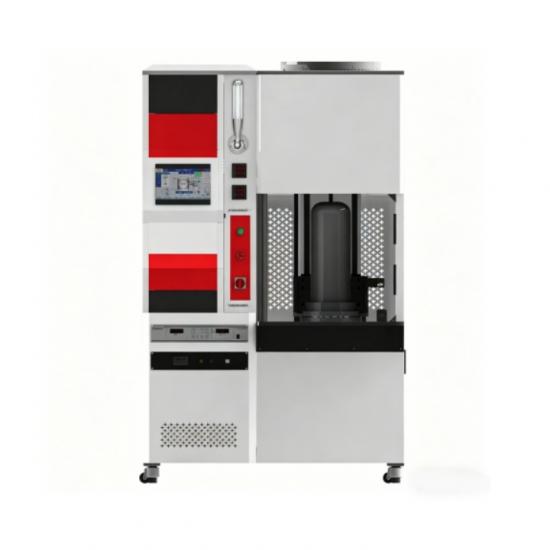

Lab 1080C Single Chamber Vertical Vacuum Brazing Furnace

Equipment Overview

The vertical vacuum brazing furnace is a research-grade equipment specially designed for small-batch, high-precision brazing processes. It features a vertical single-chamber structure with horizontal bottom loading and tungsten filament infrared lamp ring heating. It is suitable for new material R&D, process optimization, and welding of small precision parts, cutting tools, and medical surgical forceps.

Product Features

• Gravity-assisted flow design in vacuum: Workpieces are placed vertically, and the brazing filler naturally fills the gaps under gravity.

• Heating element: Carbon fiber lamps, providing uniform ring-shaped heating with a maximum temperature of 1080℃.

• Rapid cooling: After brazing, the heating furnace body moves upward, and surrounding fans automatically start to cool the vacuum furnace tube quickly.

• Multi-functionality: Supports multiple processes such as brazing and annealing.

Technical Specifications

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
