Compact Ceramic Jaw Crusher / Mill With Digital Size Control

Features

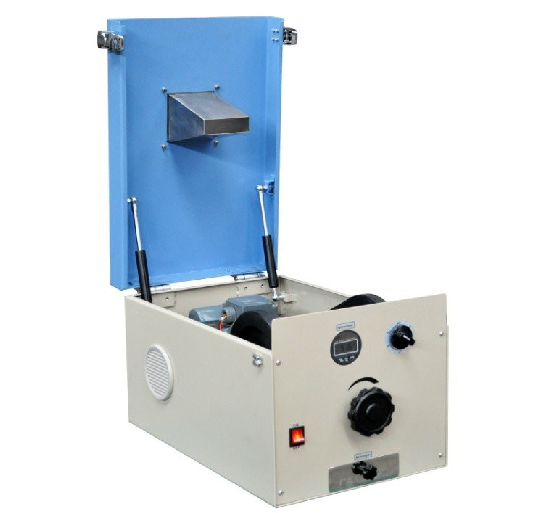

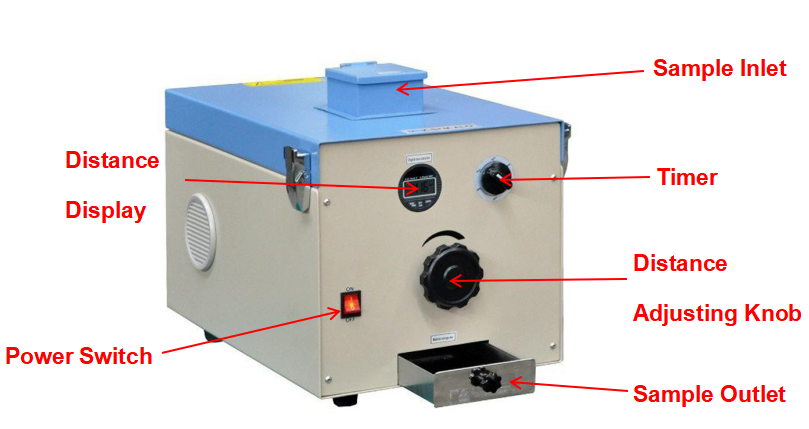

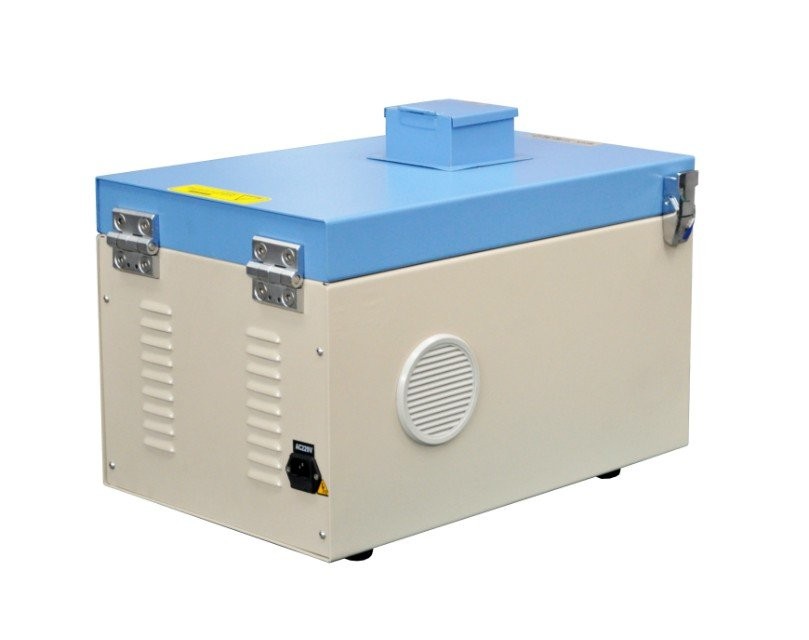

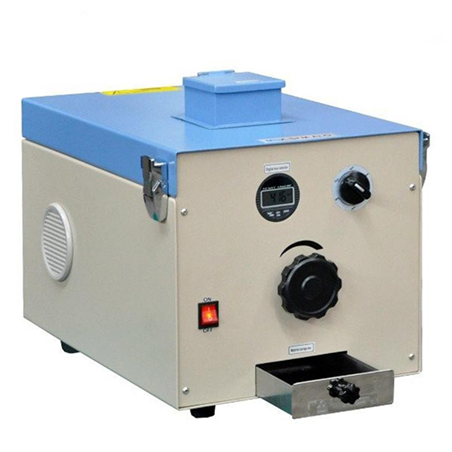

TMAX-SFM-ALO is a compact electric jaw crusher with adjustable digital crushing size controller.  Two jaw plates are made of high purity alumina to avoid metallic contamination while crushing materials. It is useful to break up sintered blocks prior to ball milling and saves the researcher labor and time.

Specifications

Working Voltage	208 - 240VAC 50/ 60 Hz, 500W (110 AC version will be included 800W transformer at $80 extra)
Crushing Speed	400 times per minute
Timer	0  to 60 minutes adjustable

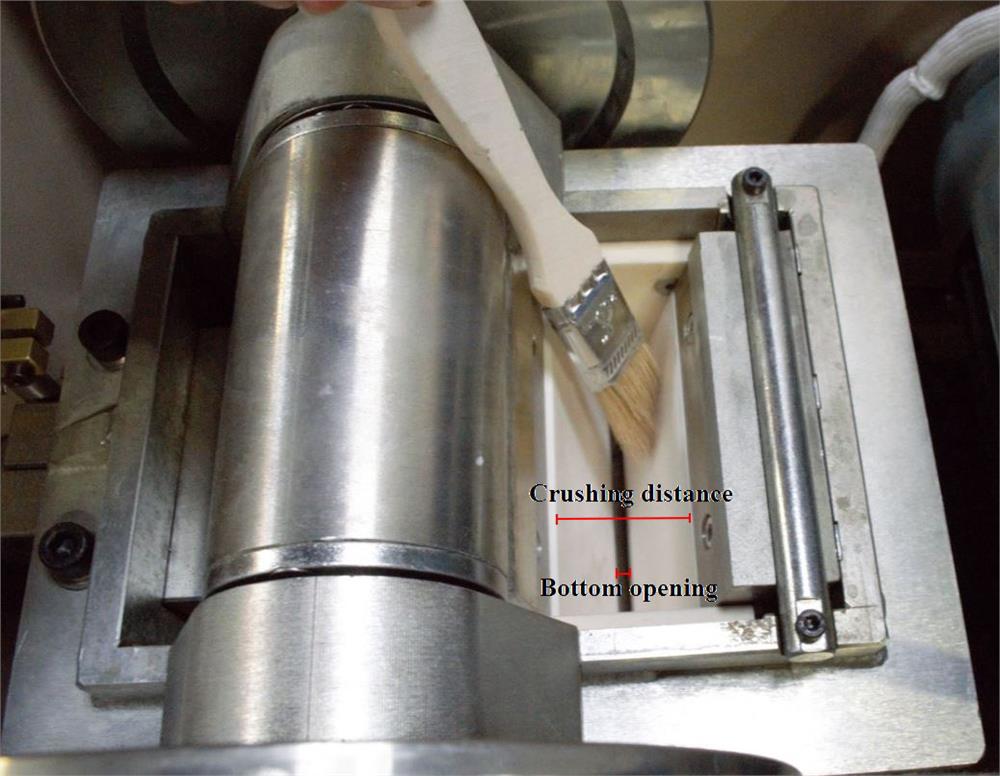

Jaw Plates	Two high purity alumina  plates Easy to clean. (The sample inlet and outlet are made of stainless steel and so you can clean with a brush.) 90mm x 25mm loading port

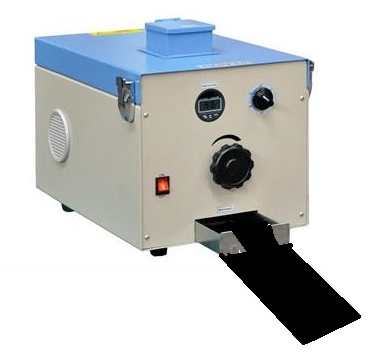

Crushing Size	Input: Material Hardness must be < Mohs 8 Sample size: 5 - 20 mm diameter or thickness ~ 200 g of input materials can be added at once Output:  Output size : 0.1 mm -  3 mm (adjustable via a digital micrometer). Crushing quantity:  ~ 200 g is accepted by underneath drawer each time. Use a slide plate instead of the drawer, continuous output of samples can be achieved with continuous feeding of input materials. ( Sliding plate is optional at $200 extra ) Output grain size depends on the material properties (Hardness, elasticity, etc.)
Net Weight	150 lbs
Shipping Weight	185 lbs
Dimensions	L325mm×W500mm×H310mm
Compliance	CE certified
Warranty	One year’s limited warranty with lifetime technical support









1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
