Acceleration Adjustable Lab Vacuum Spin Coater with Automatic Pick-up Alert Function

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

Product Details

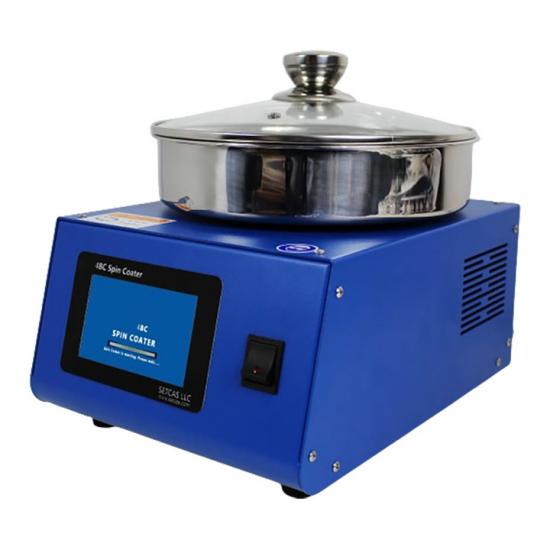

Acceleration Adjustable Lab Vacuum Spin Coater with Automatic Pick-up Alert Function

Spin Coater

Key Features：

1. Human machine interface 4.3 inch touch screen.

2. Prevent anti-flying piece protection and alarm.

3. Prevent anti-adhesive protection and alarm .

4. Automatic pick-up alert function.

5. Set data Unlimited group data, each group of 10 speeds

6. Optional disposable pot lining: easy to clean up the waste liquid after coating.

Product parameter

Applicable substrate	5-120mm silicon wafers and other materials (5 inches)
Film speed range	50-10000RPM
Acceleration range	10-10000RPM/S, adjustable
Coating time	The time can be set arbitrarily without limit
Man-machine interface	4.3 inch color touch screen
Coating cavity (material)	Stainless steel glue pot
Vacuum cups (material)	Aluminum alloy (free three sizes of suction cups, size 5-120mm customer choice)
Speed accuracy and stability	±1RPM
The uniformity of the glue	Plus or minus 1%
Direction of rotation	Reversible
Stylus	BAMBOO Resistance Pen (standard)
Set data	Unlimited group data, each group of 10 speeds(standard)
Every time	0-10000 seconds
Store data	Unlimited data
Gluing machine power supply port	AC100-250V
Vacuum pump power supply port	AC220V(standard) AC110V(optional)
Vacuum pump model	SC-310V oil-free vacuum pump
Vacuum pump pumping speed	≥50L/min
Vacuum pump noise	≤55DB
Vacuum pump minimum vacuum	-85KPA
Glue machine power	200W
Vacuum pump power	180W
Dimensions(Spin Coater)	210mm(W)X220mm(D)X160mm(H)
Dimensions(Vacuum pump)	185mm(L)100mm(W)210mm(H)
Homogenizer weight	10KG
Pump weight	4.5 KG
Relative humidity	< 85%
Ambient temperature	0 to 40 ℃
Warranty period	1 year
