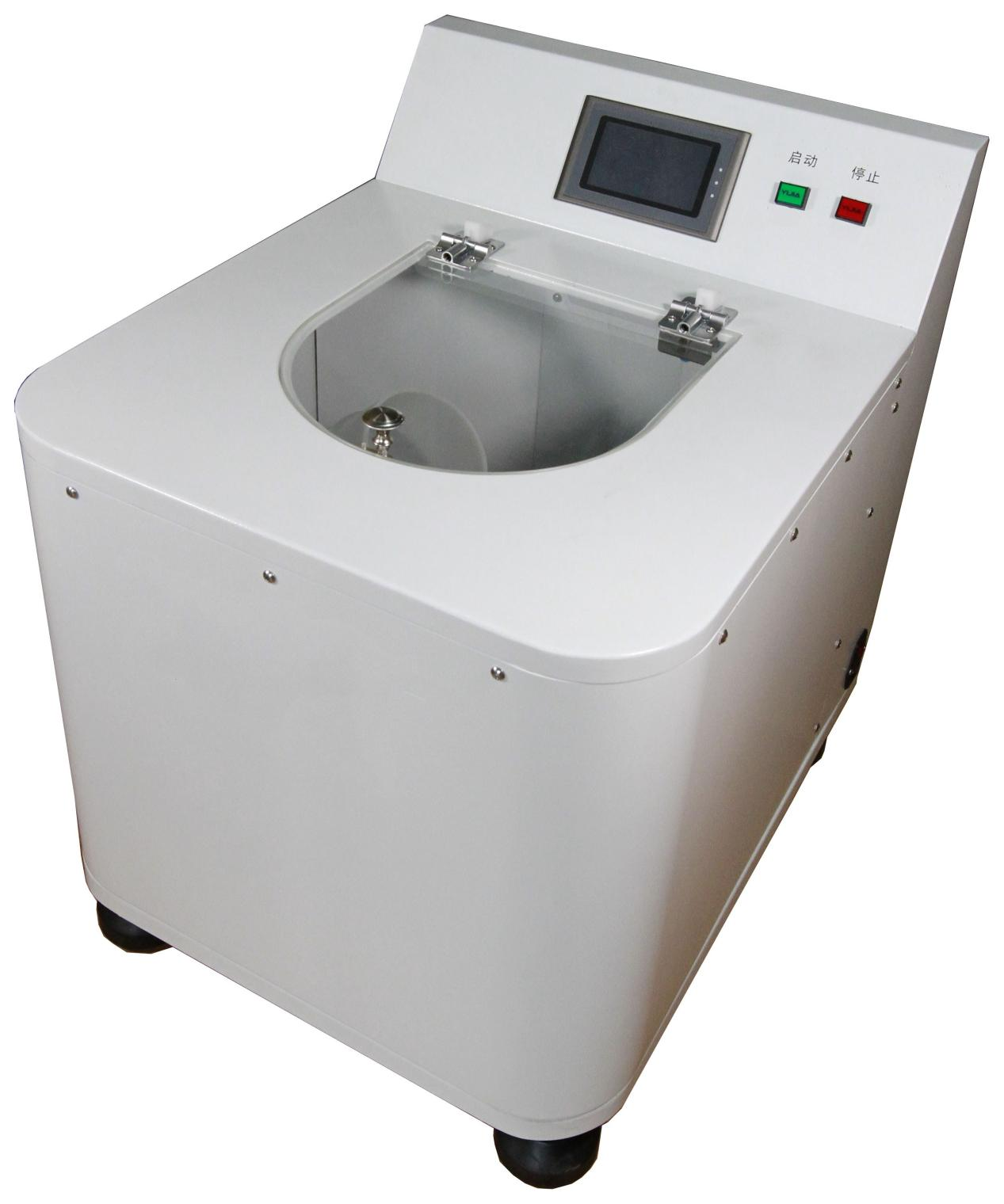

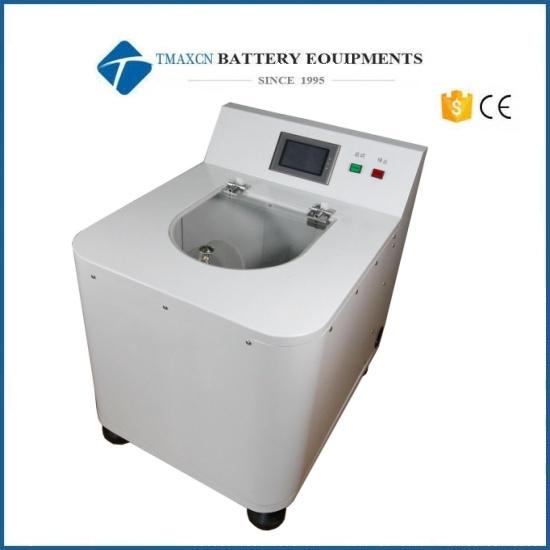

900ml Planetary Gravity Dual Cup Stepless Speed Regulation Stirring Deaerator

Model: TMAX-XXH-900S

Application: Suitable for dispersion, mixing and deaeration of multi-component materials (such as silica gel, multi-component epoxy resin, etc.).

Standard containers: 900 ml (HDPEφ104×124) or 300ml (HDPEφ 78*90); A 150ML syringe with a capacity of less than 55CC

Maximum processing capacity: ≤1000g; ≤450mL;

Revolution: 300-2000rpm stepless speed regulation. Users can input freely according to their actual needs and adjust by 1rpm.

Rotation: Constant speed ratio 0.76;

Setting time: 0 to 300 seconds × 5(a total of five steps), accuracy 1 second;

Parameter storage capacity: 5 groups;

Bearing: Japanese NSK bearing;

Control system: Human-machine dialogue, Chinese interface, touch screen operation;

Balance adjustment: Dual-cup configuration for balance;

Transmission method: Gear transmission;

Working principle: Axially rotating wingless centrifugal gravity mode;

Alarm device: Detection of the upper cover not being covered during operation;

Safety protection: The upper cover is locked during operation and stops working when the upper cover is opened.

Applicable temperature and humidity: 10 to 40 ℃ 20 to 80%RH (no fog-like moisture, that's fine);

Voltage: AC220V±5% "1-Phase;" 50 to 60Hz;

Power: The rated power of the main unit is 500w

External dimensions: L600×W500×H660mm;

Weight: 45 kilograms.

Equipment features: The self-rotation and revolution movements generate a centrifugal gravity of up to nearly 400G, providing powerful dispersion and defoaming. There are no spiral blades, enabling stirring and dispersion within the container. No cleaning is required and it will not contaminate the materials. It does not damage the properties of materials (especially fibrous materials); Human-computer interaction, convenient operation; An optimized design that is ultra-small, ultra-light and ultra-quiet.
